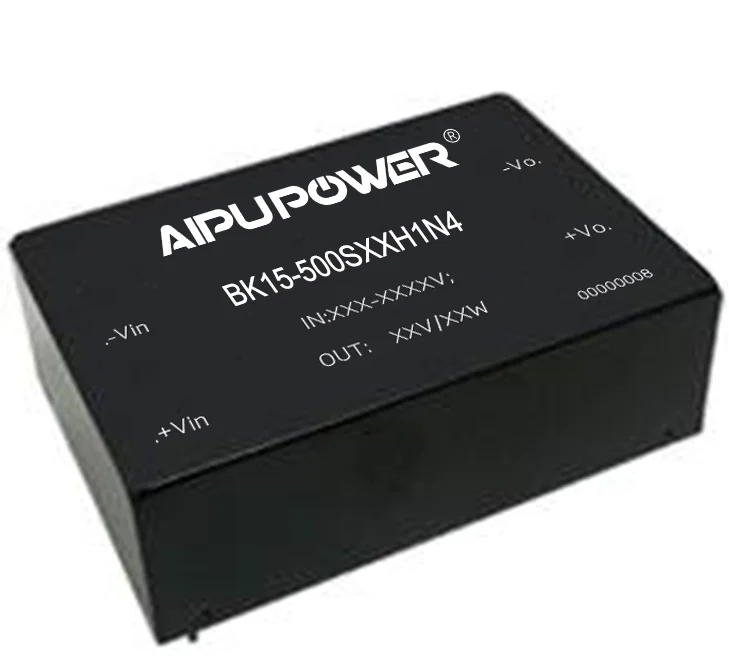

BK15-500SXXH1N4
BK15-500SXXH1N4 series power module power module, 3 model(s).
The BK15-500SXXH1N4 series is a family of power module power modules rated 15w with wide input 100-1000v.
- BK15-500S05H1N4: 5V / 3000mA output (15wW)
- BK15-500S12H1N4: 12V / 1250mA output
- BK15-500S24H1N4: 24V / 625mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| BK15-500S05H1N4 | 15W | 100-1000v | 5V | 3000mA | 4000 | 70*48*23.5 | DIP | 1 |
| BK15-500S12H1N4 | 15W | 100-1000v | 12V | 1250mA | 4000 | 70*48*23.5 | DIP | 1 |
| BK15-500S24H1N4 | 15W | 100-1000v | 24V | 625mA | 4000 | 70*48*23.5 | DIP | 1 |
| Total | 3 models in this series | |||||||
