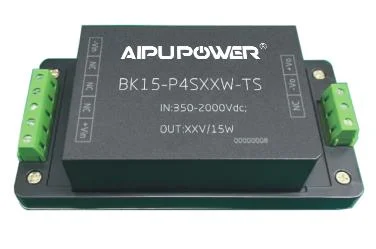

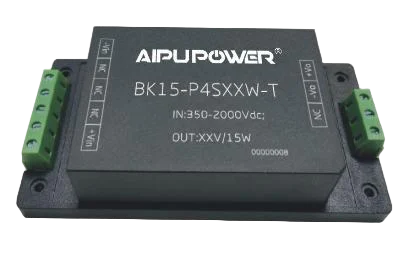

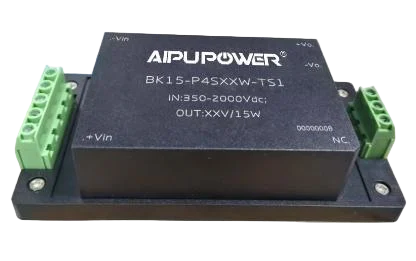

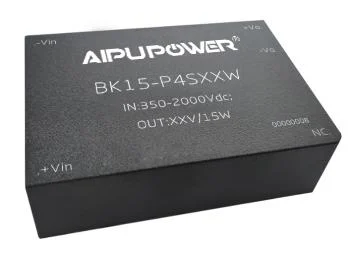

BK15-P4SXXW
BK15-P4SXXW series power module power module, 3 model(s).
The BK15-P4SXXW series is a family of power module power modules rated 15w with wide input 350-2000.
- BK15-P4S12W: 12V / 1250mA output (15wW)
- BK15-P4S15W: 15V / 1000mA output
- BK15-P4S24W: 24V / 625mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| BK15-P4S12W | 15W | 350-2000 | 12V | 1250mA | 4000 | 89.00x63.50x25.00 | DIP | 1 |
| BK15-P4S15W | 15W | 350-2000 | 15V | 1000mA | 4000 | 89.00x63.50x25.00 | DIP | 1 |
| BK15-P4S24W | 15W | 350-2000 | 24V | 625mA | 4000 | 89.00x63.50x25.00 | DIP | 1 |
| Total | 3 models in this series | |||||||
Loading preview…
The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.
|
Related products
Add to Quote
This product has multiple variants. The options may be chosen on the product page
BK150-800SXXGA1N6
Add to Quote
This product has multiple variants. The options may be chosen on the product page

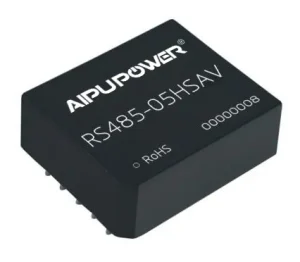

RS485-XXHSAV
