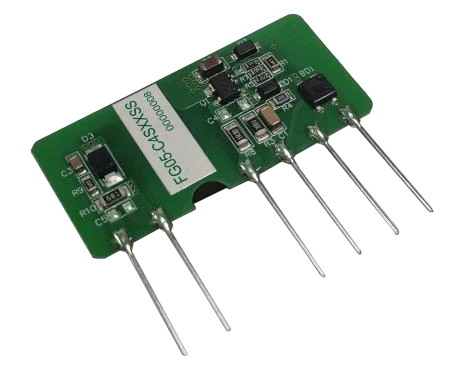

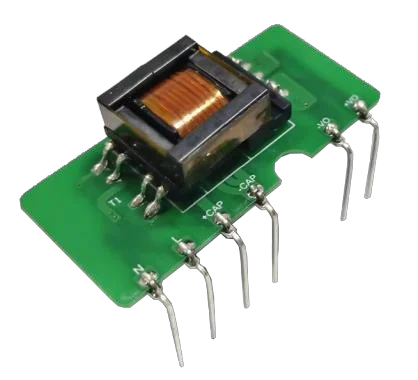

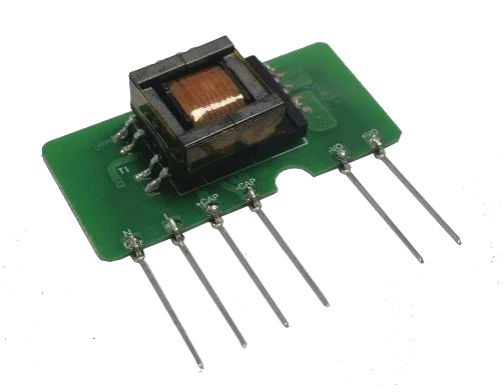

FG05-C4SXXSS
FG05-C4SXXSS series AC-DC open frame power module, 6 model(s).
The FG05-C4SXXSS series is a family of AC-DC open frame power modules rated 3.3w / 5w with wide input 85-305VAC/70-430VDC.
- FG05-C4S03SS: 3.3V / 1000mA output (3.3wW)
- FG05-C4S05SS: 5V / 1000mA output (5wW)
- FG05-C4S09SS: 9V / 556mA output
- FG05-C4S12SS: 12V / 416mA output
- FG05-C4S15SS: 15V / 333mA output
- FG05-C4S24SS: 24V / 208mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FG05-C4S03SS | 3.3W | 85-305VAC/70-430VDC | 3.3V | 1000mA | 3600vac | 41.0 x 19.0x 12.0 mm | open frame | 1 |
| FG05-C4S05SS | 5W | 85-305VAC/70-430VDC | 5V | 1000mA | 3600vac | 41.0 x 19.0x 12.0 mm | open frame | 1 |
| FG05-C4S09SS | 5W | 85-305VAC/70-430VDC | 9V | 556mA | 3600vac | 41.0 x 19.0x 12.0 mm | open frame | 1 |
| FG05-C4S12SS | 5W | 85-305VAC/70-430VDC | 12V | 416mA | 3600vac | 41.0 x 19.0x 12.0 mm | open frame | 1 |
| FG05-C4S15SS | 5W | 85-305VAC/70-430VDC | 15V | 333mA | 3600vac | 41.0 x 19.0x 12.0 mm | open frame | 1 |
| FG05-C4S24SS | 5W | 85-305VAC/70-430VDC | 24V | 208mA | 3600vac | 41.0 x 19.0x 12.0 mm | open frame | 1 |
| Total | 6 models in this series | |||||||
