QAXX3C-XXXXR3

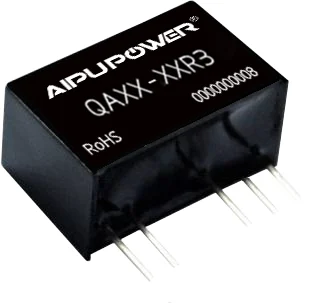

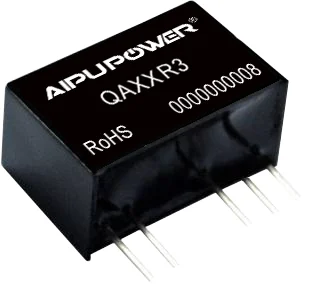

QAXX3C-XXXXR3 series power module power module, 14 model(s).
The QAXX3C-XXXXR3 series is a family of power module power modules rated 4.5-5.5W / 10.8-13.2W / 13.5-16.5W with wide input +15.
- QA053C-1505R3: -5V / +80/-40mA output (4.5-5.5W)
- QA053C-1803R3: -3.5V / +80/-80mA output
- QA053C-2003R3: -3.5V / +80/-80mA output
- QA053C-2004R3: -4V / +80/-40mA output
- QA123C-1502R3: -2.5V / +100/-100mA output (10.8-13.2W)
- QA123C-1504R3: -4V / +90/-90mA output
- QA123C-1803R3: -3V / +120/-120mA output
- QA123C-2005R3: -5V / +90/-90mA output
- QA153C-1504R3: -4V / +120/-120mA output (13.5-16.5W)
- QA153C-1802R3: -2.5V / +100/-100mA output
- QA153C-1803R3: -3V / +100/-100mA output
- QA153C-1805R3: -5V / +100/-100mA output
- QA153C-2004R3: -4V / +80/-40mA output
- QA153C-2005R3: -5V / +90/-90mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| QA053C-1505R3 | 4.5-5.5W | 4.5-5.5 | +15/-5 | +80/-40mA | 5000vac/6000vdc | 19.50× 9.80 × 12.50mm | SIP | 1 |
| QA053C-1803R3 | 4.5-5.5W | 4.5-5.5 | +18/-3.5 | +80/-80mA | 5000vac/6000vdc | 19.50× 9.80 × 12.50mm | SIP | 1 |
| QA053C-2003R3 | 4.5-5.5W | 4.5-5.5 | +20/-3.5 | +80/-80mA | 5000vac/6000vdc | 19.50× 9.80 × 12.50mm | SIP | 1 |
| QA053C-2004R3 | 4.5-5.5W | 4.5-5.5 | +20/-4 | +80/-40mA | 5000vac/6000vdc | 19.50× 9.80 × 12.50mm | SIP | 1 |
| QA123C-1502R3 | 10.8-13.2W | 10.8-13.2 | +15/-2.5 | +100/-100mA | 5000vac/6000vdc | 19.50× 9.80 × 12.50mm | SIP | 1 |
| QA123C-1504R3 | 10.8-13.2W | 10.8-13.2 | +15/-4 | +90/-90mA | 5000vac/6000vdc | 19.50× 9.80 × 12.50mm | SIP | 1 |
| QA123C-1803R3 | 10.8-13.2W | 10.8-13.2 | +18/-3 | +120/-120mA | 5000vac/6000vdc | 19.50× 9.80 × 12.50mm | SIP | 1 |
| QA123C-2005R3 | 10.8-13.2W | 10.8-13.2 | +20/-5 | +90/-90mA | 5000vac/6000vdc | 19.50× 9.80 × 12.50mm | SIP | 1 |
| QA153C-1504R3 | 13.5-16.5W | 13.5-16.5 | +15/-4 | +120/-120mA | 5000vac/6000vdc | 19.50× 9.80 × 12.50mm | SIP | 1 |
| QA153C-1802R3 | 13.5-16.5W | 13.5-16.5 | +18/-2.5 | +100/-100mA | 5000vac/6000vdc | 19.50× 9.80 × 12.50mm | SIP | 1 |
| QA153C-1803R3 | 13.5-16.5W | 13.5-16.5 | +18/-3 | +100/-100mA | 5000vac/6000vdc | 19.50× 9.80 × 12.50mm | SIP | 1 |
| QA153C-1805R3 | 13.5-16.5W | 13.5-16.5 | +18/-5 | +100/-100mA | 5000vac/6000vdc | 19.50× 9.80 × 12.50mm | SIP | 1 |
| QA153C-2004R3 | 13.5-16.5W | 13.5-16.5 | +20/-4 | +80/-40mA | 5000vac/6000vdc | 19.50× 9.80 × 12.50mm | SIP | 1 |
| QA153C-2005R3 | 13.5-16.5W | 13.5-16.5 | +20/-5 | +90/-90mA | 5000vac/6000vdc | 19.50× 9.80 × 12.50mm | SIP | 1 |
| Total | 14 models in this series | |||||||
