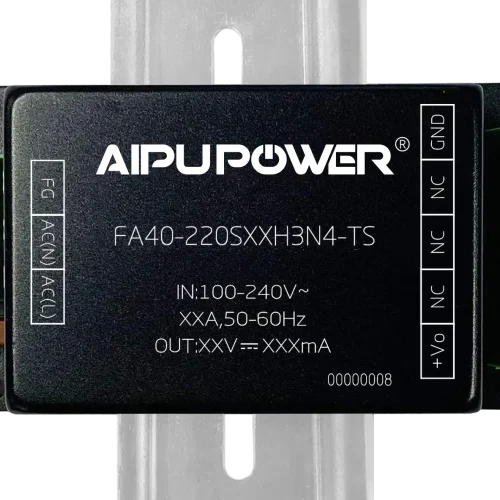

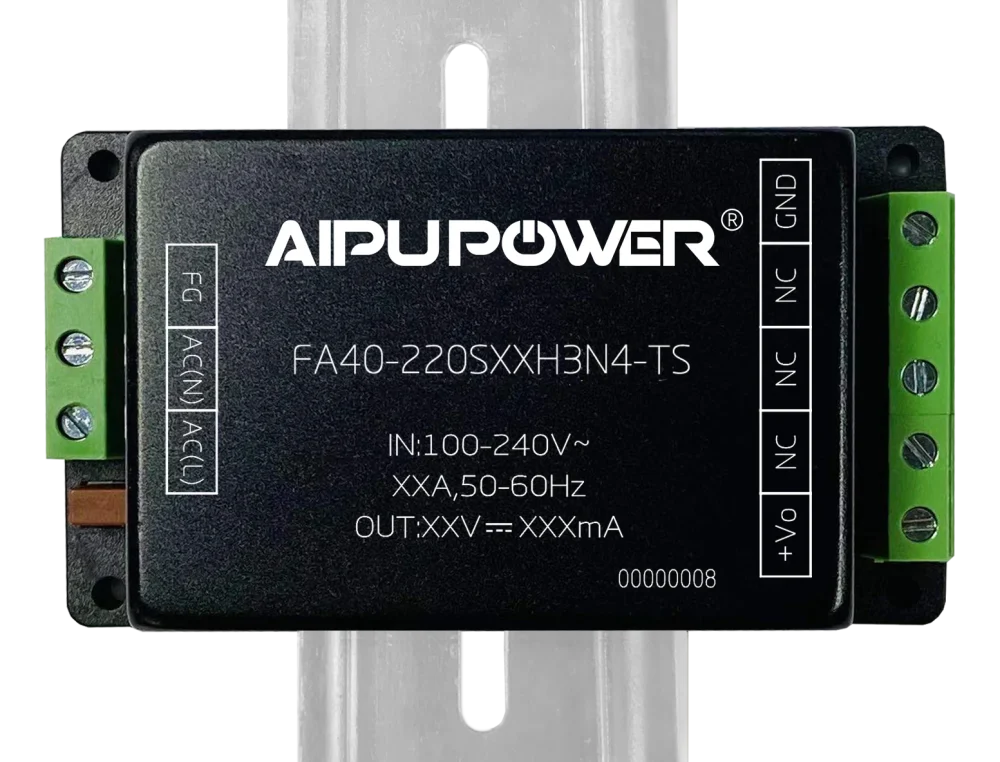

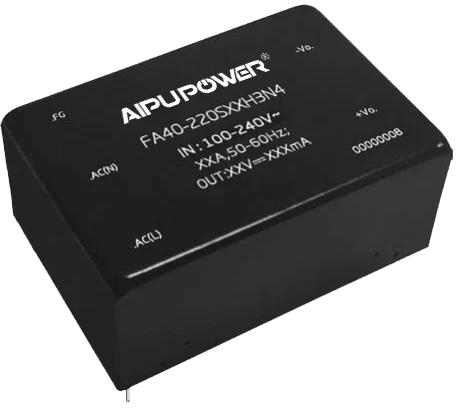

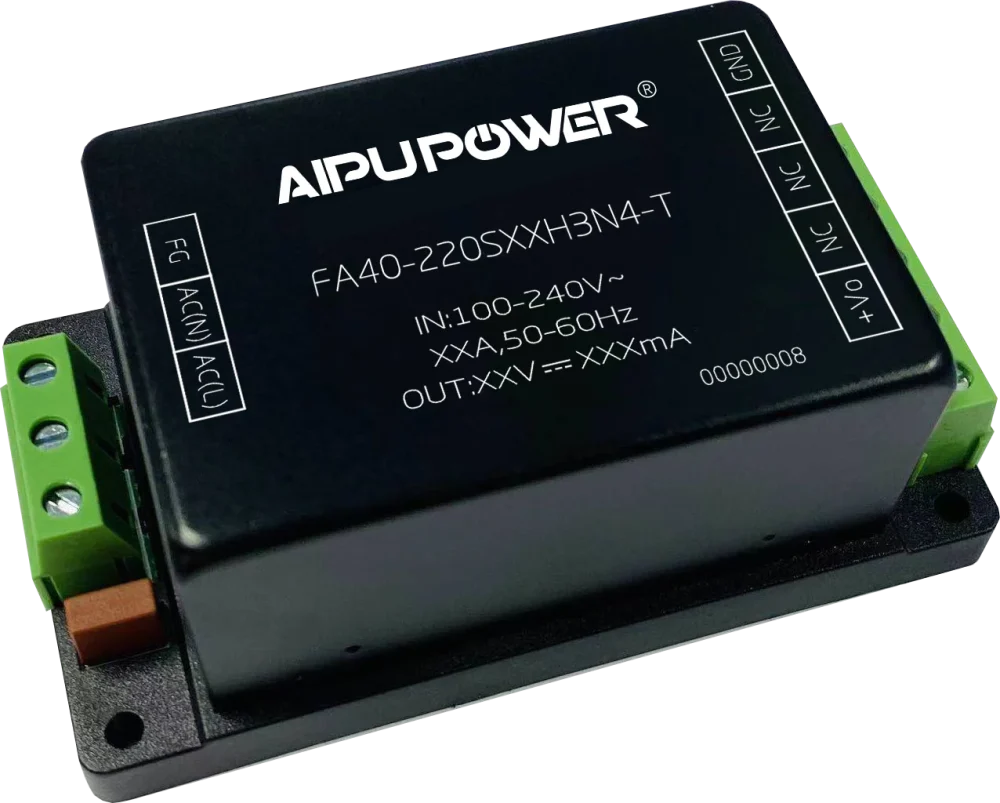

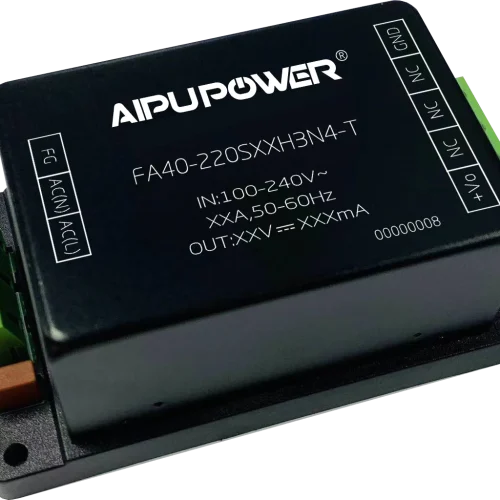

FA40-220SXXH3N4 series AC-DC enclosed power module, 7 model(s).

Quick Inquiry
UGS : FA40-220SXXH3N4 Catégorie :

The FA40-220SXXH3N4 series is a family of AC-DC enclosed power modules rated 35w.

  • FA40-220S05H3N4: 5V / 7000mA output (35wW)
  • FA40-220S12H3N4: 12V / 3333mA output
  • FA40-220S17H3N4: 17V / 2353mA output
  • FA40-220S17V5H3N4: 17.5V / 2290mA output
  • FA40-220S17V6H3N4: 17.6V / 2290mA output
  • FA40-220S24H3N4: 24V / 1667mA output
  • FA40-220S48H3N4: 48V / 833mA output

Datasheet, samples and OEM/ODM support available on request.

Variant specification table
Part NumberPowerInput VoltageOutput VoltageOutput CurrentIsolation VoltageSizePackageNo. of Outputs
FA40-220S05H3N435W85-305VAC / 120-430VDC5V7000mA375070.0X48.0X30.0 mmDIP1
FA40-220S12H3N435W85-305VAC / 120-430VDC12V3333mA375070.0X48.0X30.0 mmDIP1
FA40-220S17H3N435W85-305VAC / 120-430VDC17V2353mA375070.0X48.0X30.0 mmDIP1
FA40-220S17V5H3N435W85-305VAC / 120-430VDC17.5V2290mA375070.0X48.0X30.0 mmDIP1
FA40-220S17V6H3N435W85-305VAC / 120-430VDC17.6V2290mA375070.0X48.0X30.0 mmDIP1
FA40-220S24H3N435W85-305VAC / 120-430VDC24V1667mA375070.0X48.0X30.0 mmDIP1
FA40-220S48H3N435W85-305VAC / 120-430VDC48V833mA375070.0X48.0X30.0 mmDIP1
Total 7 models in this series
fa40-220sxxh3n4-datasheet-1.pdfPDF · 1 023,5 Ko
Open in new tabDownload

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Power (W)

35w

Isolation Voltage (VAC)

3750

Output Voltage (VDC)

12, 17, 17.5, 17.6, 24, 48, 5

Output Current (mA)

1667, 2290, 2353, 3333, 7000, 833

Size (mm)

70.0×48.0x30.0 mm

Package

DIP

No of Outputs

1
