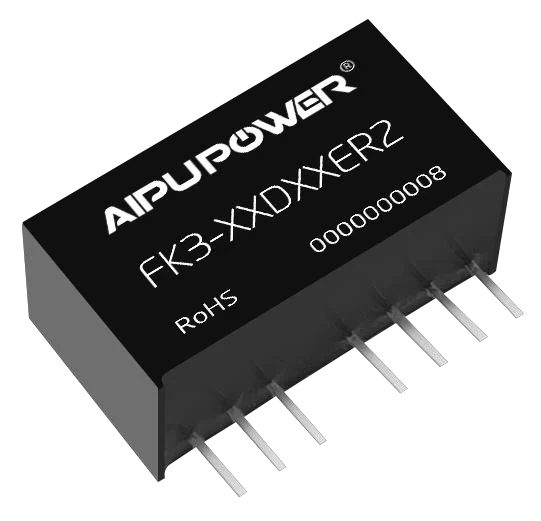

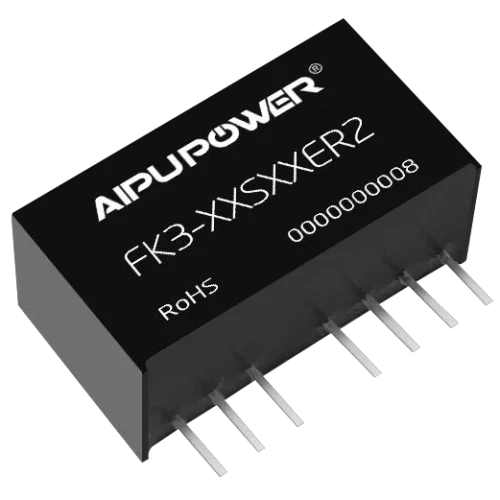

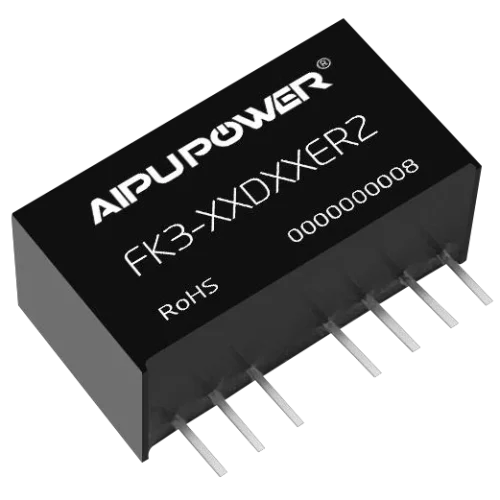

FK3-XXXXER2 series DC-DC SIP power module, 44 model(s).

Model

Effacer

Quick Inquiry

UGS : FK3-XXXXER2 Catégorie : DC-DC SIP

The FK3-XXXXER2 series is a family of DC-DC SIP power modules rated 3w with wide input 4.5-9.

FK3-05S3V3ER2: 3.3V / 758mA output (3wW)
FK3-05S05ER2: 5V / 600mA output
FK3-05S09ER2: 9V / 333mA output
FK3-05S12ER2: 12V / 250mA output
FK3-05S15ER2: 15V / 200mA output
FK3-05S24ER2: 24V / 125mA output
FK3-05D3V3ER2: ±3.3V / +-379mA output
FK3-05D05ER2: ±5V / ±300mA output
FK3-05D12ER2: ±12V / ±125mA output
FK3-05D15ER2: ±15V / ±100mA output
FK3-05D1524ER2: +-24V / ±62.5mA output
FK3-12S3V3ER2: 3.3V / 758mA output
FK3-12S05ER2: 5V / 600mA output
FK3-12S06ER2: 6V / 500mA output
FK3-12S12ER2: 12V / 250mA output
FK3-12S15ER2: 15V / 200mA output
FK3-12S24ER2: 24V / 125mA output
FK3-12D3V3ER2: ±3.3V / +-379mA output
FK3-12D05ER2: ±5V / ±300mA output
FK3-12D12ER2: ±12V / ±125mA output
FK3-12D15ER2: ±15V / ±100mA output
FK3-12D24ER2: +-24V / ±62.5mA output
FK3-24S3V3ER2: 3.3V / 758mA output
FK3-24S05ER2: 5V / 600mA output
FK3-24S09ER2: 9V / 333mA output
FK3-24S12ER2: 12V / 250mA output
FK3-24S15ER2: 15V / 200mA output
FK3-24S24ER2: 24V / 125mA output
FK3-24D3V3ER2: ±3.3V / +-379mA output
FK3-24D05ER2: ±5V / +-300mA output
FK3-24D09ER2: +-9V / ±167mA output
FK3-24D12ER2: ±12V / ±125mA output
FK3-24D15ER2: ±15V / ±100mA output
FK3-24D24ER2: +-24V / ±62.5mA output
FK3-48S3V3ER2: 3.3V / 758mA output
FK3-48S05ER2: 5V / 600mA output
FK3-48S12ER2: 12V / 250mA output
FK3-48S15ER2: 15V / 200mA output
FK3-48S24ER2: 24V / 125mA output
FK3-48D3V3ER2: ±3.3V / +-379mA output
FK3-48D05ER2: ±5V / ±300mA output
FK3-48D12ER2: ±12V / ±125mA output
FK3-48D15ER2: ±15V / ±100mA output
FK3-48D24ER2: ±24V / ±62.5mA output

Datasheet, samples and OEM/ODM support available on request.

Part Number	Power	Input Voltage	Output Voltage	Output Current	Isolation Voltage	Size	Package	No. of Outputs
FK3-05S3V3ER2	3W	4.5-9	3.3V	758mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-05S05ER2	3W	4.5-9	5V	600mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-05S09ER2	3W	4.5-9	9V	333mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-05S12ER2	3W	4.5-9	12V	250mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-05S15ER2	3W	4.5-9	15V	200mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-05S24ER2	3W	4.5-9	24V	125mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-05D3V3ER2	3W	4.5-9	±3.3	+-379mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-05D05ER2	3W	4.5-9	±5	±300mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-05D12ER2	3W	4.5-9	±12	±125mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-05D15ER2	3W	4.5-9	±15	±100mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-05D1524ER2	3W	4.5-9	+-24	±62.5mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-12S3V3ER2	3W	9-18	3.3V	758mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-12S05ER2	3W	9-18	5V	600mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-12S06ER2	3W	9-18	6V	500mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-12S12ER2	3W	9-18	12V	250mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-12S15ER2	3W	9-18	15V	200mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-12S24ER2	3W	9-18	24V	125mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-12D3V3ER2	3W	9-18	±3.3	+-379mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-12D05ER2	3W	9-18	±5	±300mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-12D12ER2	3W	9-18	±12	±125mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-12D15ER2	3W	9-18	±15	±100mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-12D24ER2	3W	9-18	+-24	±62.5mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-24S3V3ER2	3W	18-36	3.3V	758mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-24S05ER2	3W	18-36	5V	600mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-24S09ER2	3W	18-36	9V	333mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-24S12ER2	3W	18-36	12V	250mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-24S15ER2	3W	18-36	15V	200mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-24S24ER2	3W	18-36	24V	125mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-24D3V3ER2	3W	18-36	±3.3	+-379mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-24D05ER2	3W	18-36	±5	+-300mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-24D09ER2	3W	18-36	+-9	±167mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-24D12ER2	3W	18-36	±12	±125mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-24D15ER2	3W	18-36	±15	±100mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-24D24ER2	3W	18-36	+-24	±62.5mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-48S3V3ER2	3W	36-75	3.3V	758mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-48S05ER2	3W	36-75	5V	600mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-48S12ER2	3W	36-75	12V	250mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-48S15ER2	3W	36-75	15V	200mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-48S24ER2	3W	36-75	24V	125mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-48D3V3ER2	3W	36-75	±3.3	+-379mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-48D05ER2	3W	36-75	±5	±300mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-48D12ER2	3W	36-75	±12	±125mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-48D15ER2	3W	36-75	±15	±100mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
FK3-48D24ER2	3W	36-75	±24	±62.5mA	1500vdc	22.00× 9.50 × 12.00 mm	SIP	1 & 2
Total	44 models in this series

fk3-xxxxer2-datasheet-1.pdfPDF · 871,0 Ko

Open in new tab Download

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Input Voltage (VAC&VDC)	18-36, 36-75, 4.5-9, 9-18
Power (W)	3w
Isolation Voltage (VAC)	1500vdc
Output Voltage (VDC)	±12, ±15, ±24, ±3.3, ±5, ±9, 12, 15, 24, 3.3, 5, 6, 9
Output Current (mA)	±100, ±125, ±167, ±300, ±379, ±62.5, 125, 200, 250, 333, 500, 600, 758
Size (mm)	22.00×9.50×12.00 mm
Package	SIP
No of Outputs	1 & 2
