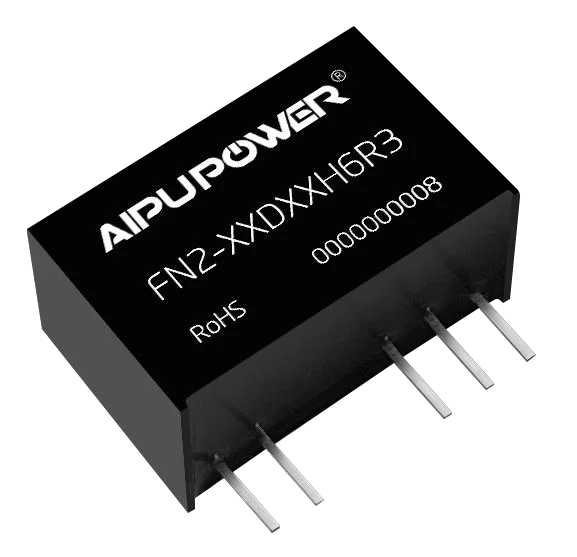

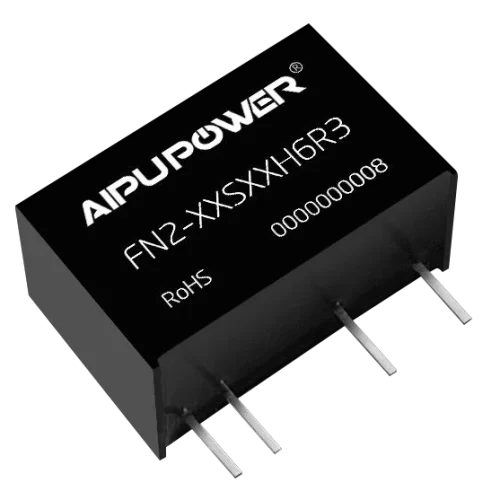

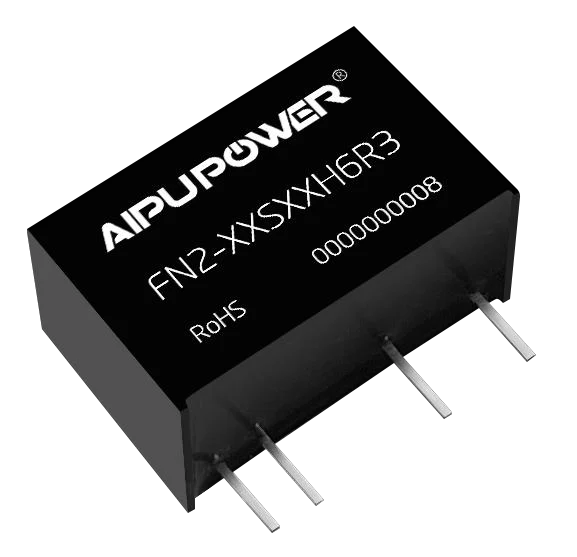

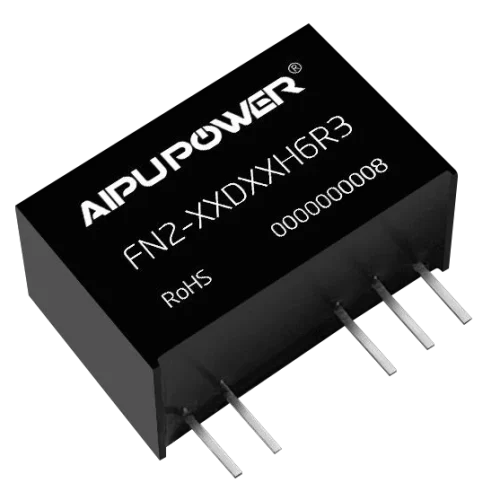

FN2-XXXXXXH6R3 series DC-DC SIP power module, 17 model(s).

Quick Inquiry
UGS : FN2-XXXXXXH6R3 Catégorie :

The FN2-XXXXXXH6R3 series is a family of DC-DC SIP power modules rated 2w with wide input 10.8-13.2.

  • FN2-12S05H6R3: 5V / 400mA output (2wW)
  • FN2-12S12H6R3: 12V / 167mA output
  • FN2-12S15H6R3: 15V / 133mA output
  • FN2-12S24H6R3: 24V / 83mA output
  • FN2-12D12H6R3: ±12V / ±83mA output
  • FN2-12D15H6R3: ±15V / ±67mA output
  • FN2-15S05H6R3: 5V / 400mA output
  • FN2-15S15H6R3: 15V / 133mA output
  • FN2-15D12H6R3: ±12V / ±83mA output
  • FN2-15D15H6R3: ±15V / ±67mA output
  • FN2-24S05H6R3: 5V / 400mA output
  • FN2-24S12H6R3: 12V / 167mA output
  • FN2-24S15H6R3: 15V / 133mA output
  • FN2-24S24H6R3: 24V / 84mA output
  • FN2-24D09H6R3: ±9V / ±111mA output
  • FN2-24D12H6R3: ±12V / ±83mA output
  • FN2-24D15H6R3: ±15V / ±67mA output

Datasheet, samples and OEM/ODM support available on request.

Variant specification table
Part NumberPowerInput VoltageOutput VoltageOutput CurrentIsolation VoltageSizePackageNo. of Outputs
FN2-12S05H6R32W10.8-13.25V400mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-12S12H6R32W10.8-13.212V167mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-12S15H6R32W10.8-13.215V133mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-12S24H6R32W10.8-13.224V83mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-12D12H6R32W10.8-13.2±12±83mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-12D15H6R32W10.8-13.2±15±67mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-15S05H6R32W13.5-16.55V400mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-15S15H6R32W13.5-16.515V133mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-15D12H6R32W13.5-16.5±12±83mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-15D15H6R32W13.5-16.5±15±67mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-24S05H6R32W21.6-26.45V400mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-24S12H6R32W21.6-26.412V167mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-24S15H6R32W21.6-26.415V133mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-24S24H6R32W21.6-26.424V84mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-24D09H6R32W21.6-26.4±9±111mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-24D12H6R32W21.6-26.4±12±83mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
FN2-24D15H6R32W21.6-26.4±15±67mA5000vac/6000vdc19.5*9.8*12.5SIP1&2
Total 17 models in this series
fn2-xxxxxxh6r3-datasheet-1.pdfPDF · 735,7 Ko
Open in new tabDownload

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Input Voltage (VAC&VDC)

10.8-13.2, 13.5-16.5, 21.6-26.4

Power (W)

2w

Isolation Voltage (VAC)

5000vac/6000vdc

Output Voltage (VDC)

±12, ±15, ±9, 12, 15, 24, 5

Output Current (mA)

±111, ±67, ±83, 133, 167, 400, 83, 84

Size (mm)

19.5×9.8×12.5 mm

Package

SIP

No of Outputs

1 & 2
