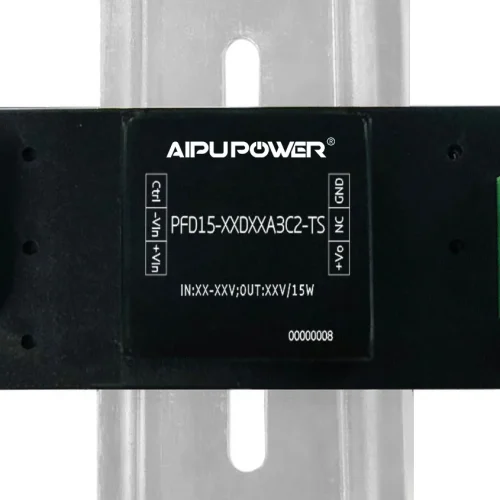

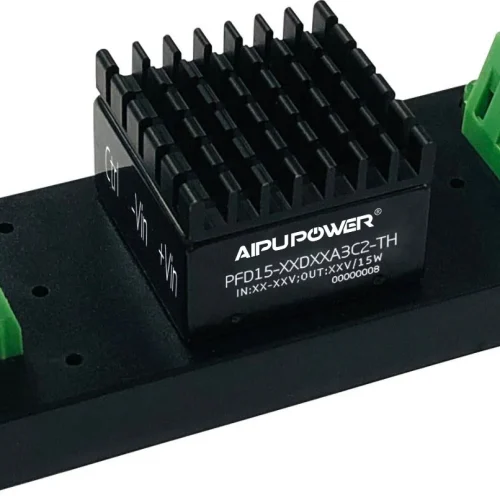

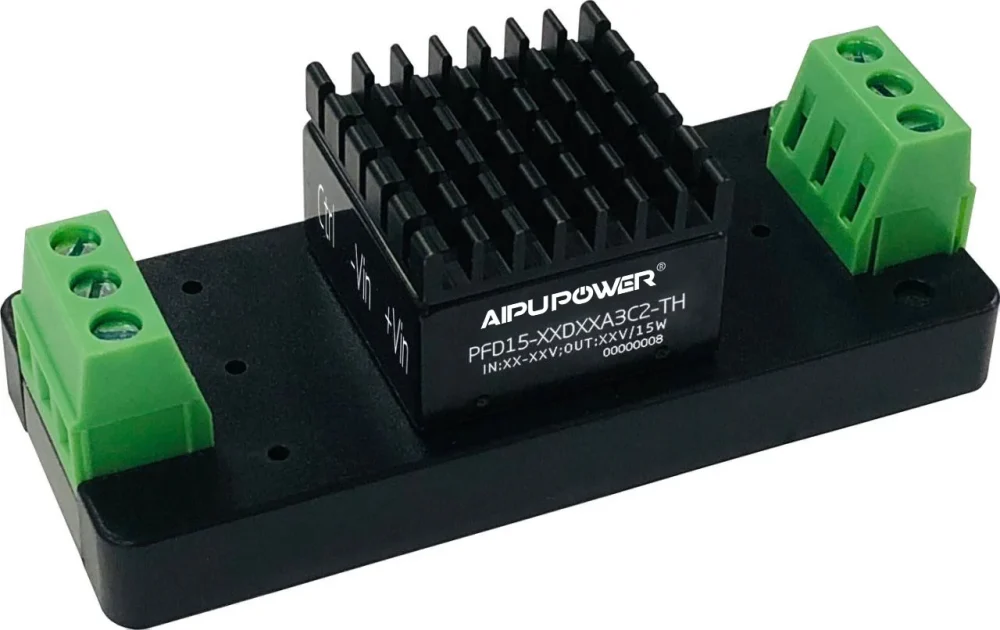

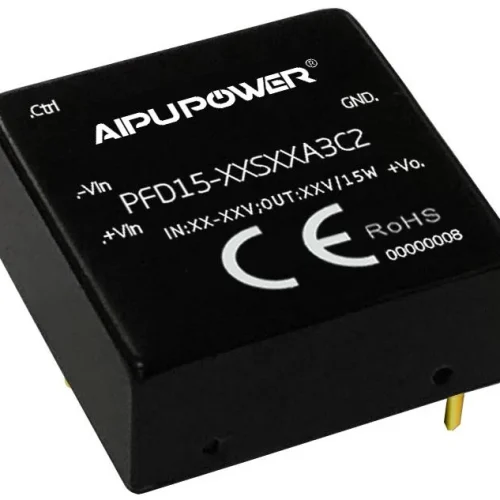

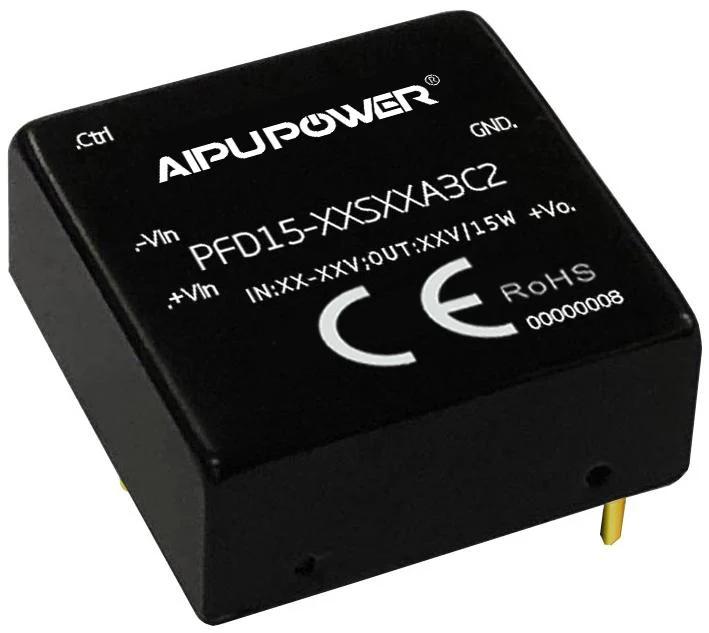

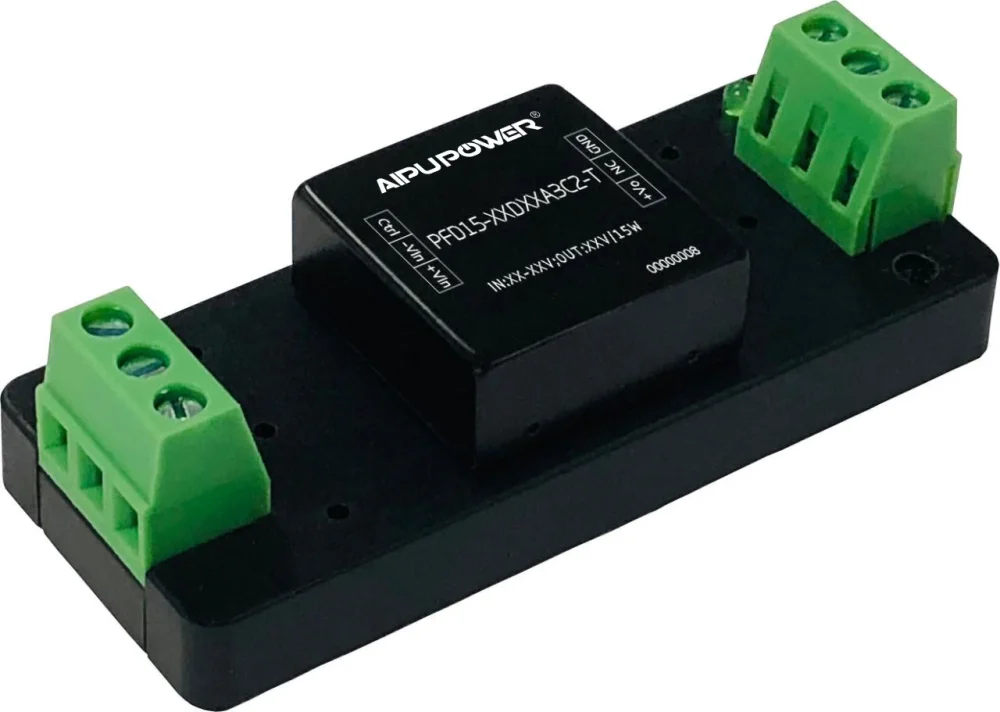

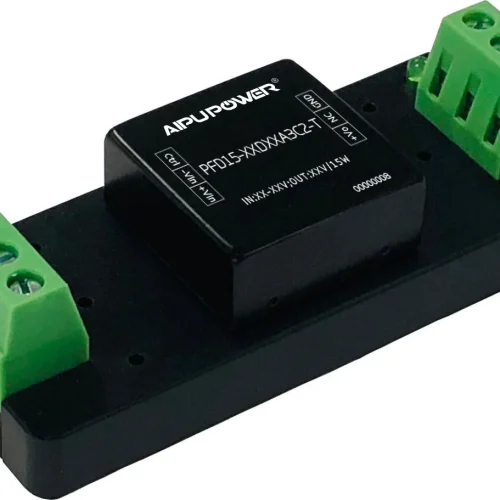

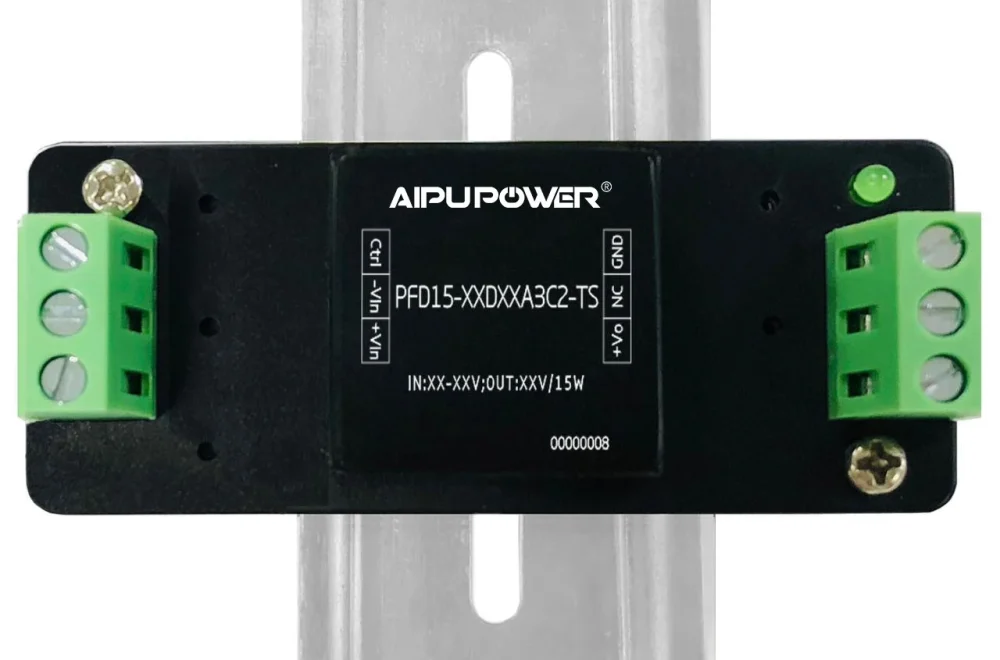

PFD15-XXSXXA3(C)2
PFD15-XXSXXA3(C)2 series DC-DC DIP power module, 12 model(s).
The PFD15-XXSXXA3(C)2 series is a family of DC-DC DIP power modules rated 13.2w / 15w with wide input 9-36.
- PFD15-18S3V3A3(C)2: 3.3V / 4000mA output (13.2wW)
- PFD15-18S05A3(C)2: 5V / 3000mA output (15wW)
- PFD15-18S09A3(C)2: 9V / 1667mA output
- PFD15-18S12A3(C)2: 12V / 1250mA output
- PFD15-18S15A3(C)2: 15V / 1000mA output
- PFD15-18S24A3(C)2: 24V / 625mA output
- PFD15-36S3V3A3(C)2: 3.3V / 4000mA output (13.2wW)
- PFD15-36S05A3(C)2: 5V / 3000mA output (15wW)
- PFD15-36S09A3(C)2: 9V / 1667mA output
- PFD15-36S12A3(C)2: 12V / 1250mA output
- PFD15-36S15A3(C)2: 15V / 1000mA output
- PFD15-36S24A3(C)2: 24V / 625mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| PFD15-18S3V3A3(C)2 | 13.2W | 9-36 | 3.3V | 4000mA | 1500 | 25.4*25.4*12.5 | DIP | 1 |
| PFD15-18S05A3(C)2 | 15W | 9-36 | 5V | 3000mA | 1500 | 25.4*25.4*12.5 | DIP | 1 |
| PFD15-18S09A3(C)2 | 15W | 9-36 | 9V | 1667mA | 1500 | 25.4*25.4*12.5 | DIP | 1 |
| PFD15-18S12A3(C)2 | 15W | 9-36 | 12V | 1250mA | 1500 | 25.4*25.4*12.5 | DIP | 1 |
| PFD15-18S15A3(C)2 | 15W | 9-36 | 15V | 1000mA | 1500 | 25.4*25.4*12.5 | DIP | 1 |
| PFD15-18S24A3(C)2 | 15W | 9-36 | 24V | 625mA | 1500 | 25.4*25.4*12.5 | DIP | 1 |
| PFD15-36S3V3A3(C)2 | 13.2W | 18-75 | 3.3V | 4000mA | 1500 | 25.4*25.4*12.5 | DIP | 1 |
| PFD15-36S05A3(C)2 | 15W | 18-75 | 5V | 3000mA | 1500 | 25.4*25.4*12.5 | DIP | 1 |
| PFD15-36S09A3(C)2 | 15W | 18-75 | 9V | 1667mA | 1500 | 25.4*25.4*12.5 | DIP | 1 |
| PFD15-36S12A3(C)2 | 15W | 18-75 | 12V | 1250mA | 1500 | 25.4*25.4*12.5 | DIP | 1 |
| PFD15-36S15A3(C)2 | 15W | 18-75 | 15V | 1000mA | 1500 | 25.4*25.4*12.5 | DIP | 1 |
| PFD15-36S24A3(C)2 | 15W | 18-75 | 24V | 625mA | 1500 | 25.4*25.4*12.5 | DIP | 1 |
| Total | 12 models in this series | |||||||
