QAXX

QA01: -8.7V / +80/-40mA output (14.5-15.5W)
QA01-09: /V / +111mA output
QA01-A09: -9V / +55/-55mA output
QA01-17: -8.7V / +80/-40mA output
QA02: -8.7V / +80/-40mA output (11.6-12.4W)
QA03: -8.7V / +80/-40mA output (23.3-24.7W)
QA04: -8V / +100/-80mA output (9-15W)

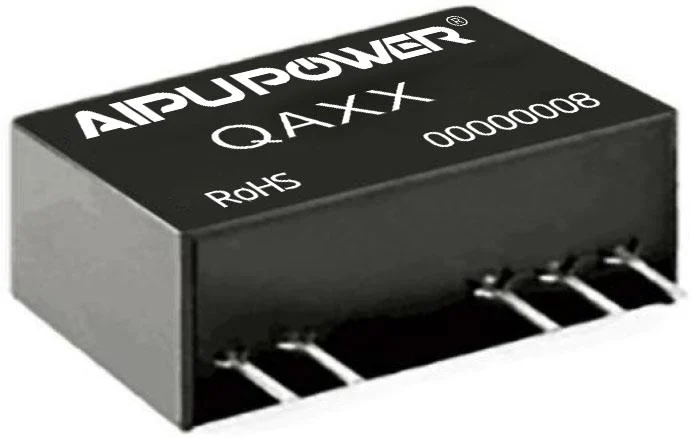

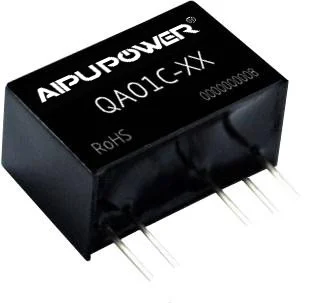

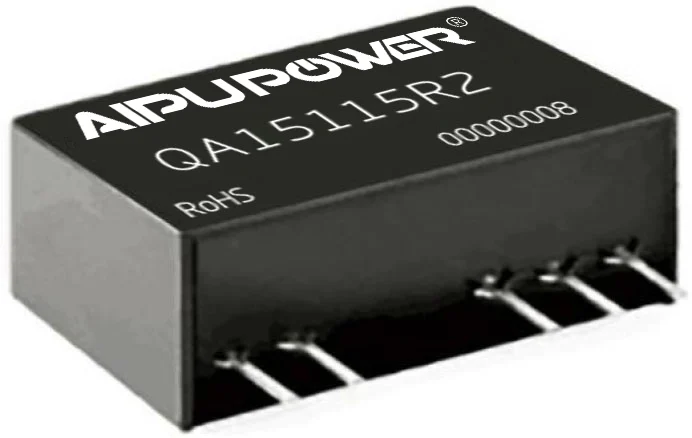

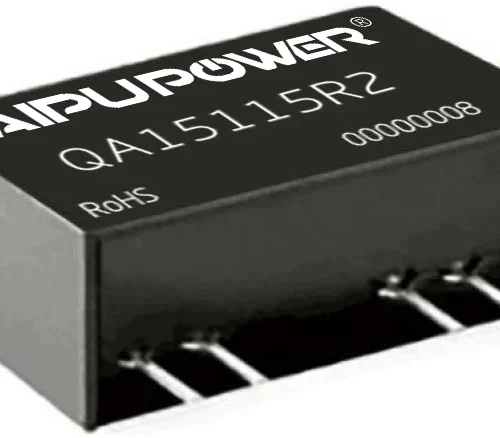

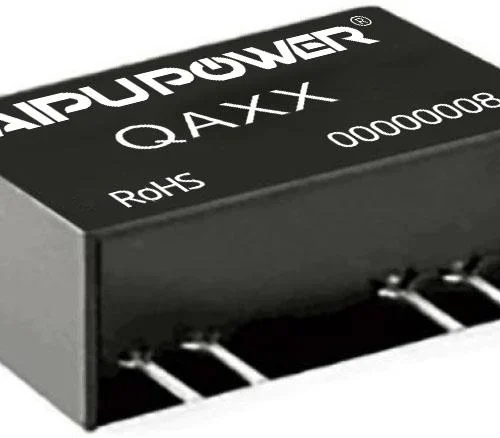

QAXX series power module power module, 7 model(s).

Model

UGS : QAXX Catégorie : Other

The QAXX series is a family of power module power modules rated 14.5-15.5W / 11.6-12.4W / 23.3-24.7W / 9-15W with wide input +15.

Datasheet, samples and OEM/ODM support available on request.

Part Number	Power	Input Voltage	Output Voltage	Output Current	Isolation Voltage	Size	Package	No. of Outputs
QA01	14.5-15.5W	14.5-15.5	+15/-8.7	+80/-40mA	3000vac	19.50× 9.80 × 12.50mm	SIP	1
QA01-09	14.5-15.5W	14.5-15.5	+9	+111mA	3000vac	19.50× 9.80 × 12.50mm	SIP	1
QA01-A09	14.5-15.5W	14.5-15.5	+9/-9	+55/-55mA	3000vac	19.50× 9.80 × 12.50mm	SIP	1
QA01-17	14.5-15.5W	14.5-15.5	+17/-8.7	+80/-40mA	3000vac	19.50× 9.80 × 12.50mm	SIP	1
QA02	11.6-12.4W	11.6-12.4	+15/-8.7	+80/-40mA	3000vac	19.50× 9.80 × 12.50mm	SIP	1
QA03	23.3-24.7W	23.3-24.7	+15/-8.7	+80/-40mA	3000vac	19.50× 9.80 × 12.50mm	SIP	1
QA04	9-15W	9-15	+15/-8	+100/-80mA	3000vac	19.50× 9.80 × 12.50mm	SIP	1
Total	7 models in this series

qaxx-datasheet-1.pdfPDF · 734,5 Ko
