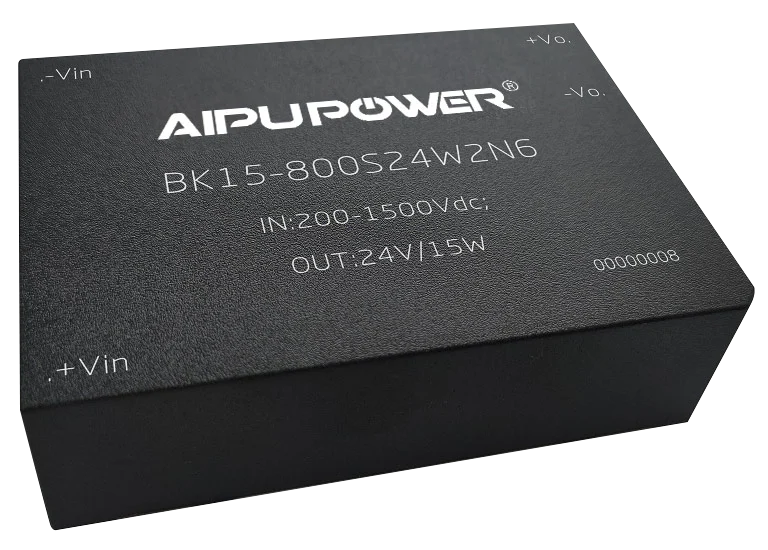

BK15-800SXXW2N6
BK15-800SXXW2N6 series power module power module, 3 model(s).
The BK15-800SXXW2N6 series is a family of power module power modules rated 15w with wide input 200-1500.
- BK15-800S12W2N6: 12V / 1250mA output (15wW)
- BK15-800S15W2N6: 15V / 1000mA output
- BK15-800S24W2N6: 24V / 625mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| BK15-800S12W2N6 | 15W | 200-1500 | 12V | 1250mA | 4000 | 89.00x63.50x25.00 | DIP | 1 |
| BK15-800S15W2N6 | 15W | 200-1500 | 15V | 1000mA | 4000 | 89.00x63.50x25.00 | DIP | 1 |
| BK15-800S24W2N6 | 15W | 200-1500 | 24V | 625mA | 4000 | 89.00x63.50x25.00 | DIP | 1 |
| Total | 3 models in this series | |||||||
