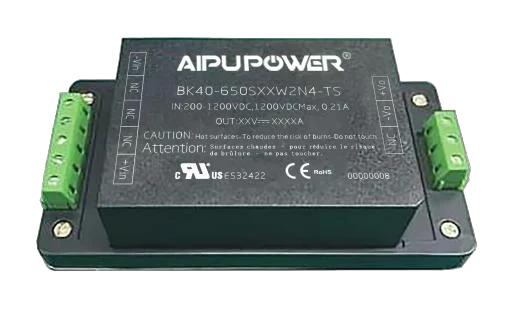

BK40-650SXXW2N4-TS
BK40-650SXXW2N4-TS series power module power module, 3 model(s).
The BK40-650SXXW2N4-TS series is a family of power module power modules rated 40w with wide input 200-1200.
- BK40-650S12W2N4-TS: 12V / 3334mA output (40wW)
- BK40-650S15W2N4-TS: 15V / 2667mA output
- BK40-650S24W2N4-TS: 24V / 1667mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| BK40-650S12W2N4-TS | 40W | 200-1200 | 12V | 3334mA | 4000vac | 134.00x 69.00 x 42.00 | DIP | 1 |
| BK40-650S15W2N4-TS | 40W | 200-1200 | 15V | 2667mA | 4000vac | 134.00x 69.00 x 42.00 | DIP | 1 |
| BK40-650S24W2N4-TS | 40W | 200-1200 | 24V | 1667mA | 4000vac | 134.00x 69.00 x 42.00 | DIP | 1 |
| Total | 3 models in this series | |||||||
|
