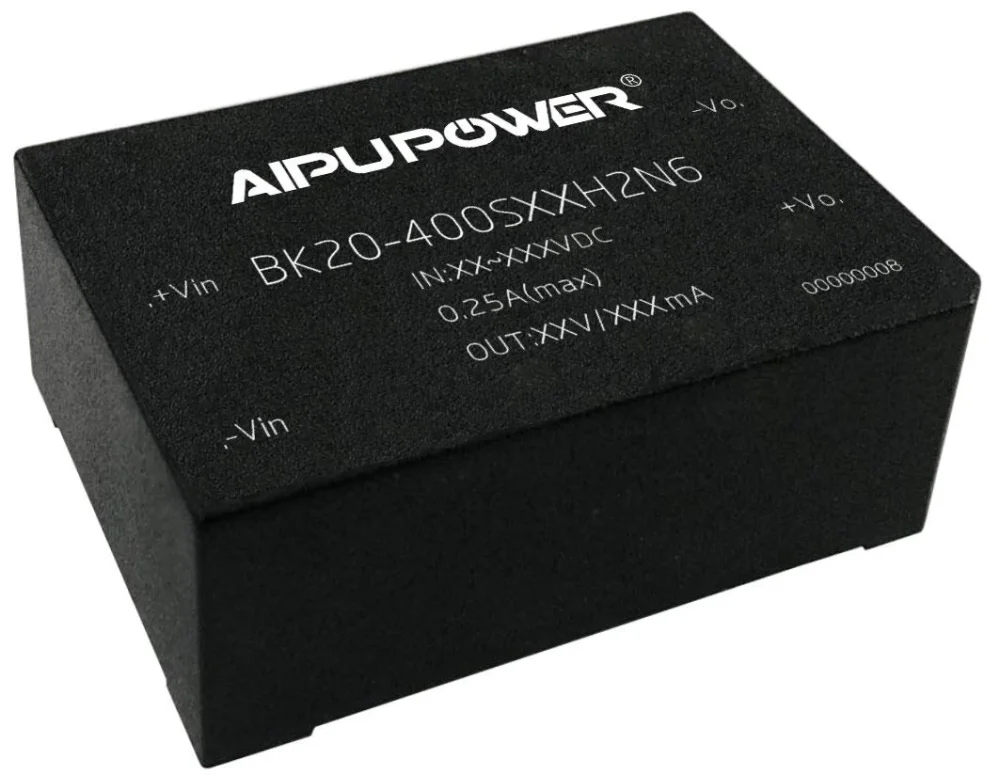

BK20-400SXXH2N6
BK20-400SXXH2N6 series power module power module, 2 model(s).
The BK20-400SXXH2N6 series is a family of power module power modules rated 20w with wide input 60-750.
- BK20-400S12H2N6: 12V / 1667mA output (20wW)
- BK20-400S24H2N6: 24V / 833mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| BK20-400S12H2N6 | 20W | 60-750 | 12V | 1667mA | 4000vac/6000vdc | 70.10 X 48.00 X 23.50 | DIP | 1 |
| BK20-400S24H2N6 | 20W | 8-745 | 24V | 833mA | 4000vac/6000vdc | 70.10 X 48.00 X 23.50 | DIP | 1 |
| Total | 2 models in this series | |||||||
