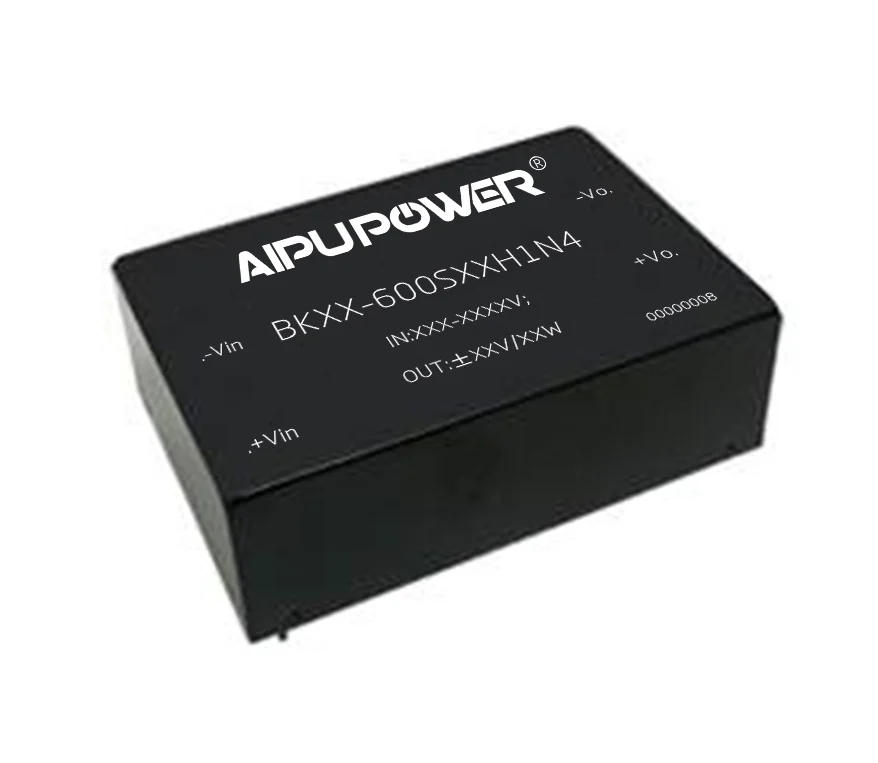

BK20-600SXXH1N4
BK20-600SXXH1N4 series power module power module, 6 model(s).
The BK20-600SXXH1N4 series is a family of power module power modules rated 20w / 25w with wide input 200-1200.
- BK20-600S05H1N4: 5V / 4000mA output (20wW)
- BK20-600S12H1N4: 12V / 1667mA output
- BK20-600S15H1N4: 15V / 1334mA output
- BK20-600S24H1N4: 24V / 834mA output
- BK25-150S12H2N4: 12V / 2100mA output (25wW)
- BK25-170S12H2N4: 12V / 2080mA output (25wW)
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| BK20-600S05H1N4 | 20W | 200-1200 | 5V | 4000mA | 4000 | 70*48*23.5 | DIP | 1 |
| BK20-600S12H1N4 | 20W | 200-1200 | 12V | 1667mA | 4000 | 70*48*23.5 | DIP | 1 |
| BK20-600S15H1N4 | 20W | 200-1200 | 15V | 1334mA | 4000 | 70*48*23.5 | DIP | 1 |
| BK20-600S24H1N4 | 20W | 200-1200 | 24V | 834mA | 4000 | 70*48*23.5 | DIP | 1 |
| BK25-150S12H2N4 | 25W | 64-280VDC | 12V | 2100mA | 4000vac | 70.0X48.0X23.5 mm | DIP | 1 |
| BK25-170S12H2N4 | 25W | 45-300VDC | 12V | 2080mA | 4000 | 70.0X48.0X23.5 mm | DIP | 1 |
| Total | 6 models in this series | |||||||
