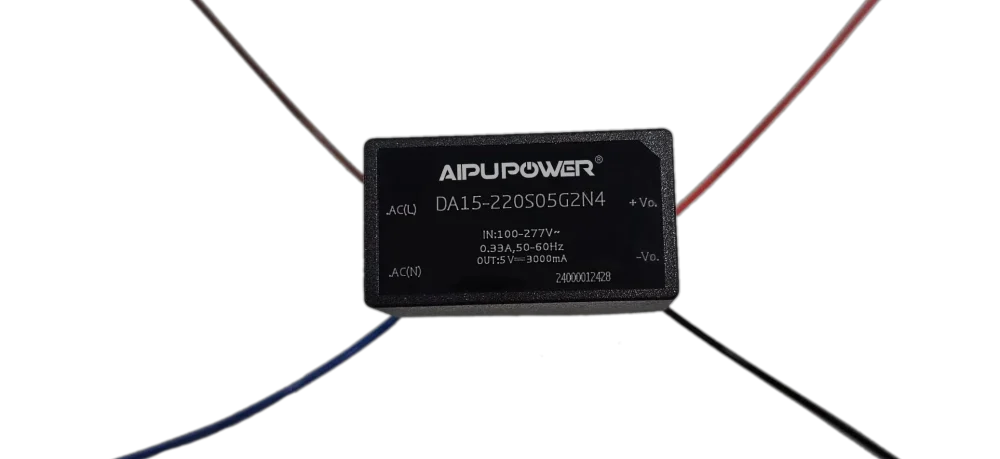

DA15-220SXXG2N4
DA15-220SXXG2N4 series AC-DC enclosed power module, 5 model(s).
The DA15-220SXXG2N4 series is a family of AC-DC enclosed power modules rated 15W with wide input 85-305VAC/120-430VDC.
- DA15-220S05G2N4: 5V / 3000mA output (15WW)
- DA15-220S12G2N4: 12V / 1250mA output
- DA15-220S12V5G2N4: 12.5V / 1200mA output
- DA15-220S15G2N4: 15V / 1000mA output
- DA15-220S24G2N4: 24V / 625mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| DA15-220S05G2N4 | 15W | 85-305VAC/120-430VDC | 5V | 3000mA | 4000vac | 47.60 x 26.8 x 23.50 mm | DIP | 1 |
| DA15-220S12G2N4 | 15W | 85-305VAC/120-430VDC | 12V | 1250mA | 4000vac | 47.60 x 26.8 x 23.50 mm | DIP | 1 |
| DA15-220S12V5G2N4 | 15W | 85-305VAC/120-430VDC | 12.5V | 1200mA | 4000vac | 47.60 x 26.8 x 23.50 mm | DIP | 1 |
| DA15-220S15G2N4 | 15W | 85-305VAC/120-430VDC | 15V | 1000mA | 4000vac | 47.60 x 26.8 x 23.50 mm | DIP | 1 |
| DA15-220S24G2N4 | 15W | 85-305VAC/120-430VDC | 24V | 625mA | 4000vac | 47.60 x 26.8 x 23.50 mm | DIP | 1 |
| Total | 5 models in this series | |||||||
