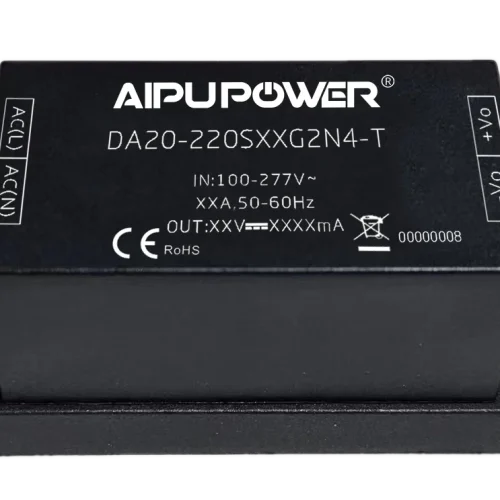

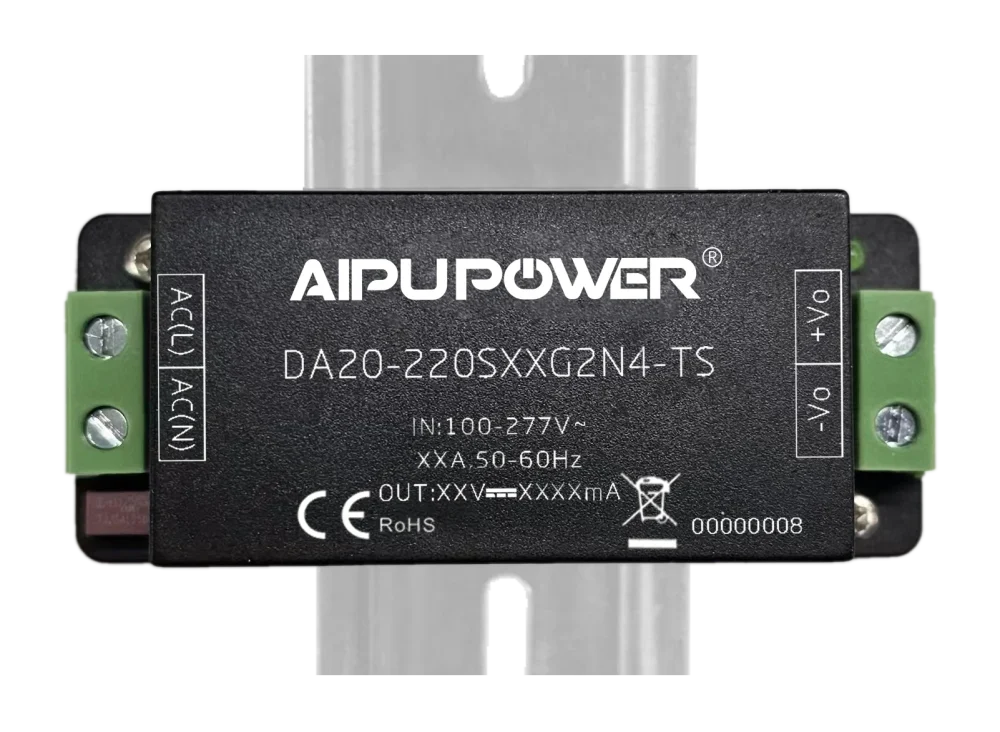

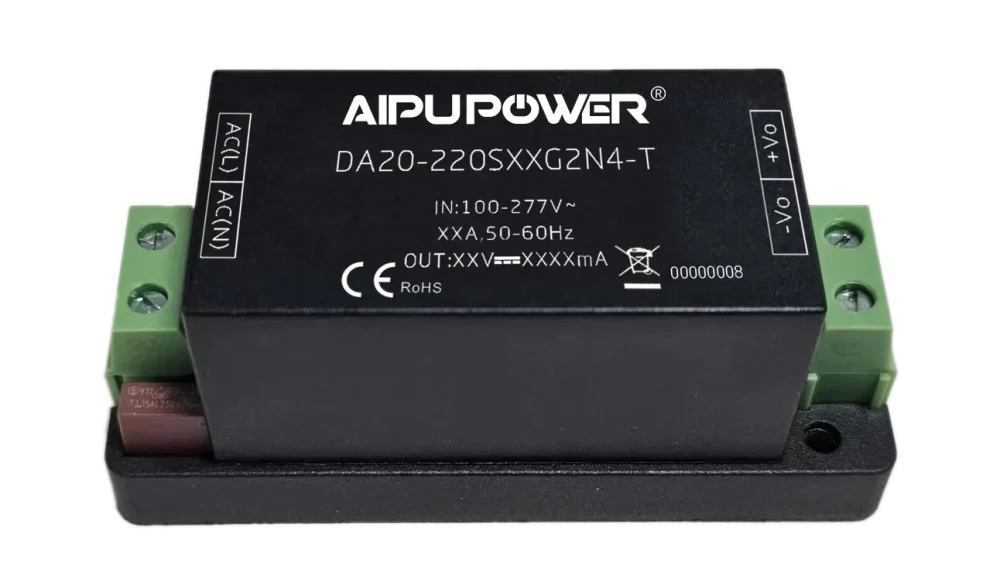

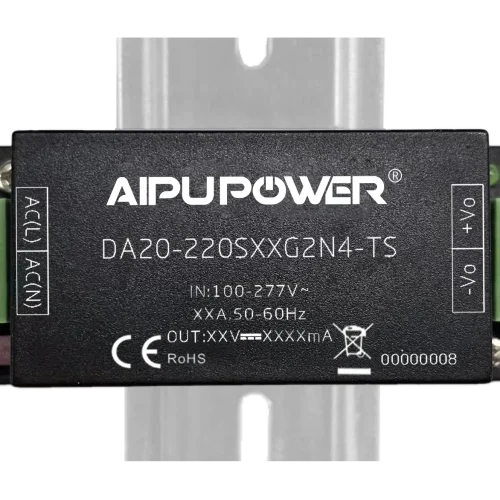

DA20-220SXXG2N4
DA20-220SXXG2N4 series AC-DC enclosed power module, 7 model(s).
The DA20-220SXXG2N4 series is a family of AC-DC enclosed power modules rated 13.2W / 20w with wide input 85-305vac /120-430vdc.
- DA20-220S3V3G2N4: 3.3V / 4000mA output (13.2WW)
- DA20-220S05G2N4: 5V / 4000mA output (20wW)
- DA20-220S09G2N4: 9V / 2222mA output

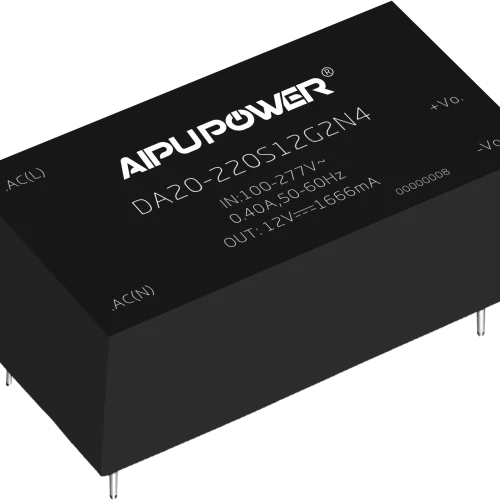

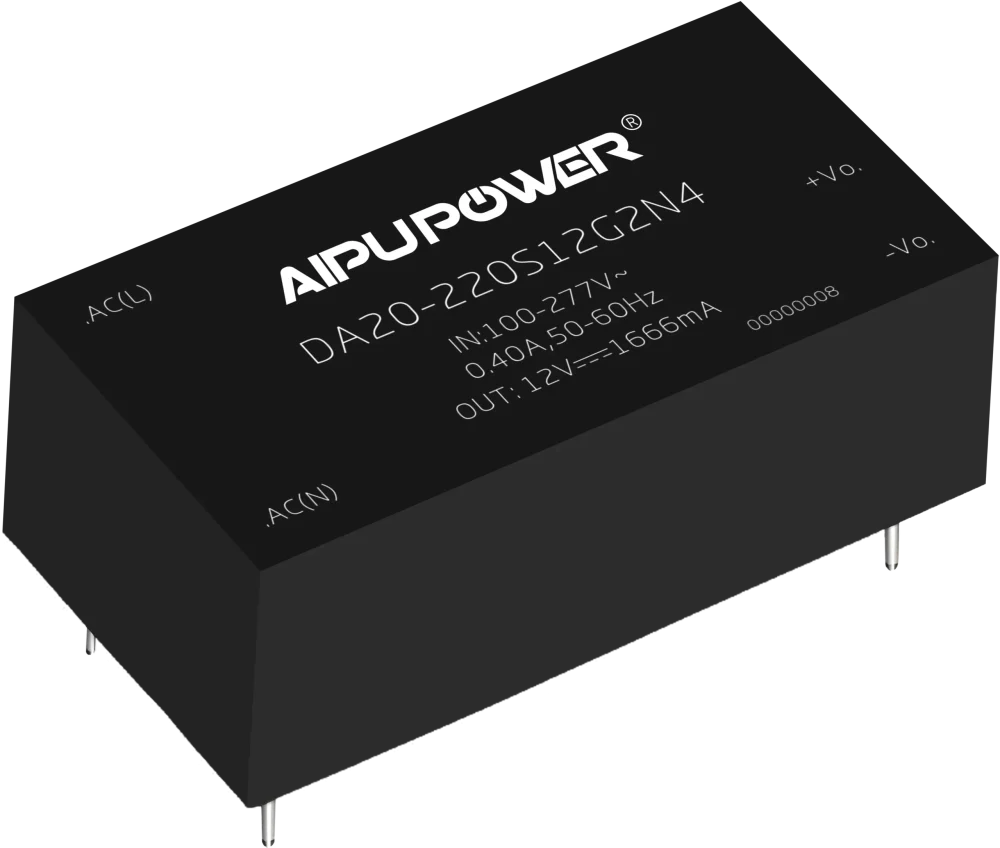

- DA20-220S12G2N4: 12V / 1666mA output
- DA20-220S12V5G2N4: 12.5V / 1600mA output
- DA20-220S15G2N4: 15V / 1333mA output
- DA20-220S24G2N4: 24V / 833mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| DA20-220S3V3G2N4 | 13.2W | 85-305vac /120-430vdc | 3.3V | 4000mA | 4000vac | 54*29.3*23.7 | DIP | 1 |
| DA20-220S05G2N4 | 20W | 85-305vac /120-430vdc | 5V | 4000mA | 4000vac | 54*29.3*23.7 | DIP | 1 |
| DA20-220S09G2N4 | 20W | 85-305vac /120-430vdc | 9V | 2222mA | 4000vac | 54*29.3*23.7 | DIP | 1 |
| DA20-220S12G2N4 | 20W | 85-305vac /120-430vdc | 12V | 1666mA | 4000vac | 54*29.3*23.7 | DIP | 1 |
| DA20-220S12V5G2N4 | 20W | 85-305vac /120-430vdc | 12.5V | 1600mA | 4000vac | 54*29.3*23.7 | DIP | 1 |
| DA20-220S15G2N4 | 20W | 85-305vac /120-430vdc | 15V | 1333mA | 4000vac | 54*29.3*23.7 | DIP | 1 |
| DA20-220S24G2N4 | 20W | 85-305vac /120-430vdc | 24V | 833mA | 4000vac | 54*29.3*23.7 | DIP | 1 |
| Total | 7 models in this series | |||||||
