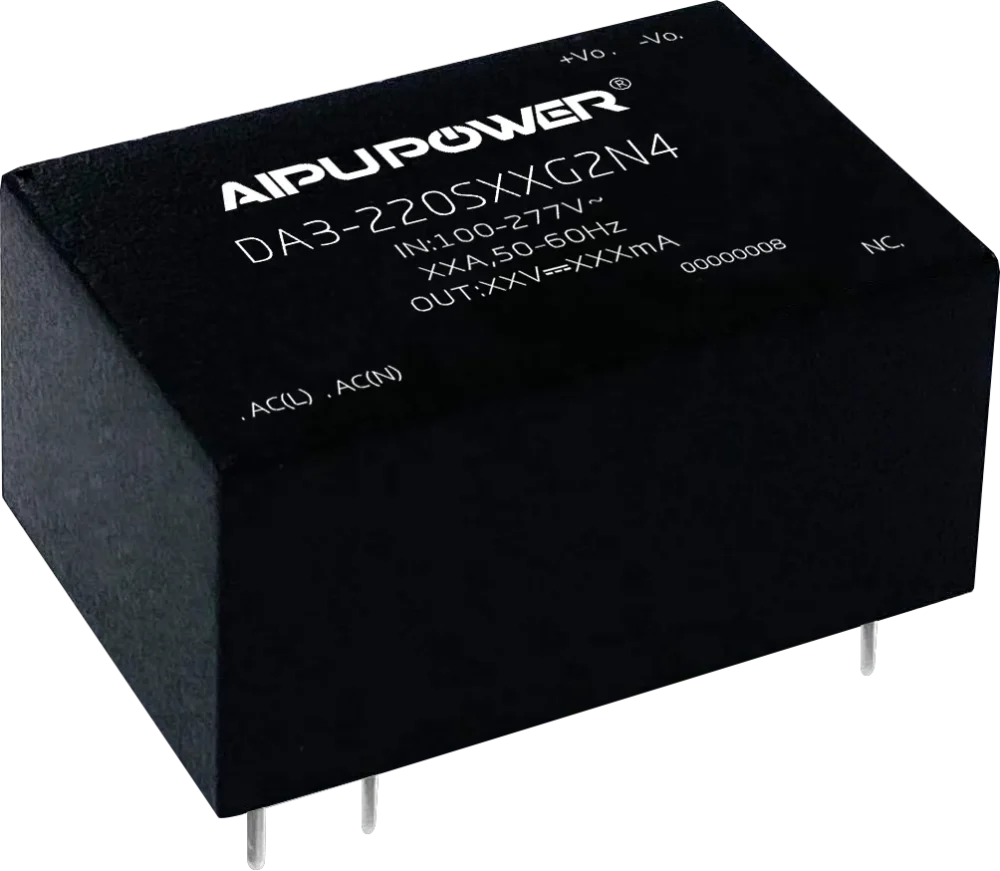

DA3-220SXXG2N4
DA3-220SXXG2N4 series AC-DC enclosed power module, 4 model(s).
The DA3-220SXXG2N4 series is a family of AC-DC enclosed power modules rated 3W with wide input 85-305VAC/120-430VDC.
- DA3-220S05G2N4: 5V / 600mA output (3W)
- DA3-220S12G2N4: 12V / 250mA output
- DA3-220S15G2N4: 15V / 200mA output
- DA3-220S24G2N4: 24V / 125mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| DA3-220S05G2N4 | 3W | 85-305VAC/120-430VDC | 5V | 600mA | 4000ac | 37.0X24.5X18mm | DIP | 1 |
| DA3-220S12G2N4 | 3W | 85-305VAC/120-430VDC | 12V | 250mA | 4000ac | 37.0X24.5X18mm | DIP | 1 |
| DA3-220S15G2N4 | 3W | 85-305VAC/120-430VDC | 15V | 200mA | 4000ac | 37.0X24.5X18mm | DIP | 1 |
| DA3-220S24G2N4 | 3W | 85-305VAC/120-430VDC | 24V | 125mA | 4000ac | 37.0X24.5X18mm | DIP | 1 |
| Total | 4 models in this series | |||||||
