FA2-220SXXN2
FA2-220SXXN2 series AC-DC enclosed power module, 5 model(s).
The FA2-220SXXN2 series is a family of AC-DC enclosed power modules rated 2W with wide input 85-305vac /120-430vdc.
- FA2-220S3V3N2: 3.3V / 600mA output (2W)

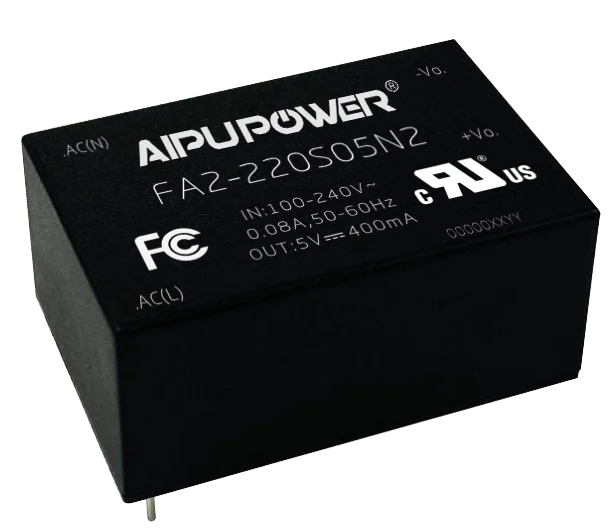

- FA2-220S05N2: 5V / 400mA output
- FA2-220S12N2: 12V / 167mA output
- FA2-220S15N2: 15V / 133mA output
- FA2-220S24N2: 24V / 83mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA2-220S3V3N2 | 2W | 85-305vac /120-430vdc | 3.3V | 600mA | 3000vac | 33.8*22.2*15.3 | DIP | 1 |
| FA2-220S05N2 | 2W | 85-305vac /120-430vdc | 5V | 400mA | 3000vac | 33.8*22.2*15.3 | DIP | 1 |
| FA2-220S12N2 | 2W | 85-305vac /120-430vdc | 12V | 167mA | 3000vac | 33.8*22.2*15.3 | DIP | 1 |
| FA2-220S15N2 | 2W | 85-305vac /120-430vdc | 15V | 133mA | 3000vac | 33.8*22.2*15.3 | DIP | 1 |
| FA2-220S24N2 | 2W | 85-305vac /120-430vdc | 24V | 83mA | 3000vac | 33.8*22.2*15.3 | DIP | 1 |
| Total | 5 models in this series | |||||||
Loading preview…
The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.
|
Related products
Add to Quote
This product has multiple variants. The options may be chosen on the product page
DA10-220SXXP2D4-(T)-(TS)
Add to Quote
This product has multiple variants. The options may be chosen on the product page
FA5-220SXXG2D4
Add to Quote
This product has multiple variants. The options may be chosen on the product page

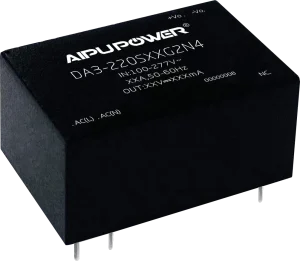

DA3-220SXXG2N4
