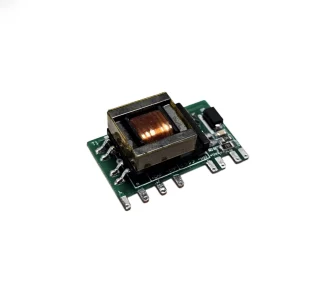

DA5-220EXXXXGA9N4
DA5-220EXXXXGA9N4 series AC-DC open frame module, input 85-305VAC/120-430VDC, 2 model(s), single output.
The DA5-220EXXXXGA9N4 series is a family of 5w AC-DC open frame power modules. Wide input 85-305VAC/120-430VDC and 2- output.
- DA5-220E0512GA9N4: 5/12V / 200/330mA output (5wW)
- DA5-220E0524GA9N4: 5/24V / 200/167mA output
All models feature an open frame package. Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| DA5-220E0512GA9N4 | 5W | 85-305VAC/120-430VDC | 5/12V | 200/330mA | 3600vac | 29.54 x 18.55 x 12.0 mm | open frame | 2 |
| DA5-220E0524GA9N4 | 5W | 85-305VAC/120-430VDC | 5/24V | 200/167mA | 3600vac | 29.54 x 18.55 x 12.0 mm | open frame | 2 |
| Total | 2 models in this series | |||||||
