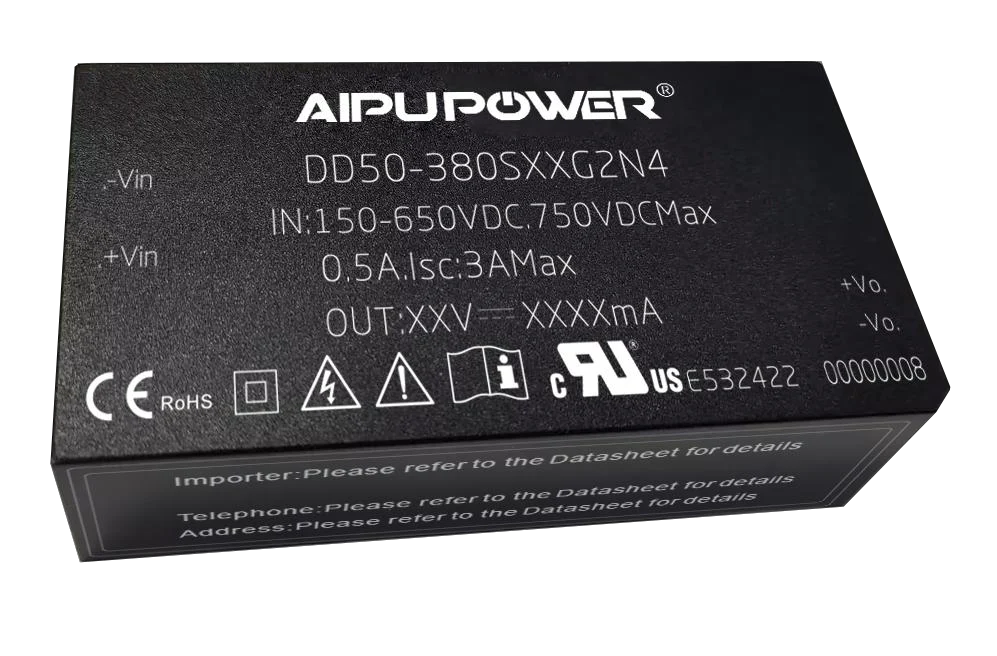

DD50-380SXXG2N4
DD50-380SXXG2N4 series DC-DC DIP power module, 2 model(s).
The DD50-380SXXG2N4 series is a family of DC-DC DIP power modules rated 50w with wide input 8-750vdc.
- DD50-380S12G2N4: 12V / 4167mA output (50wW)
- DD50-380S24G2N4: 24V / 2083mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| DD50-380S12G2N4 | 50W | 8-750vdc | 12V | 4167mA | 4000vac | 109.00 x 58.50 x 30.00 mm | DIP | 1 |
| DD50-380S24G2N4 | 50W | 8-750vdc | 24V | 2083mA | 4000vac | 109.00 x 58.50 x 30.00 mm | DIP | 1 |
| Total | 2 models in this series | |||||||
