FD40-18SXXB3(C)
FD40-18SXXB3(C) series DC-DC DIP power module, 2 model(s).
The FD40-18SXXB3(C) series is a family of DC-DC DIP power modules rated 40w with wide input 9-36.
- FD40-18S12B3(C): 12V / 3333mA output (40wW)
- FD40-18S24B3(C): 24V / 1666mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FD40-18S12B3(C) | 40W | 9-36 | 12V | 3333mA | 1500vdc | 50.8 x 25.4 x 9.5 mm | DIP | 1 |
| FD40-18S24B3(C) | 40W | 9-36 | 24V | 1666mA | 1500vdc | 50.8 x 25.4 x 9.5 mm | DIP | 1 |
| Total | 2 models in this series | |||||||
Loading preview…
The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.
|
Related products
Add to Quote
This product has multiple variants. The options may be chosen on the product page

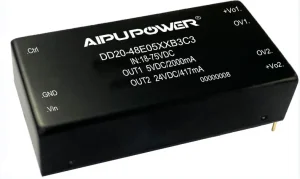

DD20-48E05XXB3C3
Add to Quote
This product has multiple variants. The options may be chosen on the product page
DD10-XXDXXE3C2
Add to Quote
This product has multiple variants. The options may be chosen on the product page

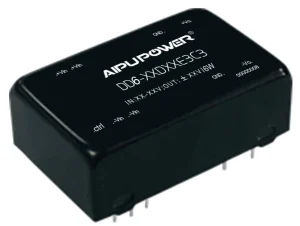

DD6-XXDXXE3(C)3
Add to Quote
This product has multiple variants. The options may be chosen on the product page

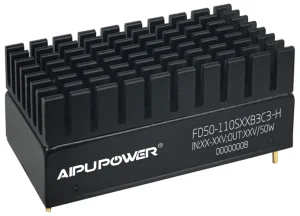

FD50-110SXXB3C3
