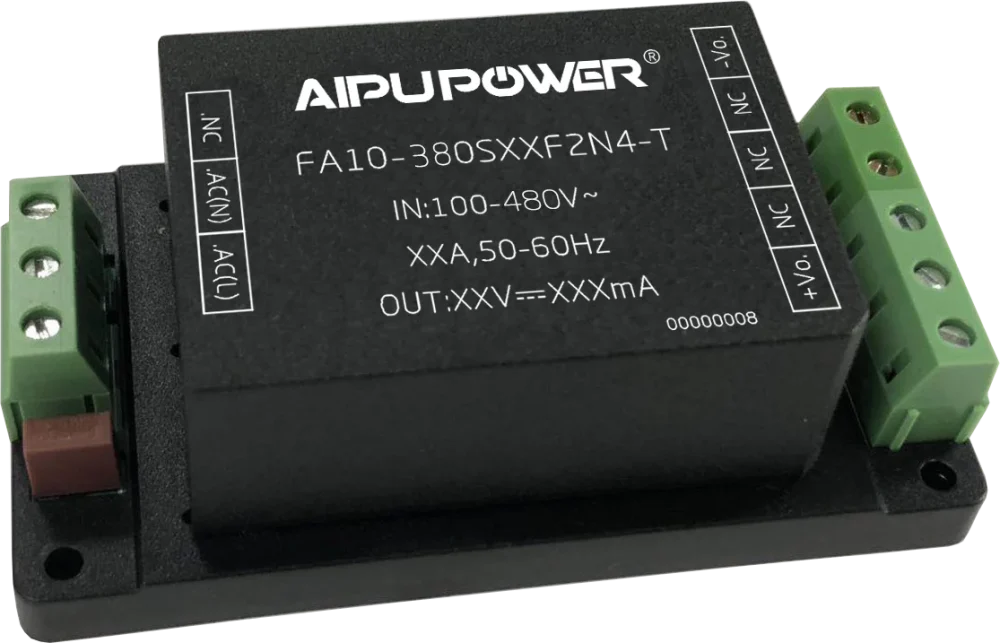

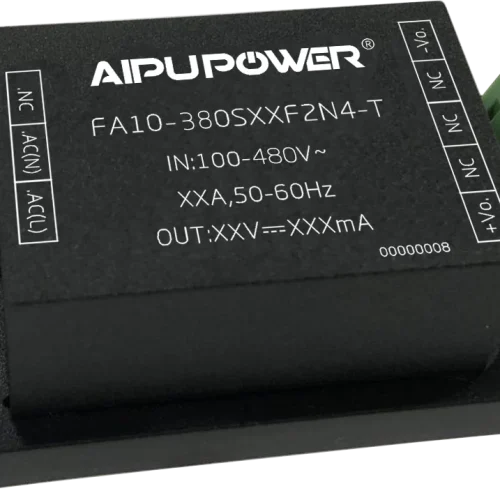

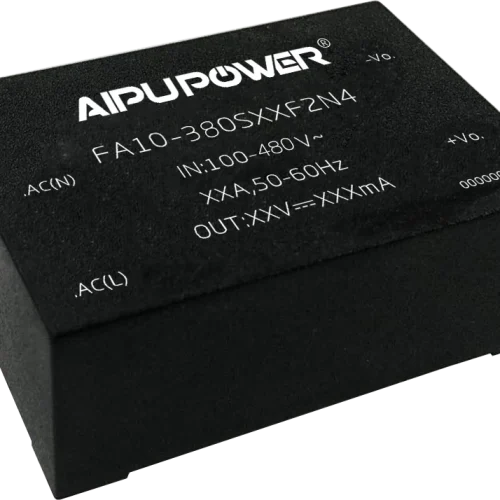

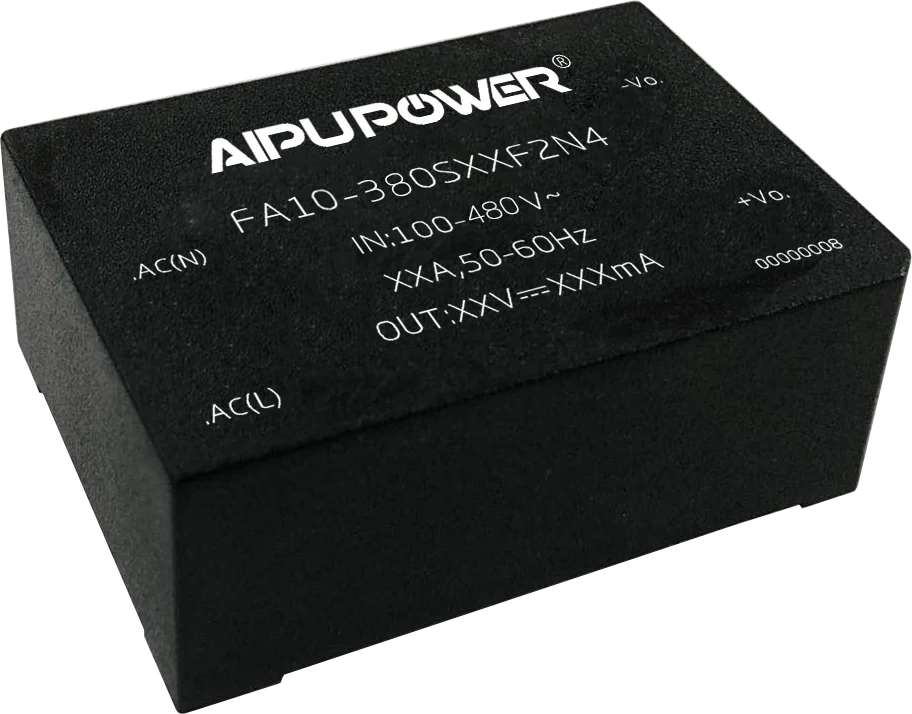

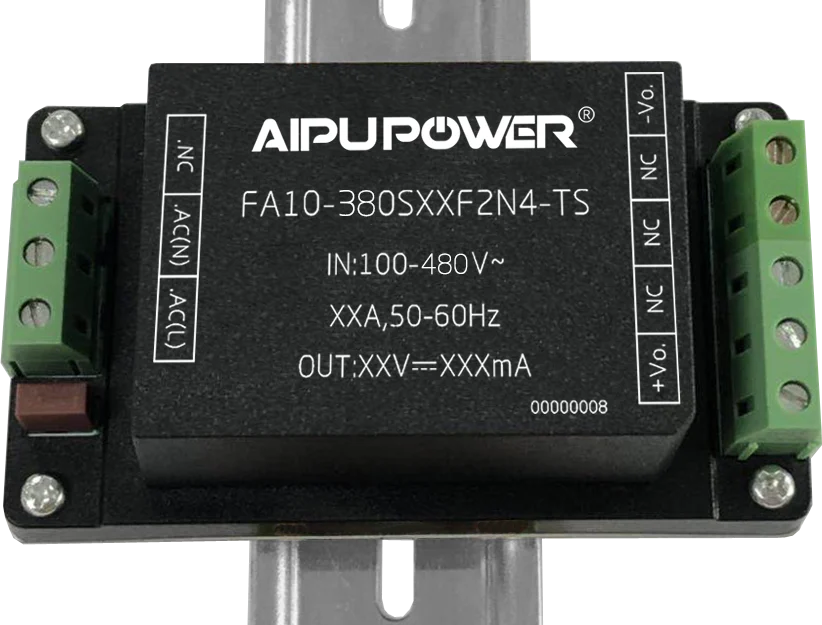

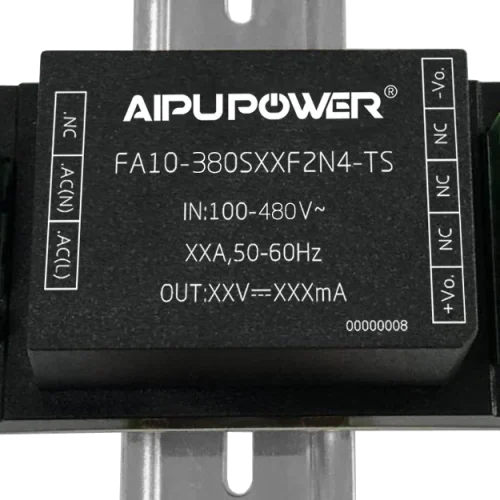

FA10-380SXXF2N4
FA10-380SXXF2N4 series AC-DC enclosed power module, 3 model(s).
The FA10-380SXXF2N4 series is a family of AC-DC enclosed power modules rated 10w with wide input 85-528VAC/120-745VDC.
- FA10-380S05F2N4: 5V / 2000mA output (10wW)
- FA10-380S12F2N4: 12V / 833mA output
- FA10-380S24F2N4: 24V / 417mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA10-380S05F2N4 | 10W | 85-528VAC/120-745VDC | 5V | 2000mA | 4000 | 62.0 x 45.0 x 22.5 mm | DIP | 1 |
| FA10-380S12F2N4 | 10W | 85-528VAC/120-745VDC | 12V | 833mA | 4000 | 62.0 x 45.0 x 22.5 mm | DIP | 1 |
| FA10-380S24F2N4 | 10W | 85-528VAC/120-745VDC | 24V | 417mA | 4000 | 62.0 x 45.0 x 22.5 mm | DIP | 1 |
| Total | 3 models in this series | |||||||
