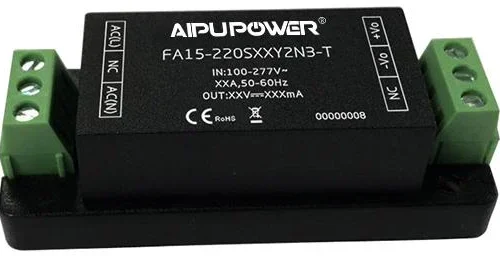

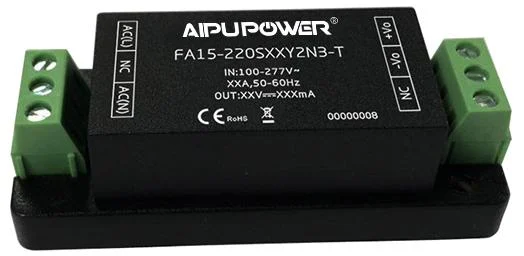

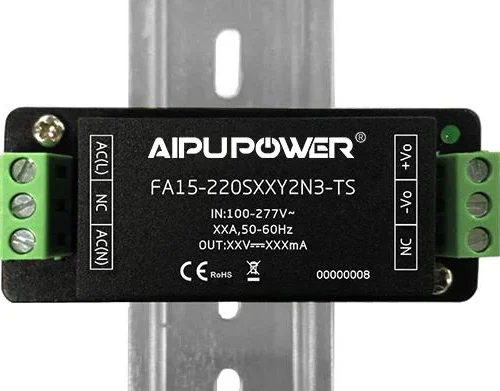

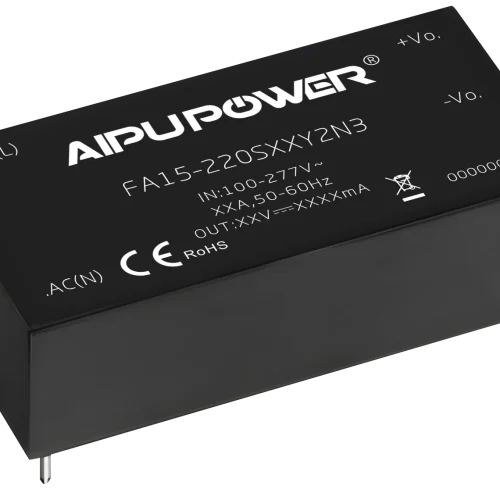

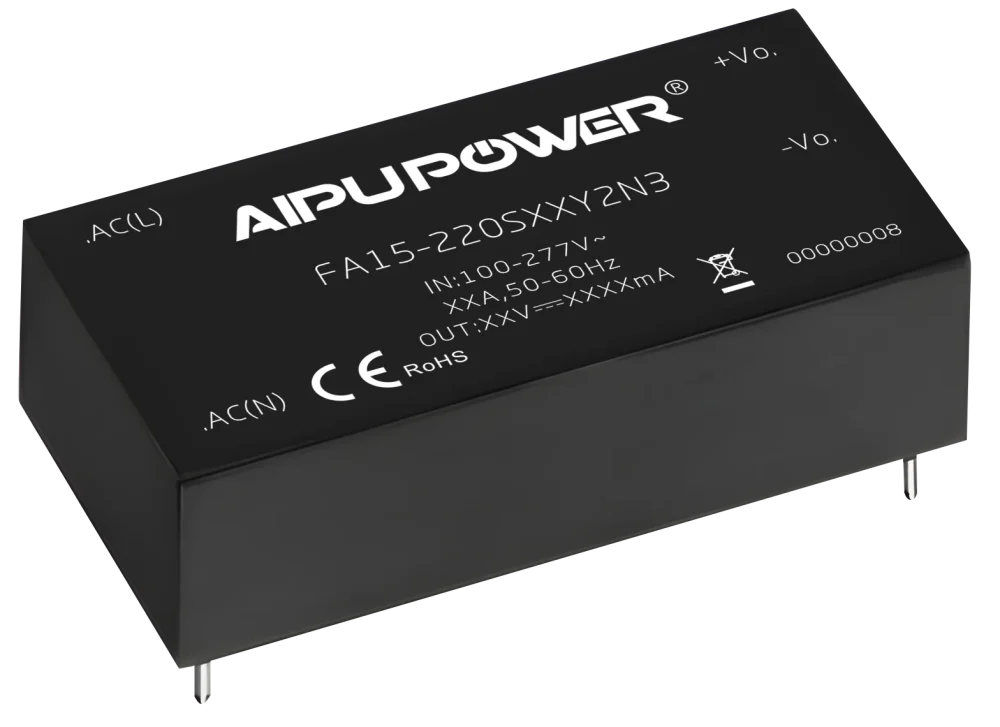

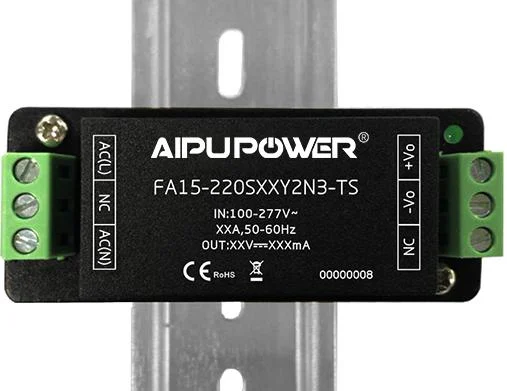

FA15-220SXXY2N3
FA15-220SXXY2N3 series AC-DC enclosed power module, 6 model(s).
The FA15-220SXXY2N3 series is a family of AC-DC enclosed power modules rated 15w with wide input 85-305vac /120-430vdc.
- FA15-220S05Y2N3: 5V / 3000mA output (15wW)
- FA15-220S12Y2N3: 12V / 1250mA output
- FA15-220S12V5Y2N3: 12.5V / 1200mA output
- FA15-220S12V8Y2N3: 12.8V / 1172mA output
- FA15-220S15Y2N3: 15V / 1000mA output
- FA15-220S24Y2N3: 24V / 625mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA15-220S05Y2N3 | 15W | 85-305vac /120-430vdc | 5V | 3000mA | 4000 | 50.8*25.4*15.6 | DIP | 1 |
| FA15-220S12Y2N3 | 15W | 85-305vac /120-430vdc | 12V | 1250mA | 4000 | 50.8*25.4*15.6 | DIP | 1 |
| FA15-220S12V5Y2N3 | 15W | 85-305vac /120-430vdc | 12.5V | 1200mA | 4000 | 50.8*25.4*15.6 | DIP | 1 |
| FA15-220S12V8Y2N3 | 15W | 85-305vac /120-430vdc | 12.8V | 1172mA | 4000 | 50.8*25.4*15.6 | DIP | 1 |
| FA15-220S15Y2N3 | 15W | 85-305vac /120-430vdc | 15V | 1000mA | 4000 | 50.8*25.4*15.6 | DIP | 1 |
| FA15-220S24Y2N3 | 15W | 85-305vac /120-430vdc | 24V | 625mA | 4000 | 50.8*25.4*15.6 | DIP | 1 |
| Total | 6 models in this series | |||||||
