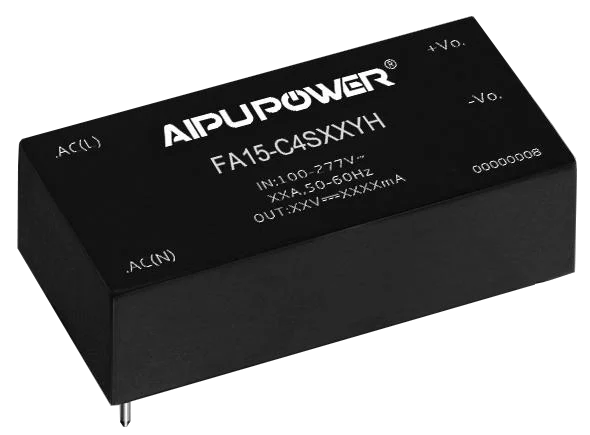

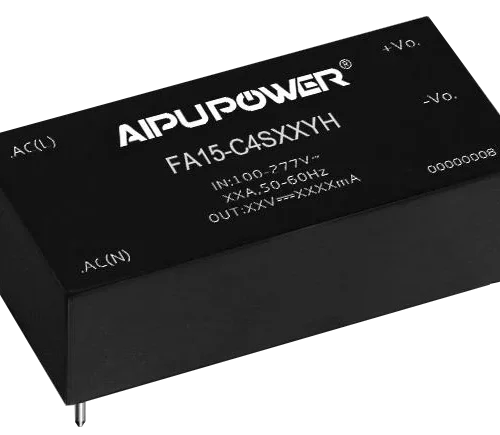

FA15-C4SXXYH
FA15-C4SXXYH series AC-DC enclosed power module, 6 model(s).
The FA15-C4SXXYH series is a family of AC-DC enclosed power modules rated 15W with wide input 85-305VAC/120-430VDC.
- FA15-C405YH: 5V / 3000mA output (15WW)
- FA15-C4S12YH: 12V / 1250mA output
- FA15-C4S12.5YH: 12.5V / 1200mA output
- FA15-C4S12.8YH: 12.8V / 1172mA output
- FA15-C4S15YH: 15V / 1000mA output
- FA15-C4S24YH: 24V / 625mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA15-C405YH | 15W | 85-305VAC/120-430VDC | 5V | 3000mA | 4000 | 50.80X25.40X15.60 mm | DIP | 1 |
| FA15-C4S12YH | 15W | 85-305VAC/120-430VDC | 12V | 1250mA | 4000 | 50.80X25.40X15.60 mm | DIP | 1 |
| FA15-C4S12.5YH | 15W | 85-305VAC/120-430VDC | 12.5V | 1200mA | 4000 | 50.80X25.40X15.60 mm | DIP | 1 |
| FA15-C4S12.8YH | 15W | 85-305VAC/120-430VDC | 12.8V | 1172mA | 4000 | 50.80X25.40X15.60 mm | DIP | 1 |
| FA15-C4S15YH | 15W | 85-305VAC/120-430VDC | 15V | 1000mA | 4000 | 50.80X25.40X15.60 mm | DIP | 1 |
| FA15-C4S24YH | 15W | 85-305VAC/120-430VDC | 24V | 625mA | 4000 | 50.80X25.40X15.60 mm | DIP | 1 |
| Total | 6 models in this series | |||||||
