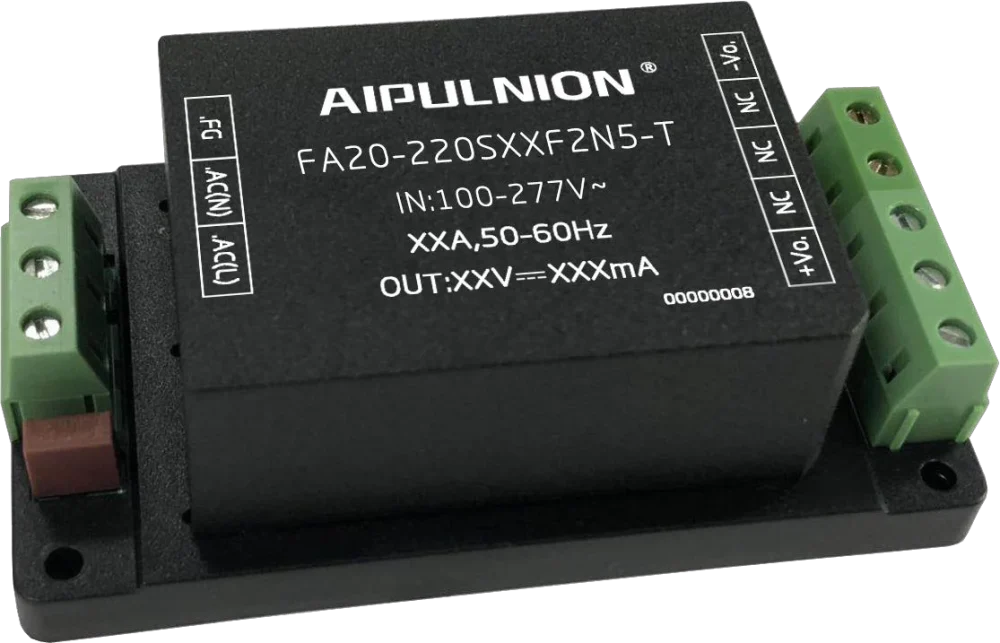

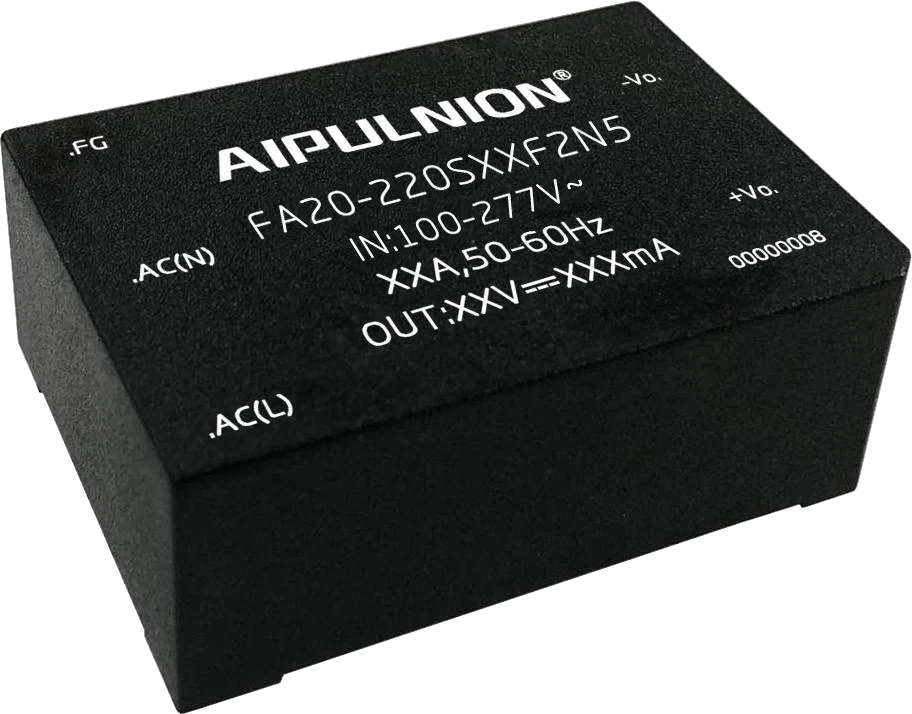

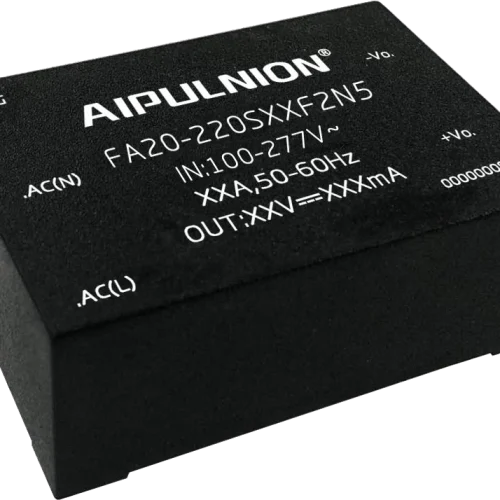

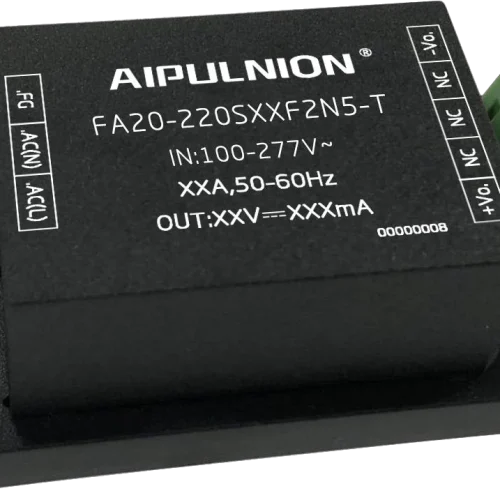

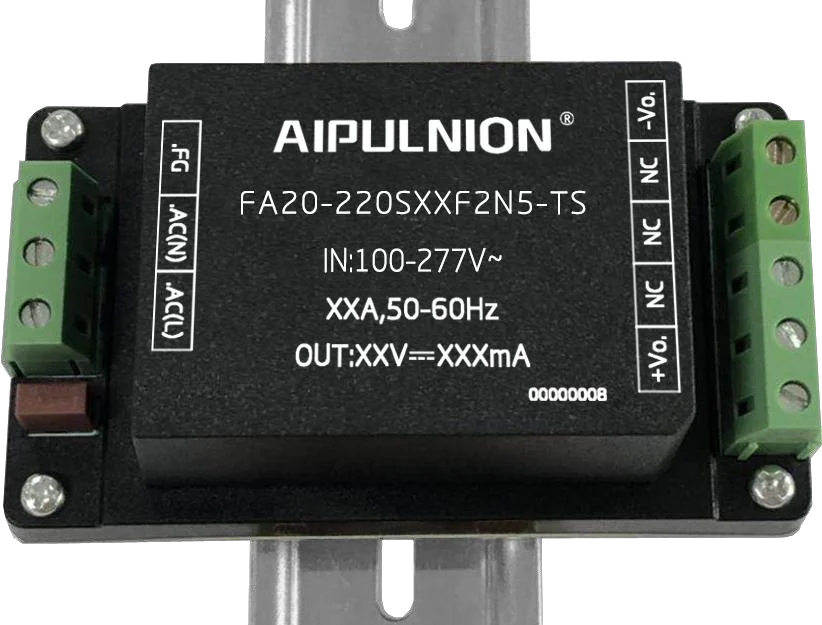

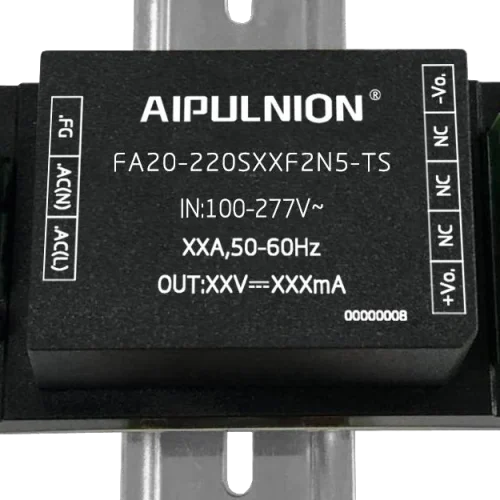

FA20-220SXXF2N5
FA20-220SXXF2N5 series AC-DC enclosed power module, 5 model(s).
The FA20-220SXXF2N5 series is a family of AC-DC enclosed power modules rated 20w with wide input 85-305VAC/120-430VDC.
- FA20-220S05F2N5: 5V / 4000mA output (20wW)
- FA20-220S09F2N5: 9V / 2222mA output
- FA20-220S12F2N5: 12V / 1666mA output
- FA20-220S15F2N5: 15V / 1333mA output
- FA20-220S24F2N5: 24V / 833mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA20-220S05F2N5 | 20W | 85-305VAC/120-430VDC | 5V | 4000mA | 4200 | 62.0 x 45.0 x 22.5 mm | DIP | 1 |
| FA20-220S09F2N5 | 20W | 85-305VAC/120-430VDC | 9V | 2222mA | 4200 | 62.0 x 45.0 x 22.5 mm | DIP | 1 |
| FA20-220S12F2N5 | 20W | 85-305VAC/120-430VDC | 12V | 1666mA | 4200 | 62.0 x 45.0 x 22.5 mm | DIP | 1 |
| FA20-220S15F2N5 | 20W | 85-305VAC/120-430VDC | 15V | 1333mA | 4200 | 62.0 x 45.0 x 22.5 mm | DIP | 1 |
| FA20-220S24F2N5 | 20W | 85-305VAC/120-430VDC | 24V | 833mA | 4200 | 62.0 x 45.0 x 22.5 mm | DIP | 1 |
| Total | 5 models in this series | |||||||
