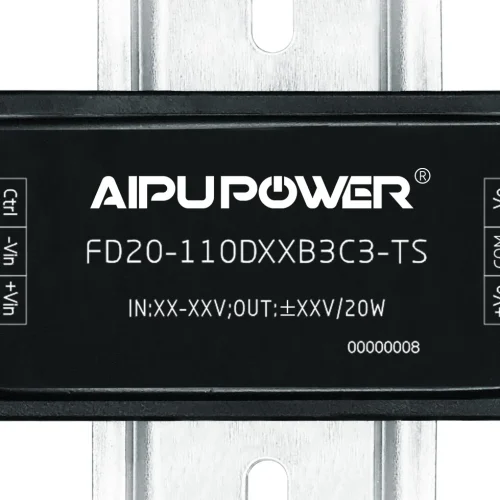

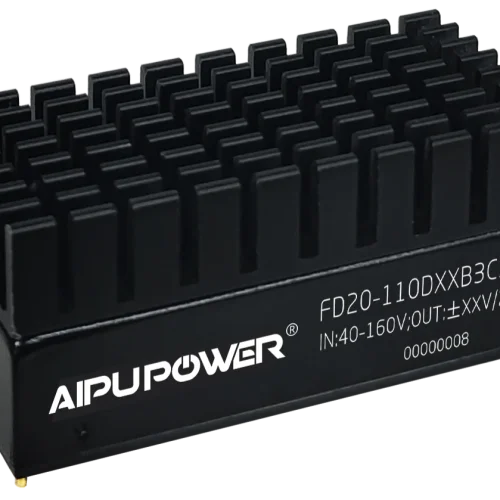

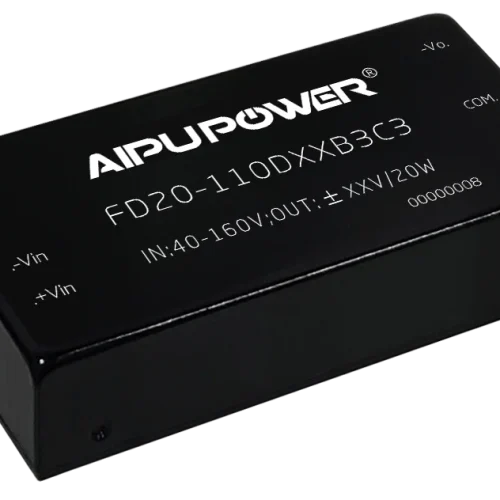

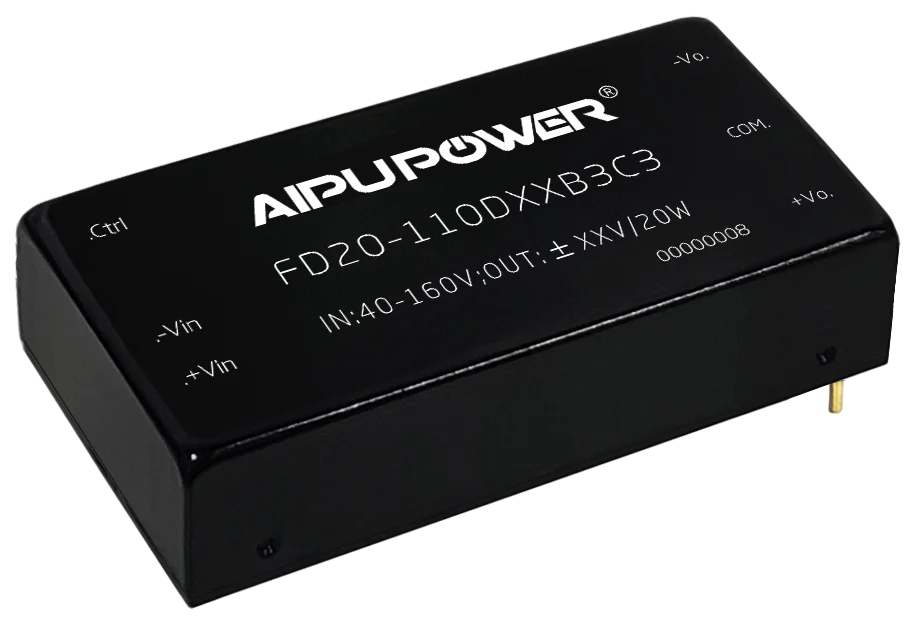

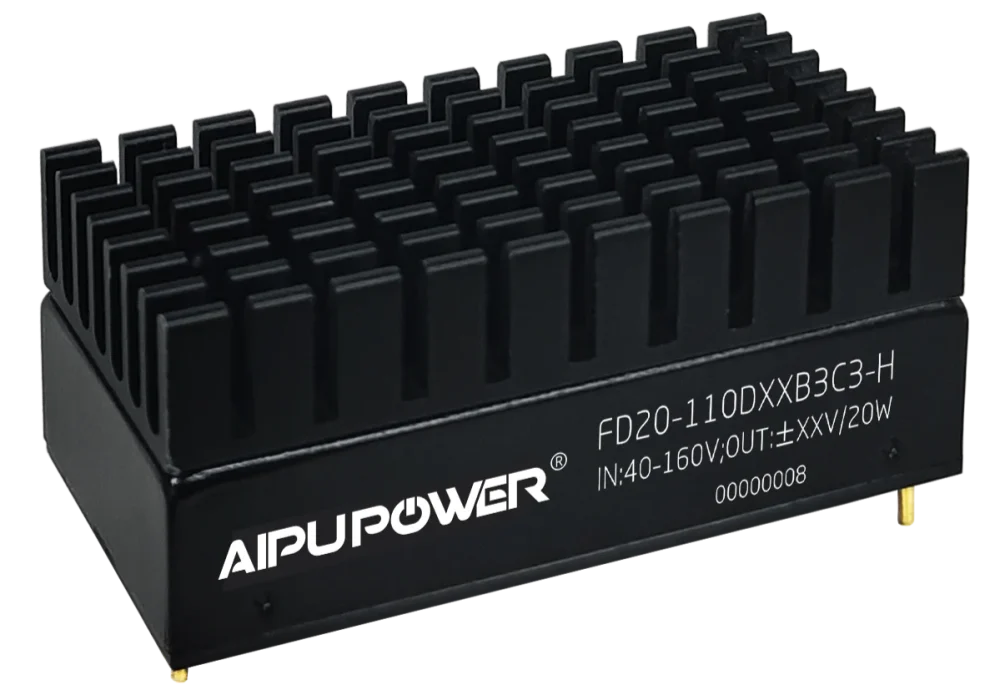

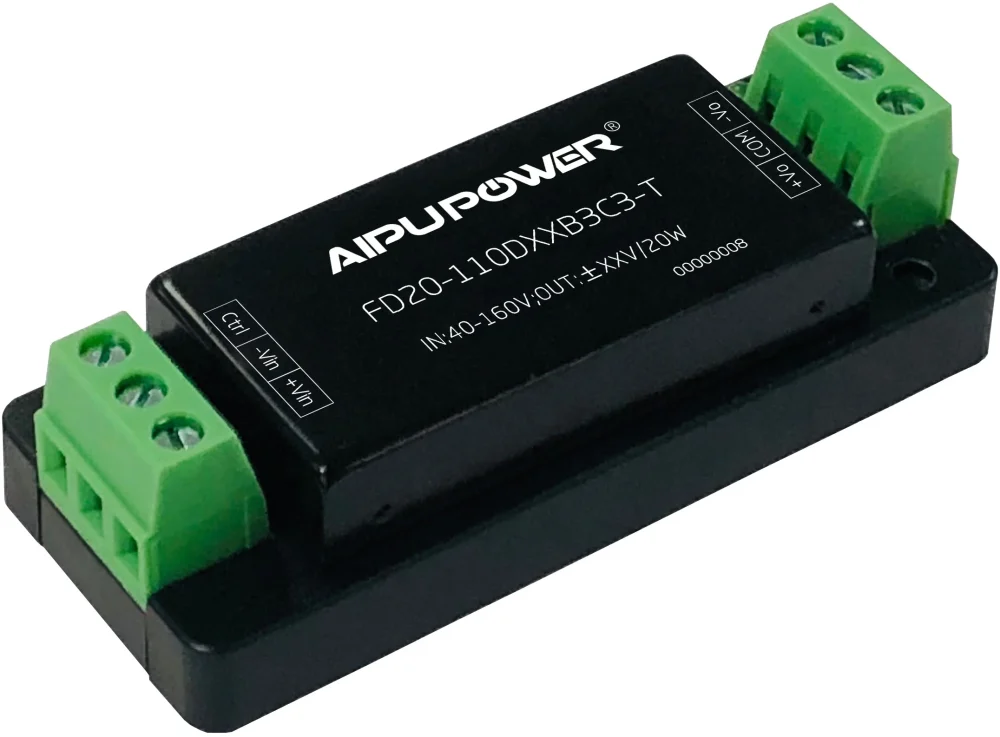

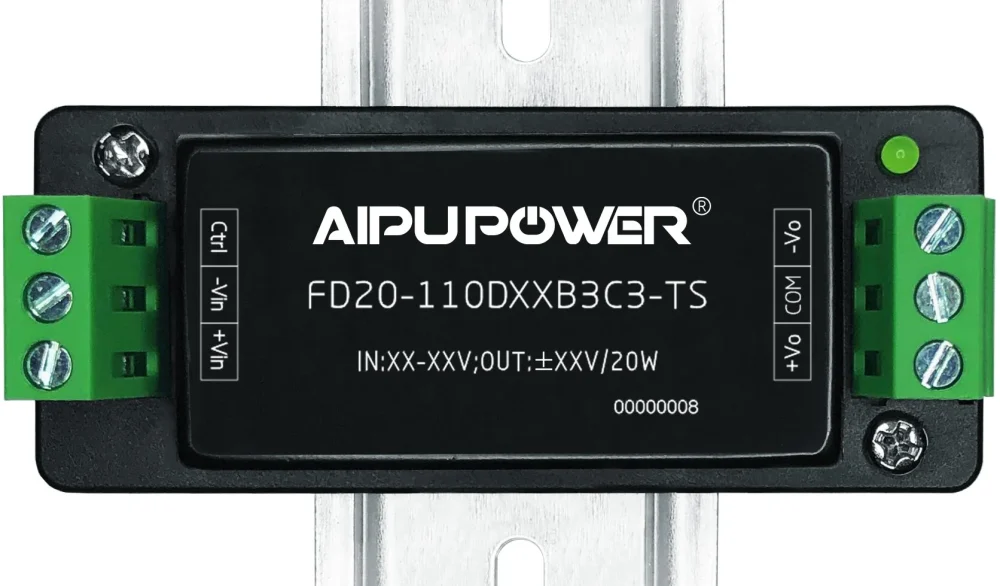

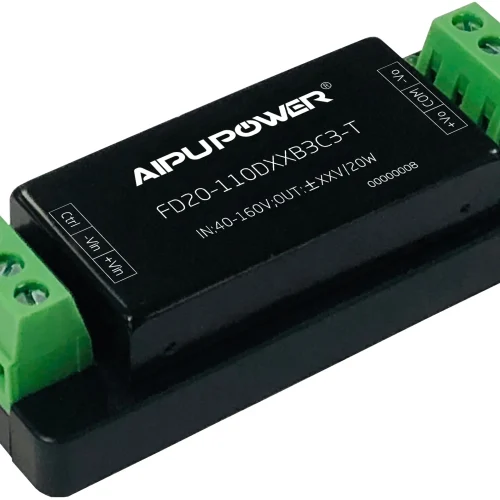

FD20-110DXXB3C3
FD20-110DXXB3C3 series DC-DC DIP power module, 2 model(s).
The FD20-110DXXB3C3 series is a family of DC-DC DIP power modules rated 20w with wide input 40-160.
- FD20-110D15B3C3: +-15V / 667mA output (20wW)
- FD20-110D24B3C3: +-24V / 417mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FD20-110D15B3C3 | 20W | 40-160 | +-15 | 667mA | 3000VDC | 50.8*25.4*13mm | DIP | 2 |
| FD20-110D24B3C3 | 20W | 40-160 | +-24 | 417mA | 3000VDC | 50.8*25.4*13mm | DIP | 2 |
| Total | 2 models in this series | |||||||
Loading preview…
The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.
|
Related products
Add to Quote
This product has multiple variants. The options may be chosen on the product page

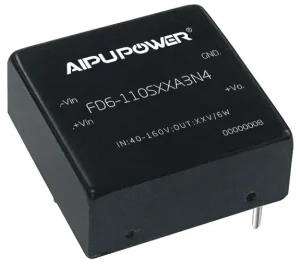

FD6-110SXXA3N4
Add to Quote
This product has multiple variants. The options may be chosen on the product page

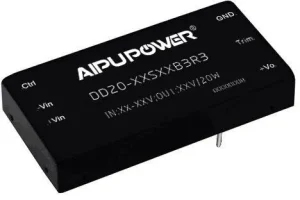

DD20-XXSXXB3R3
Add to Quote
This product has multiple variants. The options may be chosen on the product page

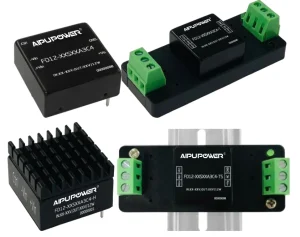

FD12-XXSXXA3(C)4
Add to Quote
This product has multiple variants. The options may be chosen on the product page

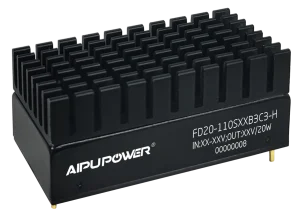

FD20-110SXXB3C3
