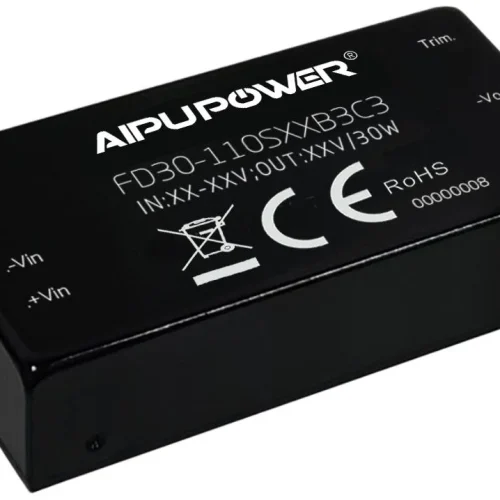

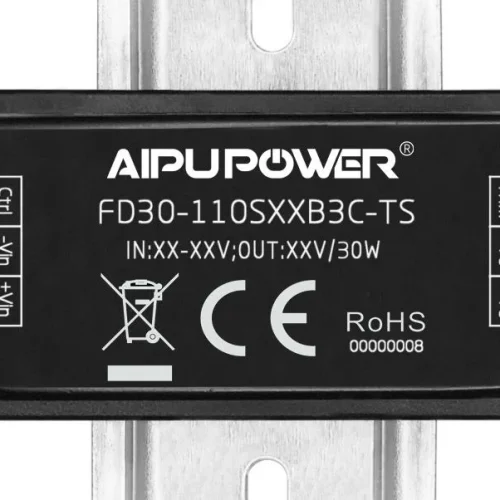

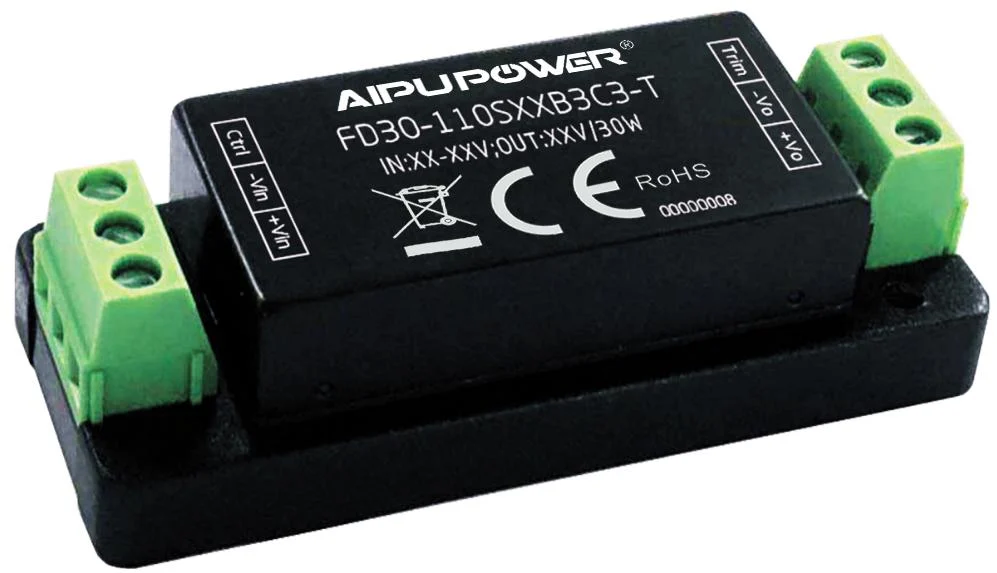

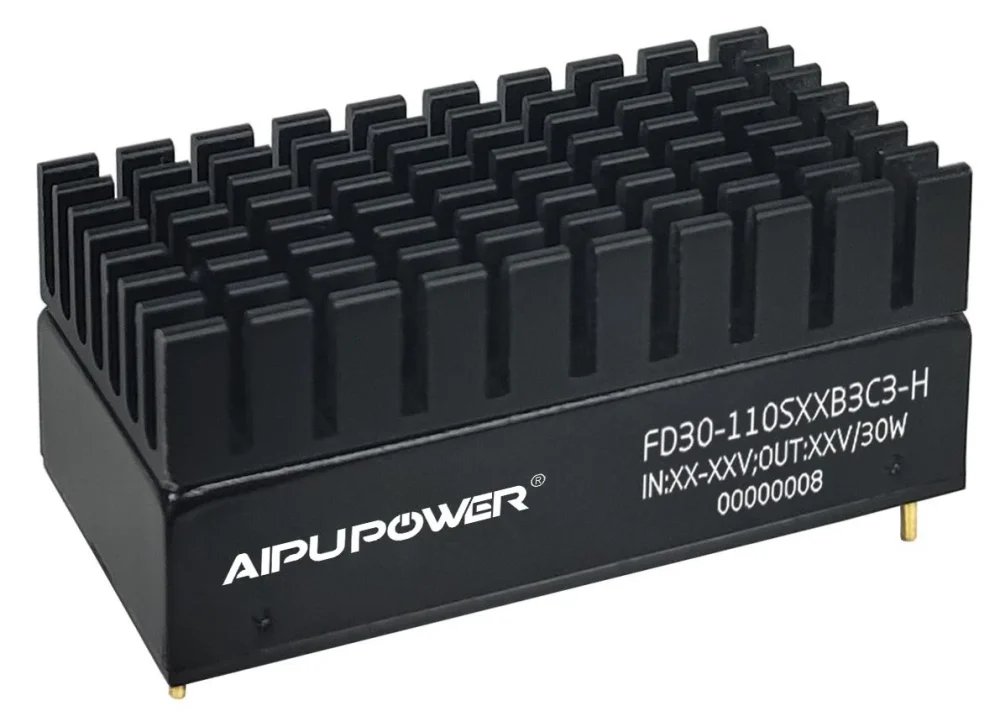

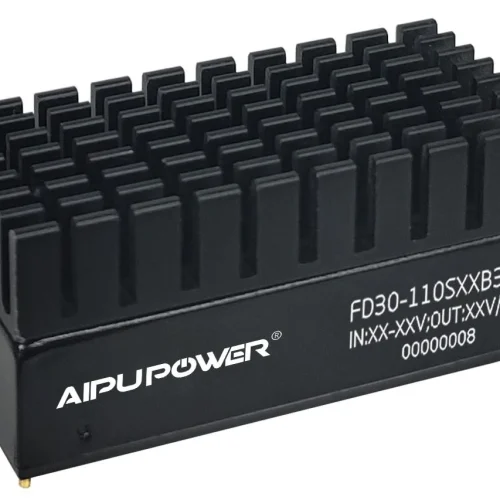

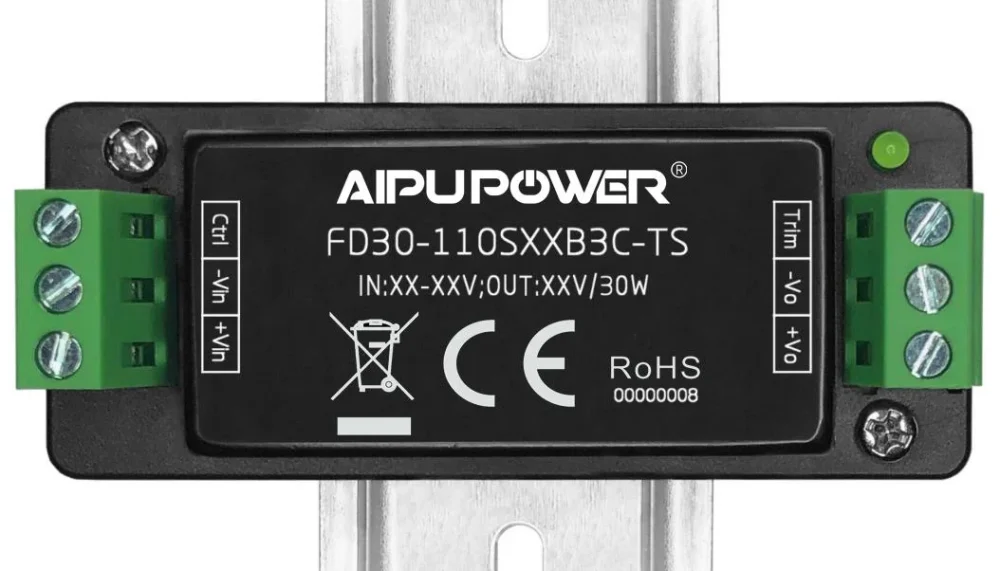

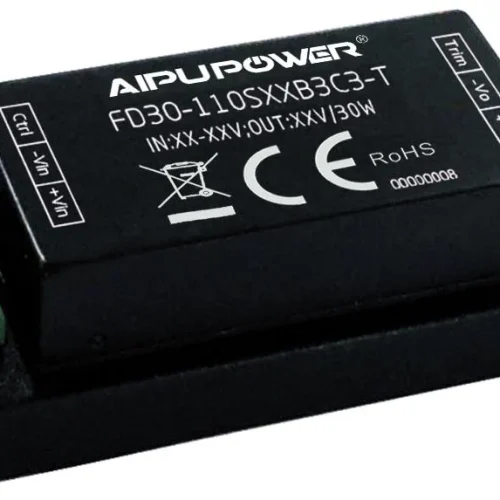

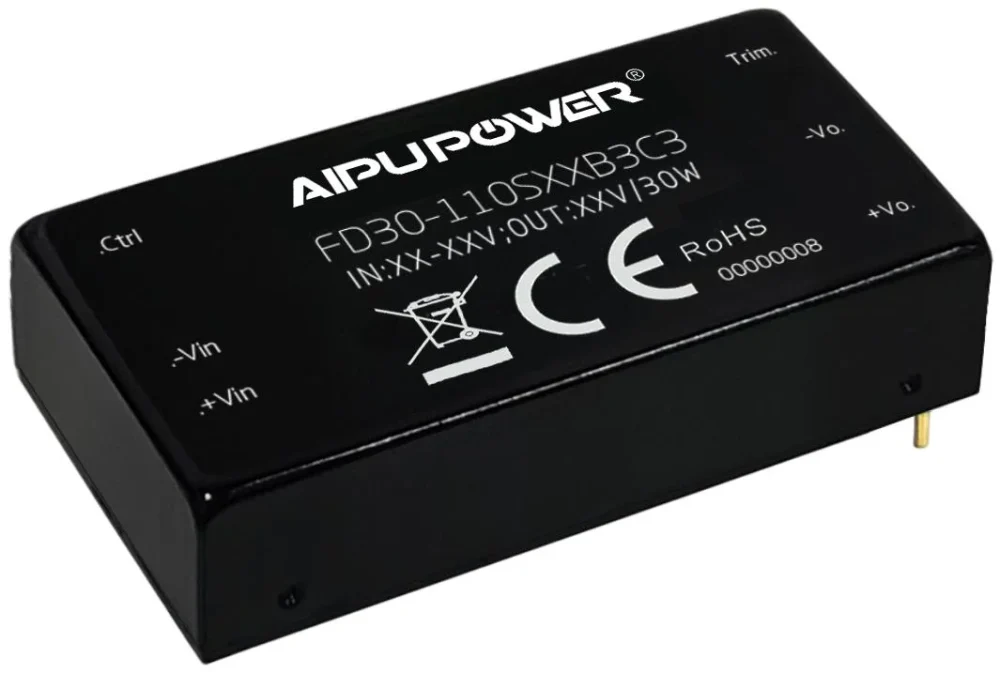

FD30-110SXXB3C3
FD30-110SXXB3C3 series DC-DC DIP power module, 6 model(s).
The FD30-110SXXB3C3 series is a family of DC-DC DIP power modules rated 26.4w / 30w with wide input 40-160.
- FD30-110S3V3B3C3: 3.3V / 8000mA output (26.4wW)
- FD30-110S05B3C3: 5V / 6000mA output (30wW)
- FD30-110S12B3C3: 12V / 2500mA output
- FD30-110S15B3C3: 15V / 2000mA output
- FD30-110S24B3C3: 24V / 1250mA output
- FD30-110S48B3C3: 48V / 625mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FD30-110S3V3B3C3 | 26.4W | 40-160 | 3.3V | 8000mA | 3000 | 50.8*25.4*13 | DIP | 1 |
| FD30-110S05B3C3 | 30W | 40-160 | 5V | 6000mA | 3000 | 50.8*25.4*13 | DIP | 1 |
| FD30-110S12B3C3 | 30W | 40-160 | 12V | 2500mA | 3000 | 50.8*25.4*13 | DIP | 1 |
| FD30-110S15B3C3 | 30W | 40-160 | 15V | 2000mA | 3000 | 50.8*25.4*13 | DIP | 1 |
| FD30-110S24B3C3 | 30W | 40-160 | 24V | 1250mA | 3000 | 50.8*25.4*13 | DIP | 1 |
| FD30-110S48B3C3 | 30W | 40-160 | 48V | 625mA | 3000 | 50.8*25.4*13 | DIP | 1 |
| Total | 6 models in this series | |||||||
