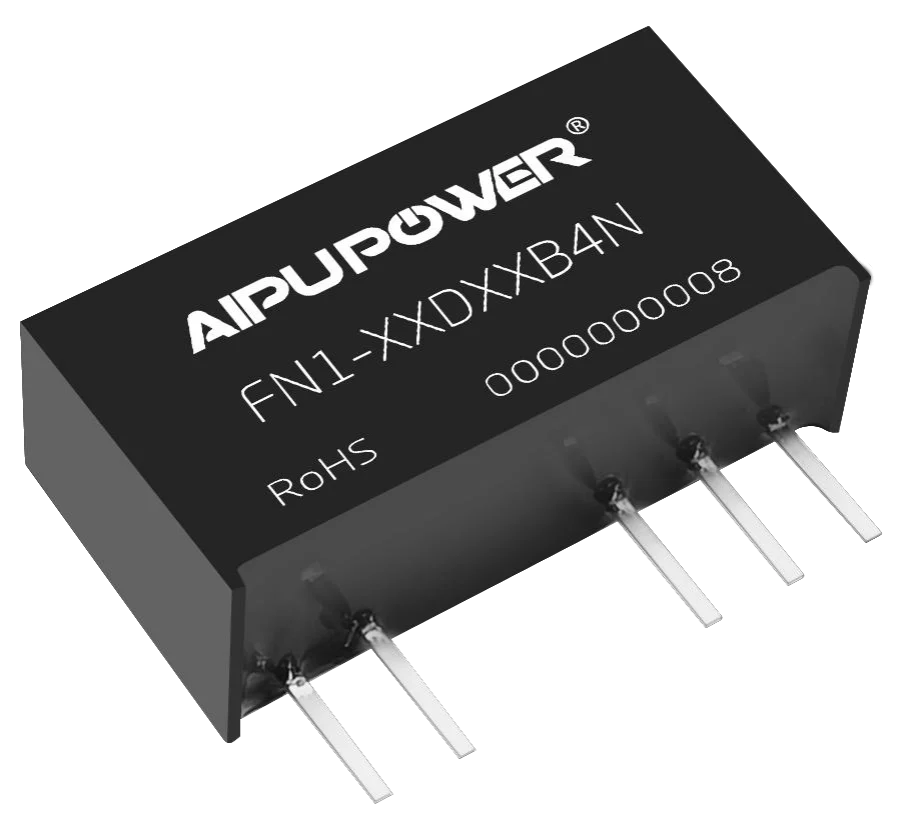

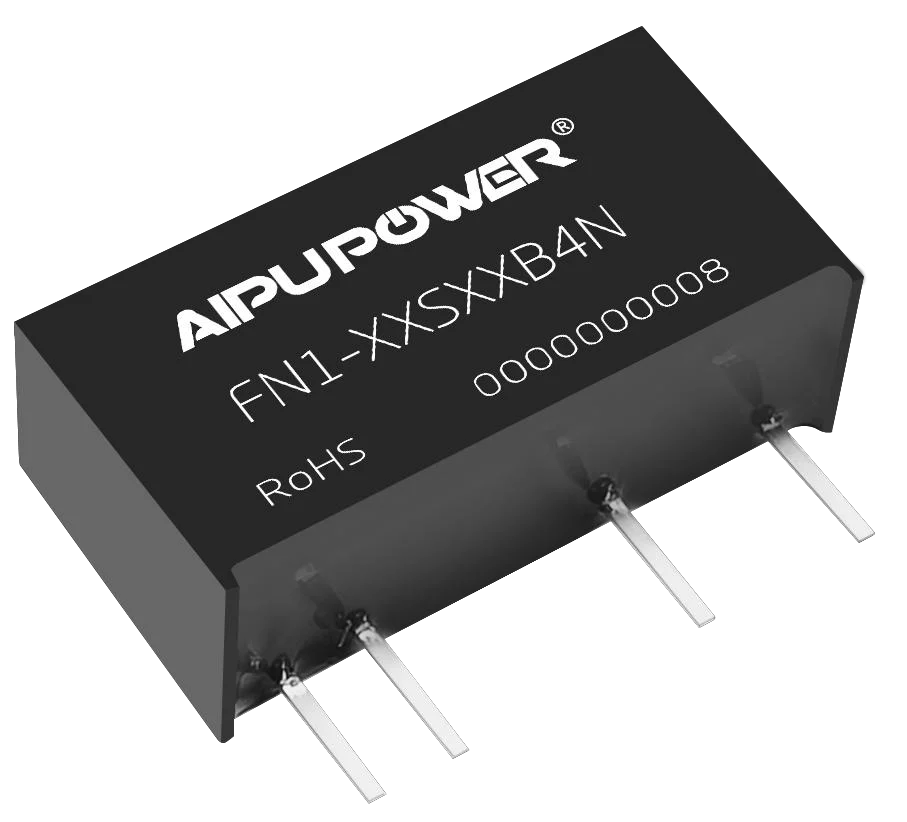

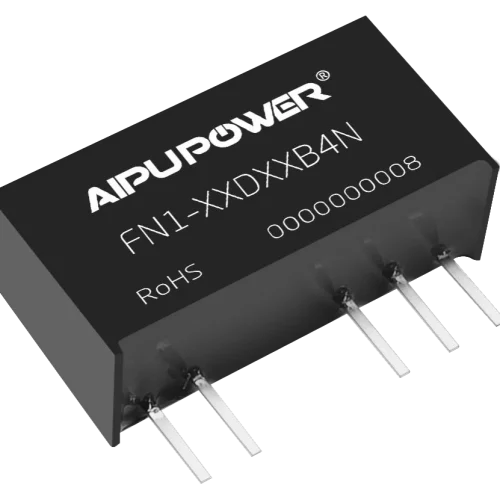

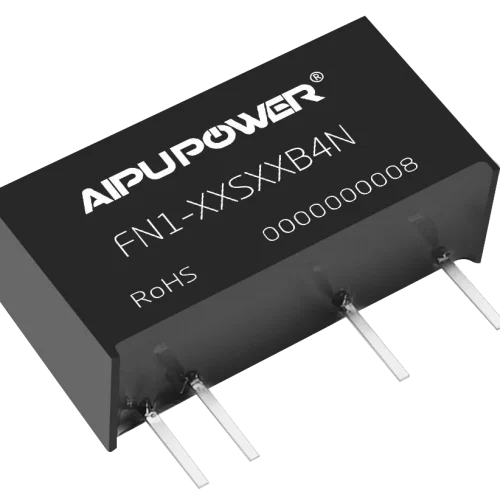

FN1-XXXXB4N series DC-DC SIP power module, 51 model(s).

Quick Inquiry
SKU: FN1-XXXXB4N Category:

The FN1-XXXXB4N series is a family of DC-DC SIP power modules rated 1w with wide input 2.97-3.63.

  • FN1-3V3S3V3B4N: 3.3V / 302mA output (1wW)
  • FN1-3V3S05B4N: 5V / 200mA output
  • FN1-3V3S12B4N: 12V / 84mA output
  • FN1-3V3S15B4N: 15V / 67mA output
  • FN1-3V3S24B4N: 24V / 42mA output
  • FN1-05S3V3B4N: 3.3V / 302mA output
  • FN1-05S05B4N: 5V / 200mA output
  • FN1-05S7V2B4N: 7.2V / 139mA output
  • FN1-05S09B4N: 9V / 111mA output
  • FN1-05S12B4N: 12V / 84mA output
  • FN1-05S15B4N: 15V / 67mA output
  • FN1-05S24B4N: 24V / 42mA output
  • FN1-05D3V3B4N: ±3.3V / ±152mA output
  • FN1-05D05B4N: ±5V / ±100mA output
  • FN1-05D09B4N: ±9V / ±56mA output
  • FN1-05D12B4N: ±12V / ±42mA output
  • FN1-05D15B4N: ±15V / ±33mA output
  • FN1-05D24B4N: ±24V / ±21mA output
  • FN1-09S09B4N: 9V / 111mA output
  • FN1-09S12B4N: 12V / 84mA output
  • FN1-09S15B4N: 15V / 67mA output
  • FN1-12S3V3B4N: 3.3V / 302mA output
  • FN1-12S05B4N: 5V / 200mA output
  • FN1-12S09B4N: 9V / 111mA output
  • FN1-12S12B4N: 12V / 84mA output
  • FN1-12S15B4N: 15V / 67mA output
  • FN1-12S24B4N: 24V / 42mA output
  • FN1-12D05B4N: ±5V / ±100mA output
  • FN1-12D09B4N: ±9V / ±56mA output
  • FN1-12D12B4N: ±12V / ±42mA output
  • FN1-12D15B4N: ±15V / ±33mA output
  • FN1-12D24B4N: ±24V / ±21mA output
  • FN1-15S05B4N: 5V / 200mA output
  • FN1-15S09B4N: 9V / 111mA output
  • FN1-15S12B4N: 12V / 84mA output
  • FN1-15S15B4N: 15V / 67mA output
  • FN1-15S24B4N: 24V / 42mA output
  • FN1-15D05B4N: ±5V / ±100mA output
  • FN1-15D09B4N: ±9V / ±56mA output
  • FN1-15D15B4N: ±15V / ±33mA output
  • FN1-15D24B4N: ±24V / ±21mA output
  • FN1-24S3V3B4N: 3.3V / 302mA output
  • FN1-24S05B4N: 5V / 200mA output
  • FN1-24S09B4N: 9V / 111mA output
  • FN1-24S12B4N: 12V / 84mA output
  • FN1-24S15B4N: 15V / 67mA output
  • FN1-24S24B4N: 24V / 42mA output
  • FN1-24D05B4N: ±5V / ±100mA output
  • FN1-24D09B4N: ±9V / ±56mA output
  • FN1-24D12B4N: ±12V / ±42mA output
  • FN1-24D24B4N: ±24V / ±21mA output

Datasheet, samples and OEM/ODM support available on request.

Variant specification table
Part NumberPowerInput VoltageOutput VoltageOutput CurrentIsolation VoltageSizePackageNo. of Outputs
FN1-3V3S3V3B4N1W2.97-3.633.3V302mA300019.5*6*10SIP1&2
FN1-3V3S05B4N1W2.97-3.635V200mA300019.5*6*10SIP1&2
FN1-3V3S12B4N1W2.97-3.6312V84mA300019.5*6*10SIP1&2
FN1-3V3S15B4N1W2.97-3.6315V67mA300019.5*6*10SIP1&2
FN1-3V3S24B4N1W2.97-3.6324V42mA300019.5*6*10SIP1&2
FN1-05S3V3B4N1W4.5-5.53.3V302mA300019.5*6*10SIP1&2
FN1-05S05B4N1W4.5-5.55V200mA300019.5*6*10SIP1&2
FN1-05S7V2B4N1W4.5-5.57.2V139mA300019.5*6*10SIP1&2
FN1-05S09B4N1W4.5-5.59V111mA300019.5*6*10SIP1&2
FN1-05S12B4N1W4.5-5.512V84mA300019.5*6*10SIP1&2
FN1-05S15B4N1W4.5-5.515V67mA300019.5*6*10SIP1&2
FN1-05S24B4N1W4.5-5.524V42mA300019.5*6*10SIP1&2
FN1-05D3V3B4N1W4.5-5.5±3.3±152mA300019.5*6*10SIP1&2
FN1-05D05B4N1W4.5-5.5±5±100mA300019.5*6*10SIP1&2
FN1-05D09B4N1W4.5-5.5±9±56mA300019.5*6*10SIP1&2
FN1-05D12B4N1W4.5-5.5±12±42mA300019.5*6*10SIP1&2
FN1-05D15B4N1W4.5-5.5±15±33mA300019.5*6*10SIP1&2
FN1-05D24B4N1W4.5-5.5±24±21mA300019.5*6*10SIP1&2
FN1-09S09B4N1W8.1-9.99V111mA300019.5*6*10SIP1&2
FN1-09S12B4N1W8.1-9.912V84mA300019.5*6*10SIP1&2
FN1-09S15B4N1W8.1-9.915V67mA300019.5*6*10SIP1&2
FN1-12S3V3B4N1W10.8-13.23.3V302mA300019.5*6*10SIP1&2
FN1-12S05B4N1W10.8-13.25V200mA300019.5*6*10SIP1&2
FN1-12S09B4N1W10.8-13.29V111mA300019.5*6*10SIP1&2
FN1-12S12B4N1W10.8-13.212V84mA300019.5*6*10SIP1&2
FN1-12S15B4N1W10.8-13.215V67mA300019.5*6*10SIP1&2
FN1-12S24B4N1W10.8-13.224V42mA300019.5*6*10SIP1&2
FN1-12D05B4N1W10.8-13.2±5±100mA300019.5*6*10SIP1&2
FN1-12D09B4N1W10.8-13.2±9±56mA300019.5*6*10SIP1&2
FN1-12D12B4N1W10.8-13.2±12±42mA300019.5*6*10SIP1&2
FN1-12D15B4N1W10.8-13.2±15±33mA300019.5*6*10SIP1&2
FN1-12D24B4N1W10.8-13.2±24±21mA300019.5*6*10SIP1&2
FN1-15S05B4N1W13.5-16.55V200mA300019.5*6*10SIP1&2
FN1-15S09B4N1W13.5-16.59V111mA300019.5*6*10SIP1&2
FN1-15S12B4N1W13.5-16.512V84mA300019.5*6*10SIP1&2
FN1-15S15B4N1W13.5-16.515V67mA300019.5*6*10SIP1&2
FN1-15S24B4N1W13.5-16.524V42mA300019.5*6*10SIP1&2
FN1-15D05B4N1W13.5-16.5±5±100mA300019.5*6*10SIP1&2
FN1-15D09B4N1W13.5-16.5±9±56mA300019.5*6*10SIP1&2
FN1-15D15B4N1W13.5-16.5±15±33mA300019.5*6*10SIP1&2
FN1-15D24B4N1W13.5-16.5±24±21mA300019.5*6*10SIP1&2
FN1-24S3V3B4N1W21.6-26.43.3V302mA300019.5*6*10SIP1&2
FN1-24S05B4N1W21.6-26.45V200mA300019.5*6*10SIP1&2
FN1-24S09B4N1W21.6-26.49V111mA300019.5*6*10SIP1&2
FN1-24S12B4N1W21.6-26.412V84mA300019.5*6*10SIP1&2
FN1-24S15B4N1W21.6-26.415V67mA300019.5*6*10SIP1&2
FN1-24S24B4N1W21.6-26.424V42mA300019.5*6*10SIP1&2
FN1-24D05B4N1W21.6-26.4±5±100mA300019.5*6*10SIP1&2
FN1-24D09B4N1W21.6-26.4±9±56mA300019.5*6*10SIP1&2
FN1-24D12B4N1W21.6-26.4±12±42mA300019.5*6*10SIP1&2
FN1-24D24B4N1W21.6-26.4±24±21mA300019.5*6*10SIP1&2
Total 51 models in this series
fn1-xxxxb4n-datasheet-1.pdfPDF · 829.1 KB
Open in new tabDownload

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Input Voltage (VAC&VDC)

10.8-13.2, 13.5-16.5, 2.97-3.63, 21.6-26.4, 4.5-5.5, 8.1-9.9

Power (W)

1w

Isolation Voltage (VAC)

3000

Output Voltage (VDC)

±12, ±15, ±24, ±3.3, ±5, ±9, 12, 15, 24, 3.3, 5, 7.2, 9

Output Current (mA)

±100, ±152, ±21, ±33, ±42, ±56, 111, 139, 200, 302, 42, 67, 84

Size (mm)

19.5x6x10 mm

Package

SIP

No of Outputs

1 & 2
