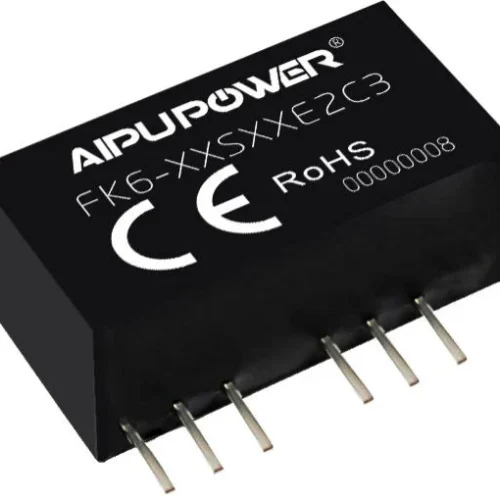

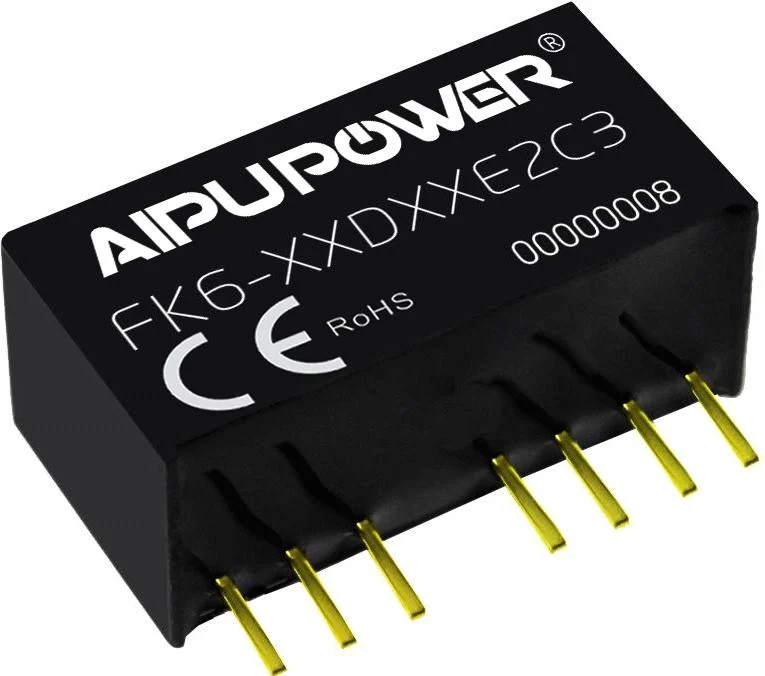

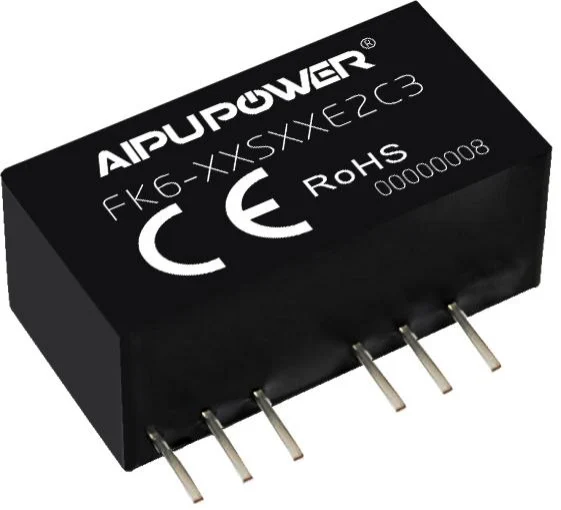

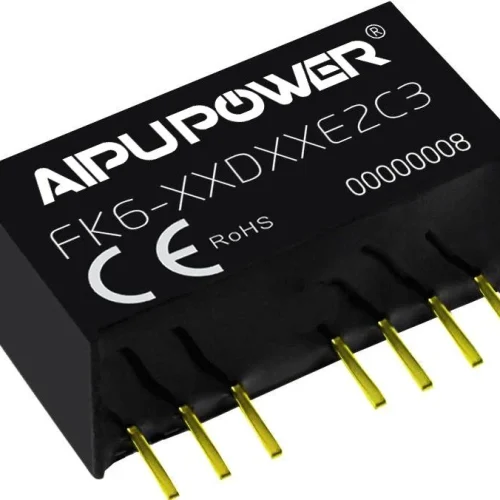

FK6-XXSXXE2C3
FK6-XXSXXE2C3 series DC-DC SIP power module, 12 model(s).
The FK6-XXSXXE2C3 series is a family of DC-DC SIP power modules rated 4.455W / 6w with wide input 9-36.
- FK6-18S3V32C3: 3.3V / 1350mA output (4.455W)
- FK6-18S05E2C3: 5V / 1200mA output (6wW)
- FK6-18S09E2C3: 9V / 667mA output
- FK6-18S12E2C3: 12V / 500mA output
- FK6-18S15E2C3: 15V / 400mA output
- FK6-18S24E2C3: 24V / 250mA output
- FK6-36S33V3E2C3: 3.3V / 1350mA output
- FK6-36S05E2C3: 5V / 1200mA output
- FK6-36S09E2C3: 9V / 667mA output
- FK6-36S12E2C3: 12V / 500mA output
- FK6-36S15E2C3: 15V / 400mA output
- FK6-36S24E2C3: 24V / 250mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FK6-18S3V32C3 | 4.455W | 9-36 | 3.3V | 1350mA | 3000vdc | 22*9.5*12 | SIP | 1 |
| FK6-18S05E2C3 | 6W | 9-36 | 5V | 1200mA | 3000vdc | 22*9.5*12 | SIP | 1 |
| FK6-18S09E2C3 | 6W | 9-36 | 9V | 667mA | 3000vdc | 22*9.5*12 | SIP | 1 |
| FK6-18S12E2C3 | 6W | 9-36 | 12V | 500mA | 3000vdc | 22*9.5*12 | SIP | 1 |
| FK6-18S15E2C3 | 6W | 9-36 | 15V | 400mA | 3000vdc | 22*9.5*12 | SIP | 1 |
| FK6-18S24E2C3 | 6W | 9-36 | 24V | 250mA | 3000vdc | 22*9.5*12 | SIP | 1 |
| FK6-36S33V3E2C3 | 6W | 18-75 | 3.3V | 1350mA | 3000vdc | 22*9.5*12 | SIP | 1 |
| FK6-36S05E2C3 | 6W | 18-75 | 5V | 1200mA | 3000vdc | 22*9.5*12 | SIP | 1 |
| FK6-36S09E2C3 | 6W | 18-75 | 9V | 667mA | 3000vdc | 22*9.5*12 | SIP | 1 |
| FK6-36S12E2C3 | 6W | 18-75 | 12V | 500mA | 3000vdc | 22*9.5*12 | SIP | 1 |
| FK6-36S15E2C3 | 6W | 18-75 | 15V | 400mA | 3000vdc | 22*9.5*12 | SIP | 1 |
| FK6-36S24E2C3 | 6W | 18-75 | 24V | 250mA | 3000vdc | 22*9.5*12 | SIP | 1 |
| Total | 12 models in this series | |||||||
Loading preview…
The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.
|
Related products
Add to Quote
This product has multiple variants. The options may be chosen on the product page
FN1-XXXXBMR3
Add to Quote
This product has multiple variants. The options may be chosen on the product page

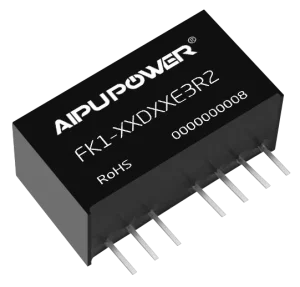

FK1-XXXXE3R2
