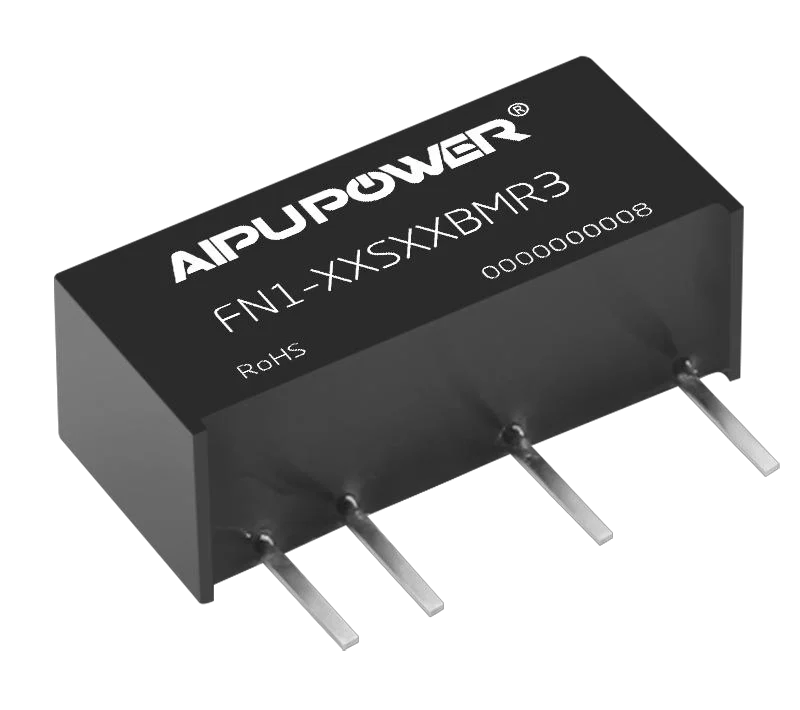

FN1-XXXXBMR3

Name: FN1-XXXXBMR3
Brand: Tuopu
SKU: FN1-XXXXBMR3
Availability: InStock

FN1-XXXXBMR3 series DC-DC SIP power module, 23 model(s).

Model

Clear

Quick Inquiry

SKU: FN1-XXXXBMR3 Category: DC-DC SIP

The FN1-XXXXBMR3 series is a family of DC-DC SIP power modules rated 1w with wide input 2.97-3.63.

FN1-3V3S3V3BMR3: 3.3V / 302mA output (1wW)
FN1-3V3S05BMR3: 5V / 200mA output
FN1-3V3S12BMR3: 12V / 84mA output
FN1-3V3S15BMR3: 15V / 67mA output
FN1-05S3V3BMR3: 3.3V / 302mA output
FN1-05S05BMR3: 5V / 200mA output
FN1-05S09BMR3: 9V / 111mA output
FN1-05S12BMR3: 12V / 84mA output
FN1-05S15BMR3: 15V / 67mA output
FN1-12S3V3BMR3: 3.3V / 302mA output
FN1-12S05BMR3: 5V / 200mA output
FN1-12S09BMR3: 9V / 111mA output
FN1-12S12BMR3: 12V / 84mA output
FN1-12S15BMR3: 15V / 67mA output
FN1-15S3V3BMR3: 3.3V / 303mA output
FN1-15S05BMR3: 5V / 200mA output
FN1-15S12BMR3: 12V / 84mA output
FN1-15S15BMR3: 15V / 67mA output
FN1-24S3V3BMR3: 3.3V / 302mA output
FN1-24S05BMR3: 5V / 200mA output
FN1-24S09BMR3: 9V / 111mA output
FN1-24S12BMR3: 12V / 84mA output
FN1-24S15BMR3: 15V / 67mA output

Datasheet, samples and OEM/ODM support available on request.

Part Number	Power	Input Voltage	Output Voltage	Output Current	Isolation Voltage	Size	Package	No. of Outputs
FN1-3V3S3V3BMR3	1W	2.97-3.63	3.3V	302mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-3V3S05BMR3	1W	2.97-3.63	5V	200mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-3V3S12BMR3	1W	2.97-3.63	12V	84mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-3V3S15BMR3	1W	2.97-3.63	15V	67mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-05S3V3BMR3	1W	4.5-5.5	3.3V	302mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-05S05BMR3	1W	4.5-5.5	5V	200mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-05S09BMR3	1W	4.5-5.5	9V	111mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-05S12BMR3	1W	4.5-5.5	12V	84mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-05S15BMR3	1W	4.5-5.5	15V	67mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-12S3V3BMR3	1W	10.8-13.2	3.3V	302mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-12S05BMR3	1W	10.8-13.2	5V	200mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-12S09BMR3	1W	10.8-13.2	9V	111mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-12S12BMR3	1W	10.8-13.2	12V	84mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-12S15BMR3	1W	10.8-13.2	15V	67mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-15S3V3BMR3	1W	13.5-16.5	3.3V	303mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-15S05BMR3	1W	13.5-16.5	5V	200mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-15S12BMR3	1W	13.5-16.5	12V	84mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-15S15BMR3	1W	13.5-16.5	15V	67mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-24S3V3BMR3	1W	21.6-26.4	3.3V	302mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-24S05BMR3	1W	21.6-26.4	5V	200mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-24S09BMR3	1W	21.6-26.4	9V	111mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-24S12BMR3	1W	21.6-26.4	12V	84mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
FN1-24S15BMR3	1W	21.6-26.4	15V	67mA	3000	16.50× 6.00 × 7.50 mm	SIP	1
Total	23 models in this series

fn1-xxxxbmr3-datasheet-1.pdfPDF · 632.3 KB

Open in new tab Download

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Input Voltage (VAC&VDC)	10.8-13.2, 13.5-16.5, 2.97-3.63, 21.6-26.4, 4.5-5.5
Power (W)	1w
Isolation Voltage (VAC)	3000
Output Voltage (VDC)	12, 15, 3.3, 5, 9
Output Current (mA)	111, 200, 302, 303, 67, 84
Size (mm)	16.50×6.00×7.50 mm
Package	SIP
No of Outputs	1
