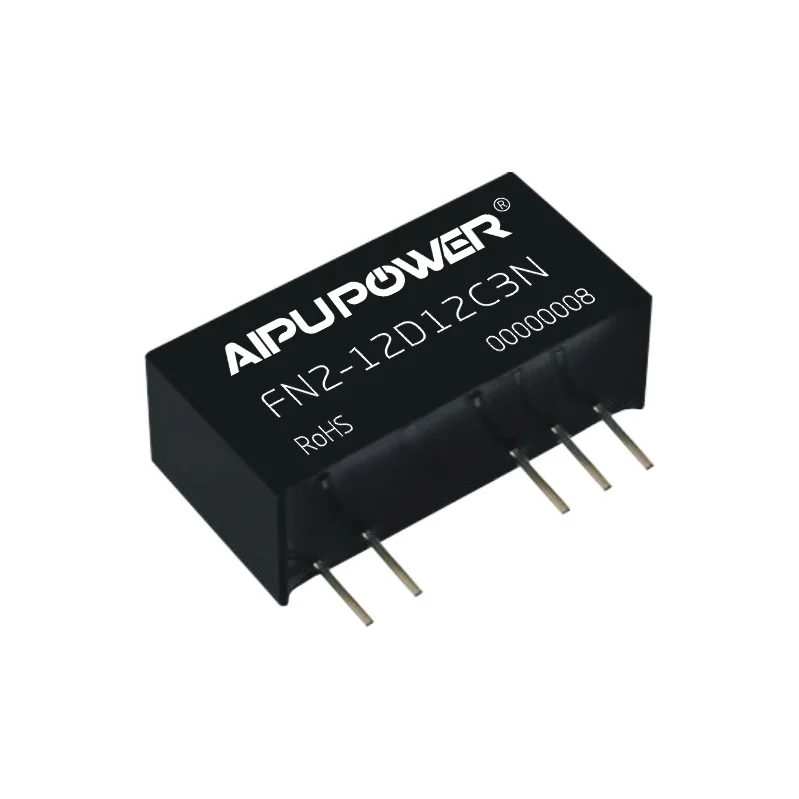

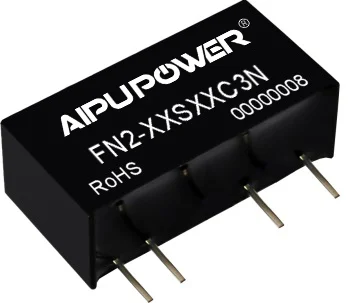

FN2-XXXXXC3N series DC-DC SIP power module, 31 model(s).

Quick Inquiry
SKU: FN2-XXXXXC3N Category:

The FN2-XXXXXC3N series is a family of DC-DC SIP power modules rated 2w with wide input 4.5-5.5.

  • FN2-05D05C3N: ±5V / ±200mA output (2wW)
  • FN2-05D09C3N: ±9V / ±111mA output
  • FN2-05D12C3N: ±12V / ±84mA output
  • FN2-05D15C3N: ±15V / ±67mA output
  • FN2-12D05C3N: ±5V / ±200mA output
  • FN2-12D09C3N: ±9V / ±111mA output
  • FN2-12D12C3N: ±12V / ±84mA output
  • FN2-12D12V5C3N: ±12.5V / ±80mA output
  • FN2-12D15C3N: ±15V / ±67mA output
  • FN2-15D15C3N: ±15V / ±67mA output
  • FN2-24D05C3N: ±5V / ±200mA output
  • FN2-24D09C3N: ±9V / ±111mA output
  • FN2-24D12C3N: ±12V / ±84mA output
  • FN2-24D15C3N: ±15V / ±67mA output
  • FN2-05S3V3C3N: 3.3V / 600mA output
  • FN2-05S05C3N: 5V / 400mA output
  • FN2-05S09C3N: 9V / 220mA output
  • FN2-05S12C3N: 12V / 167mA output
  • FN2-05S15C3N: 15V / 133mA output
  • FN2-05S24C3N: 24V / 84mA output
  • FN2-12S05C3N: 5V / 400mA output
  • FN2-12S09C3N: 9V / 220mA output
  • FN2-12S12C3N: 12V / 167mA output
  • FN2-12S15C3N: 15V / 133mA output
  • FN2-12S24C3N: 24V / 84mA output
  • FN2-24S3V3C3N: 3.3V / 600mA output
  • FN2-24S05C3N: 5V / 400mA output
  • FN2-24S09C3N: 9V / 220mA output
  • FN2-24S12C3N: 12V / 167mA output
  • FN2-24S15C3N: 15V / 133mA output
  • FN2-24S24C3N: 24V / 84mA output

Datasheet, samples and OEM/ODM support available on request.

Variant specification table
Part NumberPowerInput VoltageOutput VoltageOutput CurrentIsolation VoltageSizePackageNo. of Outputs
FN2-05D05C3N2W4.5-5.5±5±200mA3000vdc19.5*7*10SIP1&2
FN2-05D09C3N2W4.5-5.5±9±111mA3000vdc19.5*7*10SIP1&2
FN2-05D12C3N2W4.5-5.5±12±84mA3000vdc19.5*7*10SIP1&2
FN2-05D15C3N2W4.5-5.5±15±67mA3000vdc19.5*7*10SIP1&2
FN2-12D05C3N2W10.8-13.2±5±200mA3000vdc19.5*7*10SIP1&2
FN2-12D09C3N2W10.8-13.2±9±111mA3000vdc19.5*7*10SIP1&2
FN2-12D12C3N2W10.8-13.2±12±84mA3000vdc19.5*7*10SIP1&2
FN2-12D12V5C3N2W10.8-13.2±12.5±80mA3000vdc19.5*7*10SIP1&2
FN2-12D15C3N2W10.8-13.2±15±67mA3000vdc19.5*7*10SIP1&2
FN2-15D15C3N2W13.5-16.5±15±67mA3000vdc19.5*7*10SIP1&2
FN2-24D05C3N2W21.6-26.4±5±200mA3000vdc19.5*7*10SIP1&2
FN2-24D09C3N2W21.6-26.4±9±111mA3000vdc19.5*7*10SIP1&2
FN2-24D12C3N2W21.6-26.4±12±84mA3000vdc19.5*7*10SIP1&2
FN2-24D15C3N2W21.6-26.4±15±67mA3000vdc19.5*7*10SIP1&2
FN2-05S3V3C3N2W4.5-5.53.3V600mA3000vdc19.5*7*10SIP1&2
FN2-05S05C3N2W4.5-5.55V400mA3000vdc19.5*7*10SIP1&2
FN2-05S09C3N2W4.5-5.59V220mA3000vdc19.5*7*10SIP1&2
FN2-05S12C3N2W4.5-5.512V167mA3000vdc19.5*7*10SIP1&2
FN2-05S15C3N2W4.5-5.515V133mA3000vdc19.5*7*10SIP1&2
FN2-05S24C3N2W4.5-5.524V84mA3000vdc19.5*7*10SIP1&2
FN2-12S05C3N2W10.8-13.25V400mA3000vdc19.5*7*10SIP1&2
FN2-12S09C3N2W10.8-13.29V220mA3000vdc19.5*7*10SIP1&2
FN2-12S12C3N2W10.8-13.212V167mA3000vdc19.5*7*10SIP1&2
FN2-12S15C3N2W10.8-13.215V133mA3000vdc19.5*7*10SIP1&2
FN2-12S24C3N2W10.8-13.224V84mA3000vdc19.5*7*10SIP1&2
FN2-24S3V3C3N2W21.6-26.43.3V600mA3000vdc19.5*7*10SIP1&2
FN2-24S05C3N2W21.6-26.45V400mA3000vdc19.5*7*10SIP1&2
FN2-24S09C3N2W21.6-26.49V220mA3000vdc19.5*7*10SIP1&2
FN2-24S12C3N2W21.6-26.412V167mA3000vdc19.5*7*10SIP1&2
FN2-24S15C3N2W21.6-26.415V133mA3000vdc19.5*7*10SIP1&2
FN2-24S24C3N2W21.6-26.424V84mA3000vdc19.5*7*10SIP1&2
Total 31 models in this series
fn2-xxxxxc3n-datasheet-1.pdfPDF · 777.9 KB
Open in new tabDownload

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Input Voltage (VAC&VDC)

10.8-13.2, 13.5-16.5, 21.6-26.4, 4.5-5.5

Power (W)

2w

Isolation Voltage (VAC)

3000vdc

Output Voltage (VDC)

±12, ±12.5, ±15, ±5, ±9, 12, 15, 24, 3.3, 5, 9

Output Current (mA)

±111, ±200, ±67, ±80, ±84, 133, 167, 220, 400, 600, 84

Size (mm)

19.5x7x10 mm

Package

SIP

No of Outputs

1 & 2
