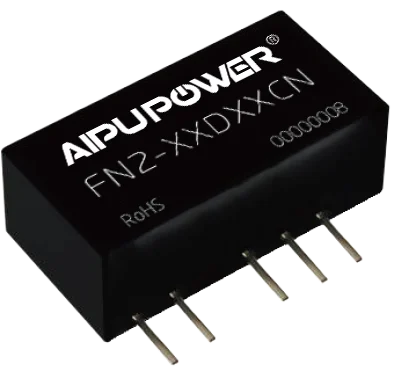

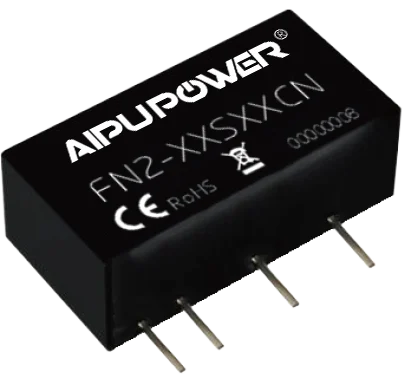

FN2-XXXXXCN series DC-DC SIP power module, 32 model(s).

Quick Inquiry
SKU: FN2-XXXXXCN Category:

The FN2-XXXXXCN series is a family of DC-DC SIP power modules rated 2w with wide input 4.5-5.5.

  • FN2-05S3V3CN: 3.3V / 600mA output (2wW)
  • FN2-05S05CN: 5V / 400mA output
  • FN2-05S09CN: 9V / 220mA output
  • FN2-05S12CN: 12V / 167mA output
  • FN2-05S15CN: 15V / 133mA output
  • FN2-05S24CN: 24V / 84mA output
  • FN2-12S05CN: 5V / 400mA output
  • FN2-12S09CN: 9V / 220mA output
  • FN2-12S12CN: 12V / 167mA output
  • FN2-12S15CN: 15V / 133mA output
  • FN2-12S24CN: 24V / 84mA output
  • FN2-15S05CN: 5V / 400mA output
  • FN2-24S3V3CN: 3.3V / 600mA output
  • FN2-24S05CN: 5V / 400mA output
  • FN2-24S09CN: 9V / 220mA output
  • FN2-24S12CN: 12V / 167mA output
  • FN2-24S15CN: 15V / 133mA output
  • FN2-24S24CN: 24V / 84mA output
  • FN2-05D3V3CN: ±3.3V / ±303mA output
  • FN2-05D05CN: ±5V / ±200mA output
  • FN2-05D09CN: ±9V / ±110mA output
  • FN2-05D12CN: ±12V / ±84mA output
  • FN2-05D15CN: ±15V / ±67mA output
  • FN2-12D05CN: ±5V / ±200mA output
  • FN2-12D09CN: ±9V / ±110mA output
  • FN2-12D12CN: ±12V / ±84mA output
  • FN2-12D15CN: ±15V / ±67mA output
  • FN2-15D15CN: ±15V / ±67mA output
  • FN2-24D05CN: ±5V / ±200mA output
  • FN2-24D09CN: ±9V / ±110mA output
  • FN2-24D12CN: ±12V / ±84mA output
  • FN2-24D15CN: ±15V / ±67mA output

Datasheet, samples and OEM/ODM support available on request.

Variant specification table
Part NumberPowerInput VoltageOutput VoltageOutput CurrentIsolation VoltageSizePackageNo. of Outputs
FN2-05S3V3CN2W4.5-5.53.3V600mA150019.5*7*10SIP1&2
FN2-05S05CN2W4.5-5.55V400mA150019.5*7*10SIP1&2
FN2-05S09CN2W4.5-5.59V220mA150019.5*7*10SIP1&2
FN2-05S12CN2W4.5-5.512V167mA150019.5*7*10SIP1&2
FN2-05S15CN2W4.5-5.515V133mA150019.5*7*10SIP1&2
FN2-05S24CN2W4.5-5.524V84mA150019.5*7*10SIP1&2
FN2-12S05CN2W10.8-13.25V400mA150019.5*7*10SIP1&2
FN2-12S09CN2W10.8-13.29V220mA150019.5*7*10SIP1&2
FN2-12S12CN2W10.8-13.212V167mA150019.5*7*10SIP1&2
FN2-12S15CN2W10.8-13.215V133mA150019.5*7*10SIP1&2
FN2-12S24CN2W10.8-13.224V84mA150019.5*7*10SIP1&2
FN2-15S05CN2W13.5-16.55V400mA150019.5*7*10SIP1&2
FN2-24S3V3CN2W21.6-26.43.3V600mA150019.5*7*10SIP1&2
FN2-24S05CN2W21.6-26.45V400mA150019.5*7*10SIP1&2
FN2-24S09CN2W21.6-26.49V220mA150019.5*7*10SIP1&2
FN2-24S12CN2W21.6-26.412V167mA150019.5*7*10SIP1&2
FN2-24S15CN2W21.6-26.415V133mA150019.5*7*10SIP1&2
FN2-24S24CN2W21.6-26.424V84mA150019.5*7*10SIP1&2
FN2-05D3V3CN2W4.5-5.5±3.3±303mA150019.5*7*10SIP1&2
FN2-05D05CN2W4.5-5.5±5±200mA150019.5*7*10SIP1&2
FN2-05D09CN2W4.5-5.5±9±110mA150019.5*7*10SIP1&2
FN2-05D12CN2W4.5-5.5±12±84mA150019.5*7*10SIP1&2
FN2-05D15CN2W4.5-5.5±15±67mA150019.5*7*10SIP1&2
FN2-12D05CN2W10.8-13.2±5±200mA150019.5*7*10SIP1&2
FN2-12D09CN2W10.8-13.2±9±110mA150019.5*7*10SIP1&2
FN2-12D12CN2W10.8-13.2±12±84mA150019.5*7*10SIP1&2
FN2-12D15CN2W10.8-13.2±15±67mA150019.5*7*10SIP1&2
FN2-15D15CN2W13.5-16.5±15±67mA150019.5*7*10SIP1&2
FN2-24D05CN2W21.6-26.4±5±200mA150019.5*7*10SIP1&2
FN2-24D09CN2W21.6-26.4±9±110mA150019.5*7*10SIP1&2
FN2-24D12CN2W21.6-26.4±12±84mA150019.5*7*10SIP1&2
FN2-24D15CN2W21.6-26.4±15±67mA150019.5*7*10SIP1&2
Total 32 models in this series
fn2-xxxxxcn-datasheet-1.pdfPDF · 1.8 MB
Open in new tabDownload

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Input Voltage (VAC&VDC)

10.8-13.2, 13.5-16.5, 21.6-26.4, 4.5-5.5

Power (W)

2w

Isolation Voltage (VAC)

1500

Output Voltage (VDC)

±12, ±15, ±3.3, ±5, ±9, 12, 15, 24, 3.3, 5, 9

Output Current (mA)

±110, ±200, ±303, ±67, ±84, 133, 167, 220, 400, 600, 84

Size (mm)

19.5x7x10 mm

Package

SIP

No of Outputs

1 & 2
