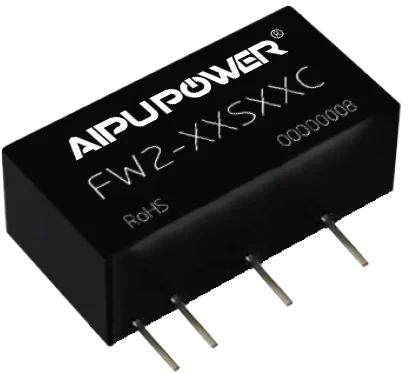

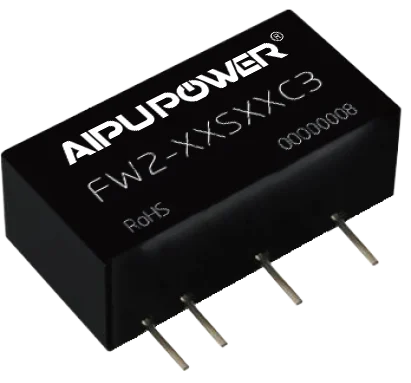

FW2-XXSXXC series DC-DC SIP power module, 9 model(s).

Quick Inquiry
SKU: FW2-XXSXXC Category:

The FW2-XXSXXC series is a family of DC-DC SIP power modules rated 2w with wide input 4.75-5.25.

  • FW2-05S05C: 5V / 400mA output (2wW)
  • FW2-05S12C: 12V / 167mA output
  • FW2-12S05C: 5V / 400mA output
  • FW2-12S12C: 12V / 167mA output
  • FW2-15S05C: 5V / 400mA output
  • FW2-15S15C: 15V / 100mA output
  • FW2-24S05C: 5V / 400mA output
  • FW2-24S12C: 12V / 167mA output
  • FW2-24S15C: 15V / 133mA output

Datasheet, samples and OEM/ODM support available on request.

Variant specification table
Part NumberPowerInput VoltageOutput VoltageOutput CurrentIsolation VoltageSizePackageNo. of Outputs
FW2-05S05C2W4.75-5.255V400mA1500vdc19.5*7*10SIP1
FW2-05S12C2W4.75-5.2512V167mA1500vdc19.5*7*10SIP1
FW2-12S05C2W11.4-12.65V400mA1500vdc19.5*7*10SIP1
FW2-12S12C2W11.4-12.612V167mA1500vdc19.5*7*10SIP1
FW2-15S05C2W14.27-15.755V400mA1500vdc19.5*7*10SIP1
FW2-15S15C2W14.27-15.7515V100mA1500vdc19.5*7*10SIP1
FW2-24S05C2W22.8-25.25V400mA1500vdc19.5*7*10SIP1
FW2-24S12C2W22.8-25.212V167mA1500vdc19.5*7*10SIP1
FW2-24S15C2W22.8-25.215V133mA1500vdc19.5*7*10SIP1
Total 9 models in this series
fw2-xxsxxc-datasheet-1.pdfPDF · 696.4 KB
Open in new tabDownload

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Input Voltage (VAC&VDC)

11.4-12.6, 14.27-15.75, 22.8-25.2, 4.75-5.25

Power (W)

2w

Isolation Voltage (VAC)

1500vdc

Output Voltage (VDC)

12, 15, 5

Output Current (mA)

100, 133, 167, 400

Size (mm)

19.5x7x10 mm

Package

SIP

No of Outputs

1
