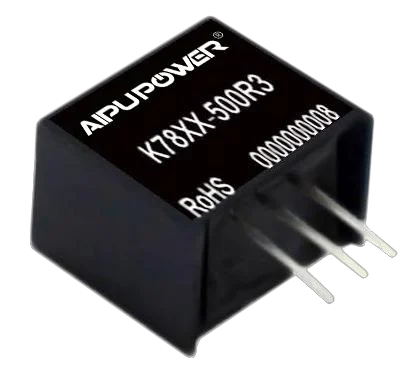

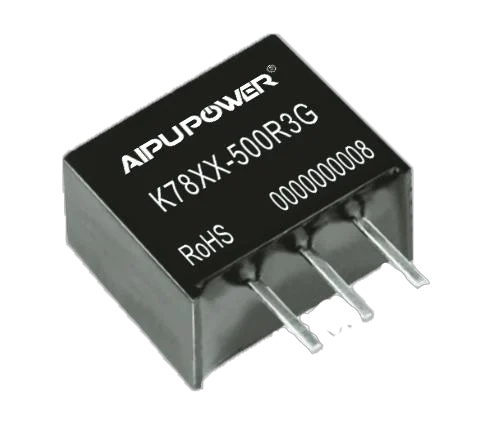

K78XX-500R3
K78XX-500R3 series power module power module, 5 model(s).
The K78XX-500R3 series is a family of power module power modules rated 24W with wide input 4.75-34.
- K783V3-500R3: 3.3V / 500mA output (24W)
- K7805-500R3: 5V / 500mA output (24W)
- K7809-500R3: 9V / 500mA output (24W)
- K7812-500R3: 12V / 500mA output (24W)
- K7815-500R3: 15V / 500mA output (24W)
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| K783V3-500R3 | 24W | 4.75-34 | 3.3V | 500mA | N/A | 11.6*7.5*10.2 | SIP | 1 |
| K7805-500R3 | 24W | 6.5-34 | 5V | 500mA | N/A | 11.6*7.5*10.2 | SIP | 1 |
| K7809-500R3 | 24W | 12-34 | 9V | 500mA | N/A | 11.6*7.5*10.2 | SIP | 1 |
| K7812-500R3 | 24W | 15-34 | 12V | 500mA | N/A | 11.6*7.5*10.2 | SIP | 1 |
| K7815-500R3 | 24W | 19-34 | 15V | 500mA | N/A | 11.6*7.5*10.2 | SIP | 1 |
| Total | 5 models in this series | |||||||
