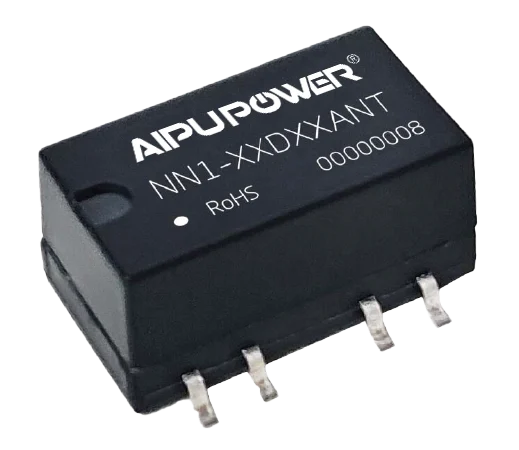

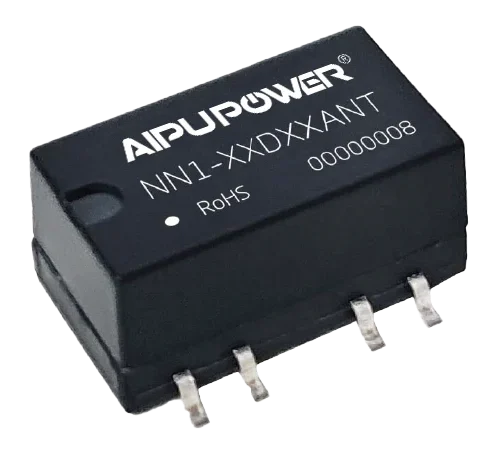

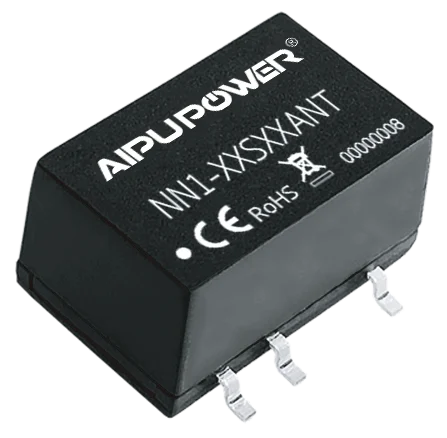

NN1-XXDXXANT
NN1-XXDXXANT series DC-DC SMD power module, 14 model(s).
The NN1-XXDXXANT series is a family of DC-DC SMD power modules rated 1w with wide input 4.5-5.5.
- NN1-05D3V3ANT: ±3.3V / ±152mA output (1wW)
- NN1-05D05ANT: ±5V / ±100mA output
- NN1-05D09ANT: ±9V / ±55mA output
- NN1-05D12ANT: ±12V / ±42mA output
- NN1-05D15ANT: ±15V / ±33mA output
- NN1-05D24ANT: ±12V / ±42mA output
- NN1-12D05ANT: ±5V / ±100mA output
- NN1-12D09ANT: ±9V / ±55mA output
- NN1-12D12ANT: ±12V / ±42mA output
- NN1-12D15ANT: ±15V / ±33mA output
- NN1-24D05ANT: ±5V / ±100mA output
- NN1-24D09ANT: ±9V / ±55mA output
- NN1-24D12ANT: ±12V / ±42mA output
- NN1-24D15ANT: ±15V / ±33mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| NN1-05D3V3ANT | 1W | 4.5-5.5 | ±3.3 | ±152mA | 1500 | 15.24*11.4*7.25 | SMD | 2 |
| NN1-05D05ANT | 1W | 4.5-5.5 | ±5 | ±100mA | 1500 | 15.24*11.4*7.25 | SMD | 2 |
| NN1-05D09ANT | 1W | 4.5-5.5 | ±9 | ±55mA | 1500 | 15.24*11.4*7.25 | SMD | 2 |
| NN1-05D12ANT | 1W | 4.5-5.5 | ±12 | ±42mA | 1500 | 15.24*11.4*7.25 | SMD | 2 |
| NN1-05D15ANT | 1W | 4.5-5.5 | ±15 | ±33mA | 1500 | 15.24*11.4*7.25 | SMD | 2 |
| NN1-05D24ANT | 1W | 4.5-5.5 | ±12 | ±42mA | 1500 | 15.24*11.4*7.25 | SMD | 2 |
| NN1-12D05ANT | 1W | 10.8-13.2 | ±5 | ±100mA | 1500 | 15.24*11.4*7.25 | SMD | 2 |
| NN1-12D09ANT | 1W | 10.8-13.2 | ±9 | ±55mA | 1500 | 15.24*11.4*7.25 | SMD | 2 |
| NN1-12D12ANT | 1W | 10.8-13.2 | ±12 | ±42mA | 1500 | 15.24*11.4*7.25 | SMD | 2 |
| NN1-12D15ANT | 1W | 10.8-13.2 | ±15 | ±33mA | 1500 | 15.24*11.4*7.25 | SMD | 2 |
| NN1-24D05ANT | 1W | 21.6-26.4 | ±5 | ±100mA | 1500 | 15.24*11.4*7.25 | SMD | 2 |
| NN1-24D09ANT | 1W | 21.6-26.4 | ±9 | ±55mA | 1500 | 15.24*11.4*7.25 | SMD | 2 |
| NN1-24D12ANT | 1W | 21.6-26.4 | ±12 | ±42mA | 1500 | 15.24*11.4*7.25 | SMD | 2 |
| NN1-24D15ANT | 1W | 21.6-26.4 | ±15 | ±33mA | 1500 | 15.24*11.4*7.25 | SMD | 2 |
| Total | 14 models in this series | |||||||
