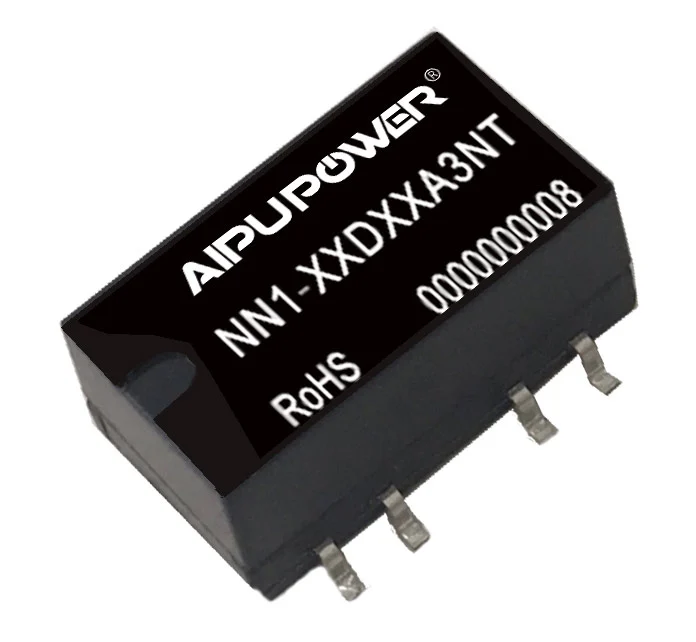

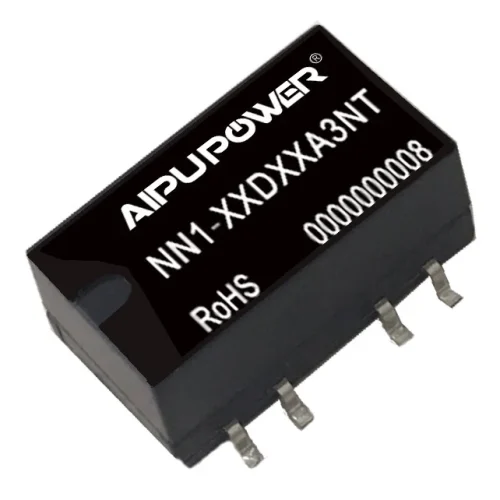

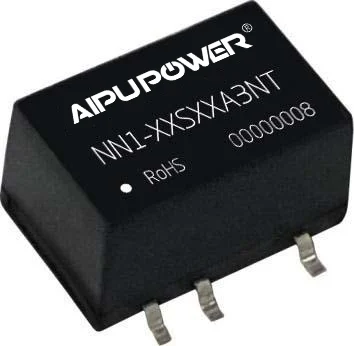

NN1-XXDXXA3NT
NN1-XXDXXA3NT series DC-DC SMD power module, 13 model(s).
The NN1-XXDXXA3NT series is a family of DC-DC SMD power modules rated 1w with wide input 4.5-5.5.
- NN1-05D05A3NT: ±5V / 100mA output (1wW)
- NN1-05D09A3NT: ±9V / 55mA output
- NN1-05D12A3NT: ±12V / 42mA output
- NN1-05D15A3NT: ±15V / 33mA output
- NN1-05D24A3NT: ±24V / 21mA output
- NN1-12D05A3NT: ±5V / 100mA output
- NN1-12D09A3NT: ±9V / 55mA output
- NN1-12D12A3NT: ±12V / 42mA output
- NN1-12D15A3NT: ±15V / 33mA output
- NN1-24D05A3NT: ±5V / 100mA output
- NN1-24D09A3NT: ±9V / 55mA output
- NN1-24D12A3NT: ±12V / 42mA output
- NN1-24D15A3NT: ±15V / 33mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| NN1-05D05A3NT | 1W | 4.5-5.5 | ±5 | 100mA | 3000 | 15.24X11.40X7.25 mm | SMD | 2 |
| NN1-05D09A3NT | 1W | 4.5-5.5 | ±9 | 55mA | 3000 | 15.24X11.40X7.25 mm | SMD | 2 |
| NN1-05D12A3NT | 1W | 4.5-5.5 | ±12 | 42mA | 3000 | 15.24X11.40X7.25 mm | SMD | 2 |
| NN1-05D15A3NT | 1W | 4.5-5.5 | ±15 | 33mA | 3000 | 15.24X11.40X7.25 mm | SMD | 2 |
| NN1-05D24A3NT | 1W | 4.5-5.5 | ±24 | 21mA | 3000 | 15.24X11.40X7.25 mm | SMD | 2 |
| NN1-12D05A3NT | 1W | 10.8-13.2 | ±5 | 100mA | 3000 | 15.24X11.40X7.25 mm | SMD | 2 |
| NN1-12D09A3NT | 1W | 10.8-13.2 | ±9 | 55mA | 3000 | 15.24X11.40X7.25 mm | SMD | 2 |
| NN1-12D12A3NT | 1W | 10.8-13.2 | ±12 | 42mA | 3000 | 15.24X11.40X7.25 mm | SMD | 2 |
| NN1-12D15A3NT | 1W | 10.8-13.2 | ±15 | 33mA | 3000 | 15.24X11.40X7.25 mm | SMD | 2 |
| NN1-24D05A3NT | 1W | 21.6-26.4 | ±5 | 100mA | 3000 | 15.24X11.40X7.25 mm | SMD | 2 |
| NN1-24D09A3NT | 1W | 21.6-26.4 | ±9 | 55mA | 3000 | 15.24X11.40X7.25 mm | SMD | 2 |
| NN1-24D12A3NT | 1W | 21.6-26.4 | ±12 | 42mA | 3000 | 15.24X11.40X7.25 mm | SMD | 2 |
| NN1-24D15A3NT | 1W | 21.6-26.4 | ±15 | 33mA | 3000 | 15.24X11.40X7.25 mm | SMD | 2 |
| Total | 13 models in this series | |||||||
