NN2-XXSXXANR3

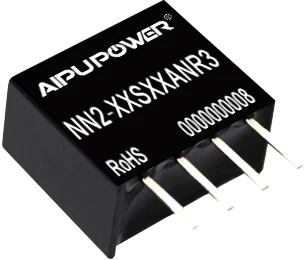

NN2-XXSXXANR3 series DC-DC SIP power module, 10 model(s).
The NN2-XXSXXANR3 series is a family of DC-DC SIP power modules rated 2w with wide input 4.5-5.5.
- NN2-05S05ANR3: 5V / 400mA output (2wW)
- NN2-05S12ANR3: 12V / 167mA output
- NN2-05S15ANR3: 15V / 133mA output
- NN2-05S3V305ANR3: 3.3V / 400mA output
- NN2-12S05ANR3: 5V / 400mA output
- NN2-12S12ANR3: 12V / 167mA output
- NN2-12S15ANR3: 15V / 133mA output
- NN2-24S05ANR3: 5V / 400mA output
- NN2-24S5V5ANR3: 5.5V / 364mA output
- NN2-24S7V2ANR3: 7.2V / 278mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| NN2-05S05ANR3 | 2W | 4.5-5.5 | 5V | 400mA | 1500 | 11.50× 6.00 × 10.10 mm | SIP | 1 |
| NN2-05S12ANR3 | 2W | 4.5-5.5 | 12V | 167mA | 1500 | 11.50× 6.00 × 10.10 mm | SIP | 1 |
| NN2-05S15ANR3 | 2W | 4.5-5.5 | 15V | 133mA | 1500 | 11.50× 6.00 × 10.10 mm | SIP | 1 |
| NN2-05S3V305ANR3 | 2W | 10.8-13.2 | 3.3V | 400mA | 1500 | 11.50× 6.00 × 10.10 mm | SIP | 1 |
| NN2-12S05ANR3 | 2W | 10.8-13.2 | 5V | 400mA | 1500 | 11.50× 6.00 × 10.10 mm | SIP | 1 |
| NN2-12S12ANR3 | 2W | 10.8-13.2 | 12V | 167mA | 1500 | 11.50× 6.00 × 10.10 mm | SIP | 1 |
| NN2-12S15ANR3 | 2W | 10.8-13.2 | 15V | 133mA | 1500 | 11.50× 6.00 × 10.10 mm | SIP | 1 |
| NN2-24S05ANR3 | 2W | 21.6-26.4 | 5V | 400mA | 1500 | 11.50× 6.00 × 10.10 mm | SIP | 1 |
| NN2-24S5V5ANR3 | 2W | 21.6-26.4 | 5.5V | 364mA | 1500 | 11.50× 6.00 × 10.10 mm | SIP | 1 |
| NN2-24S7V2ANR3 | 2W | 21.6-26.4 | 7.2V | 278mA | 1500 | 11.50× 6.00 × 10.10 mm | SIP | 1 |
| Total | 10 models in this series | |||||||
