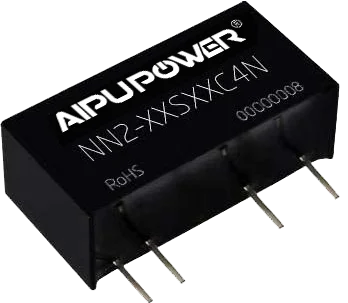

NN2-XXXXXC4N
NN2-XXXXXC4N series DC-DC SIP power module, 3 model(s).
The NN2-XXXXXC4N series is a family of DC-DC SIP power modules with wide input 4.5-5.5.
- NN2-05S24C4N: 24V / 83mA output
- NN2-12S12C4N: 12V / 167mA output
- NN2-12S15C4N: 15V / 133mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| NN2-05S24C4N | 2W | 4.5-5.5 | 24V | 83mA | 4000vdc | 19.50× 7.00 × 10.10 mm | SIP | 1 |
| NN2-12S12C4N | 2W | 10.8-13.2 | 12V | 167mA | 4000vdc | 19.50× 7.00 × 10.10 mm | SIP | 1 |
| NN2-12S15C4N | 2W | 10.8-13.2 | 15V | 133mA | 4000vdc | 19.50× 7.00 × 10.10 mm | SIP | 1 |
| Total | 3 models in this series | |||||||
