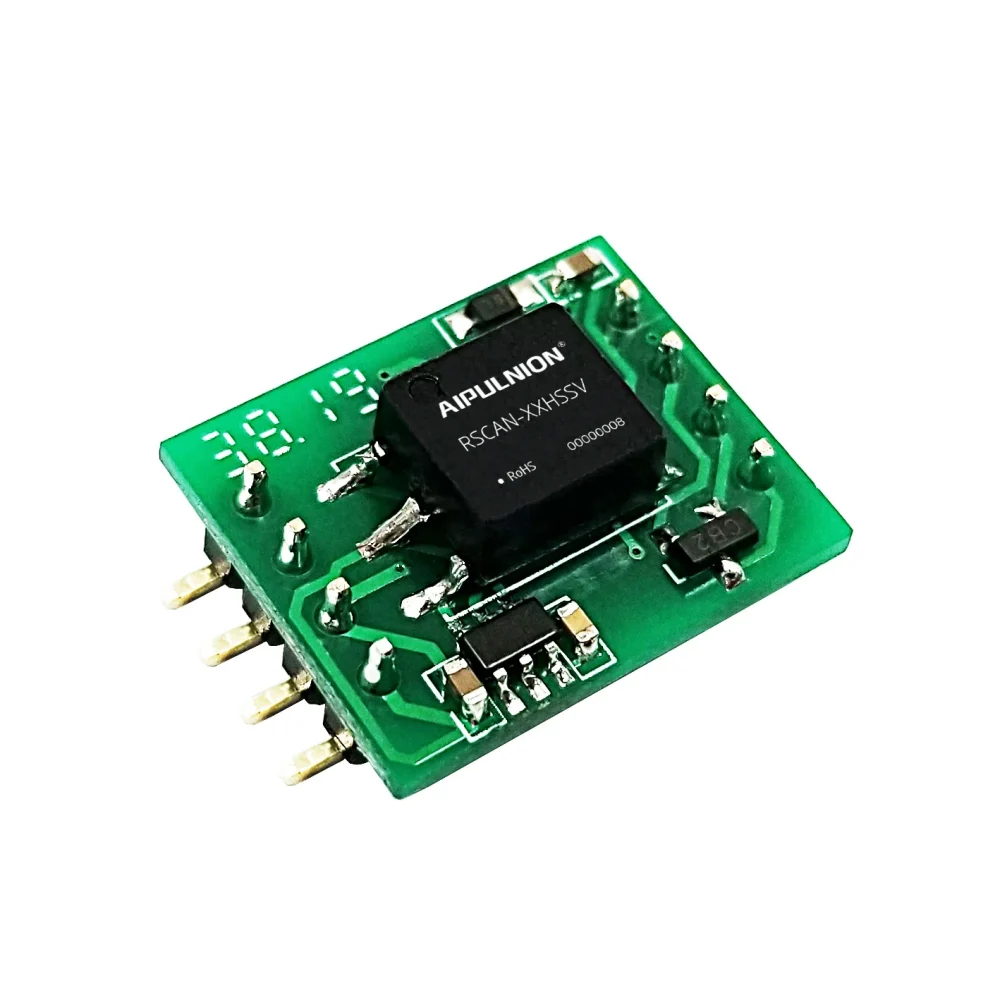

RSCAN-XXHSSV
RSCAN-XXHSSV series power module power module, 3 model(s).
The RSCAN-XXHSSV series is a family of power module power modules rated 3.15V - 3.45VW with wide input 3.3.

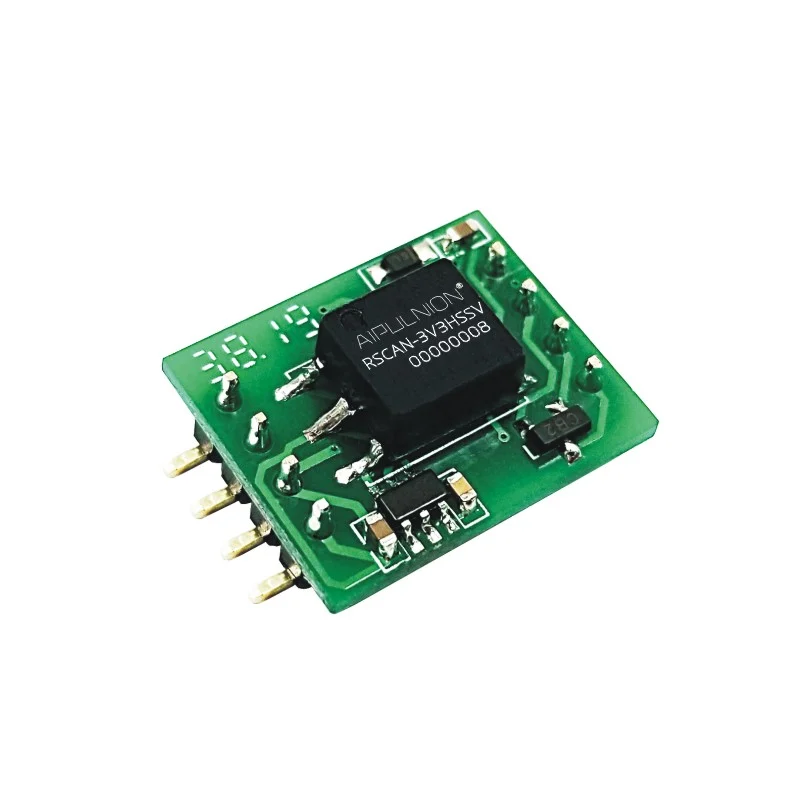

- RSCAN-3V3HSSV: 1MV / up to 110mA output (3.15V - 3.45VW)
- RSCAN-05HSSV: V / mA output (3.15V - 3.45VW)
- non-isolated K78 series: V / mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| RSCAN-3V3HSSV | 3.15V - 3.45VW | 3.15V - 3.45V | 3.3 | up to 110mA | 4000 | 21.8X14.8X7.2mm | wiring | 1 |
| RSCAN-05HSSV | 3.15V - 3.45VW | 3.15V - 3.45V | 5 | up to 110mA | 4000 | 21.8X14.8X7.2mm | wiring | 1 |
| Total | 2 models in this series | |||||||
