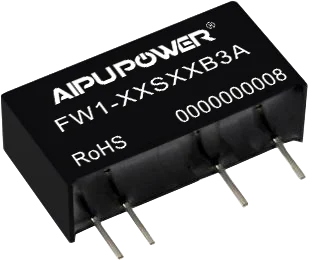

FW1-XXSXXB3A series DC-DC SIP power module, 17 model(s).

Quick Inquiry
UGS : FW1-XXSXXB3A Catégorie :

The FW1-XXSXXB3A series is a family of DC-DC SIP power modules rated 1w with wide input 3.135-3.465.

  • FW1-3V3S15B3A: 15V / 67mA output (1wW)
  • FW1-05S3V3B3A: 3.3V / 250mA output
  • FW1-05S05B3A: 5V / 200mA output
  • FW1-05S12B3A: 12V / 83mA output
  • FW1-05S15B3A: 15V / 67mA output
  • FW1-05S24B3A: 24V / 42mA output
  • FW1-12S05B3A: 5V / 200mA output
  • FW1-12S09B3A: 9V / 111mA output
  • FW1-12S12B3A: 12V / 83mA output
  • FW1-12S15B3A: 15V / 67mA output
  • FW1-12S24B3A: 24V / 42mA output
  • FW1-15S05B3A: 5V / 200mA output
  • FW1-15S15B3A: 15V / 67mA output
  • FW1-243V3B3A: 3.3V / 250mA output
  • FW1-24S24B3A: 5V / 200mA output
  • FW1-24S12B3A: 12V / 83mA output
  • FW1-24S15B3A: 15V / 67mA output

Datasheet, samples and OEM/ODM support available on request.

Variant specification table
Part NumberPowerInput VoltageOutput VoltageOutput CurrentIsolation VoltageSizePackageNo. of Outputs
FW1-3V3S15B3A1W3.135-3.46515V67mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-05S3V3B3A1W4.75-5.253.3V250mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-05S05B3A1W4.75-5.255V200mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-05S12B3A1W4.75-5.2512V83mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-05S15B3A1W4.75-5.2515V67mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-05S24B3A1W4.75-5.2524V42mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-12S05B3A1W11.4-12.65V200mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-12S09B3A1W11.4-12.69V111mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-12S12B3A1W11.4-12.612V83mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-12S15B3A1W11.4-12.615V67mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-12S24B3A1W11.4-12.624V42mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-15S05B3A1W14.25-15.755V200mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-15S15B3A1W14.25-15.7515V67mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-243V3B3A1W22.8-25.23.3V250mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-24S24B3A1W22.8-25.25V200mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-24S12B3A1W22.8-25.212V83mA3000vdc19.50×6.00×10.10 mmSIP1
FW1-24S15B3A1W22.8-25.215V67mA3000vdc19.50×6.00×10.10 mmSIP1
Total 17 models in this series
fw1-xxsxxb3a-datasheet-1.pdfPDF · 1,4 Mo
Open in new tabDownload

Loading preview…

The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.

Input Voltage (VAC&VDC)

11.4-12.6, 14.25-15.75, 22.8-25.2, 3.135-3.465, 4.75-5.25

Power (W)

1w

Isolation Voltage (VAC)

3000vdc

Output Voltage (VDC)

12, 15, 24, 3.3, 5, 9

Output Current (mA)

111, 200, 250, 42, 67, 83

Size (mm)

19.50×6.00×10.10 mm

Package

SIP

No of Outputs

1
