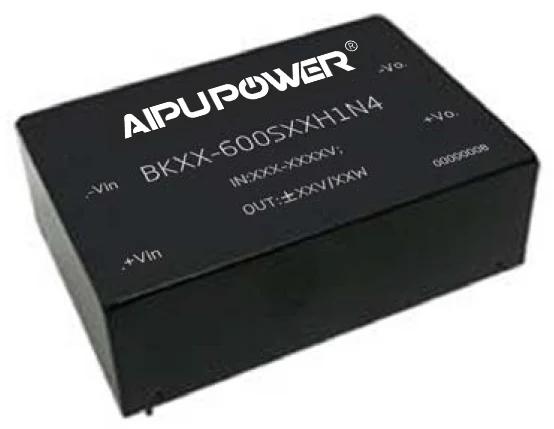

BK25-600SXXH1N4
BK25-600SXXH1N4 series power module power module, 4 model(s).
The BK25-600SXXH1N4 series is a family of power module power modules rated 25w with wide input 200-1200.
- BK25-600S05H1N4: 5V / 5000mA output (25wW)
- BK25-600S12H1N4: 12V / 2084mA output
- BK25-600S15H1N4: 15V / 1667mA output
- BK25-600S24H1N4: 24V / 1042mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| BK25-600S05H1N4 | 25W | 200-1200 | 5V | 5000mA | 4000 | 70*48*23.5 | DIP | 1 |
| BK25-600S12H1N4 | 25W | 200-1200 | 12V | 2084mA | 4000 | 70*48*23.5 | DIP | 1 |
| BK25-600S15H1N4 | 25W | 200-1200 | 15V | 1667mA | 4000 | 70*48*23.5 | DIP | 1 |
| BK25-600S24H1N4 | 25W | 200-1200 | 24V | 1042mA | 4000 | 70*48*23.5 | DIP | 1 |
| Total | 4 models in this series | |||||||
