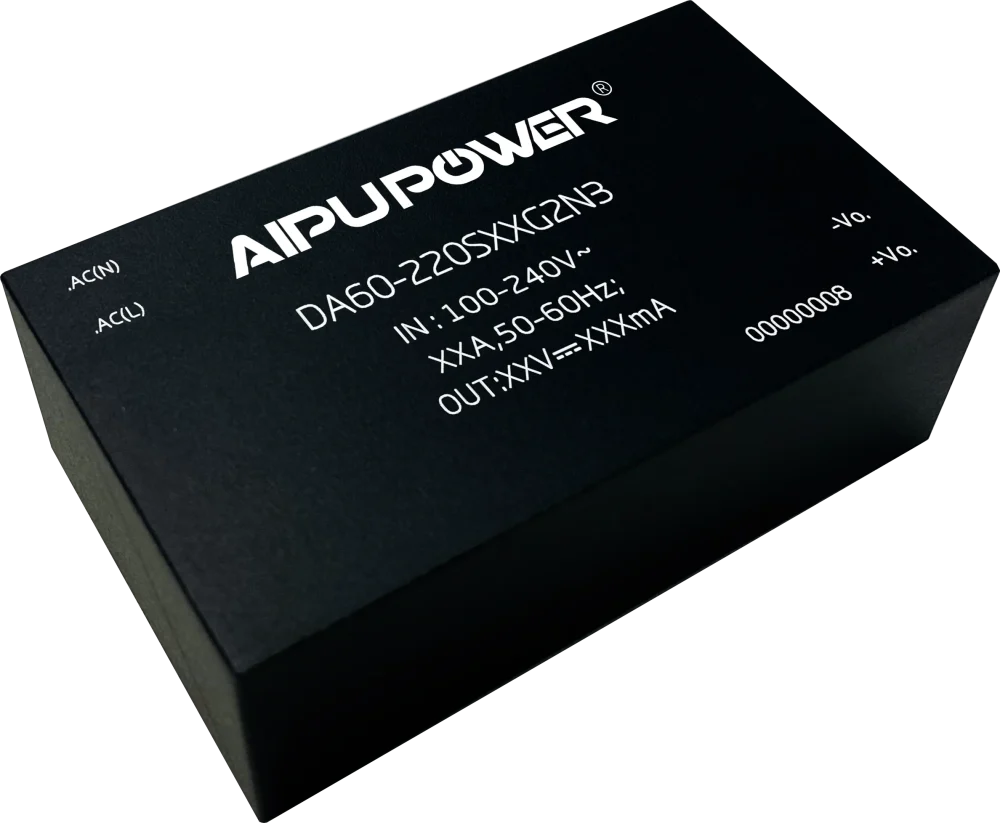

DA60-220XXG2N3
DA60-220XXG2N3 series AC-DC enclosed power module, 4 model(s).
The DA60-220XXG2N3 series is a family of AC-DC enclosed power modules rated 60W with wide input 85-265vac /120-380vdc.
- DA60-22012G2N3: 12V / 5000mA output (60W)
- DA60-22015G2N3: 15V / 4000mA output
- DA60-22024G2N3: 24V / 2500mA output
- DA60-22048G2N3: 48V / 1250mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| DA60-22012G2N3 | 60W | 85-265vac /120-380vdc | 12V | 5000mA | 4000 | 87.0X52.0X29.5mm | DIP | 1 |
| DA60-22015G2N3 | 60W | 85-265vac /120-380vdc | 15V | 4000mA | 4000 | 87.0X52.0X29.5mm | DIP | 1 |
| DA60-22024G2N3 | 60W | 85-265vac /120-380vdc | 24V | 2500mA | 4000 | 87.0X52.0X29.5mm | DIP | 1 |
| DA60-22048G2N3 | 60W | 85-265vac /120-380vdc | 48V | 1250mA | 4000 | 87.0X52.0X29.5mm | DIP | 1 |
| Total | 4 models in this series | |||||||
