DD6-05SXXE3C(N)2
DD6-05SXXE3C(N)2 series DC-DC DIP power module, 4 model(s).
The DD6-05SXXE3C(N)2 series is a family of DC-DC DIP power modules rated 6w with wide input 4.5-9.
- DD6-05S05E3C(N)2: 5V / 1200mA output (6wW)
- DD6-05S12E3C(N)2: 12V / 500mA output
- DD6-05S15E3C(N)2: 15V / 400mA output
- DD6-05S24E3C(N)2: 24V / 250mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| DD6-05S05E3C(N)2 | 6W | 4.5-9 | 5V | 1200mA | 1500vdc | 31.8*20.3*12 | DIP | 1 |
| DD6-05S12E3C(N)2 | 6W | 4.5-9 | 12V | 500mA | 1500vdc | 31.8*20.3*12 | DIP | 1 |
| DD6-05S15E3C(N)2 | 6W | 4.5-9 | 15V | 400mA | 1500vdc | 31.8*20.3*12 | DIP | 1 |
| DD6-05S24E3C(N)2 | 6W | 4.5-9 | 24V | 250mA | 1500vdc | 31.8*20.3*12 | DIP | 1 |
| Total | 4 models in this series | |||||||
|
Related products
Add to Quote
This product has multiple variants. The options may be chosen on the product page
FD30-XXDXXB3C3
Add to Quote
This product has multiple variants. The options may be chosen on the product page

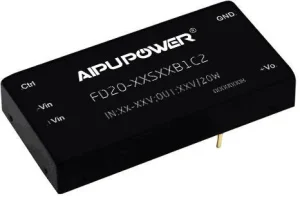

FD20-XXSXXB1(C)2
