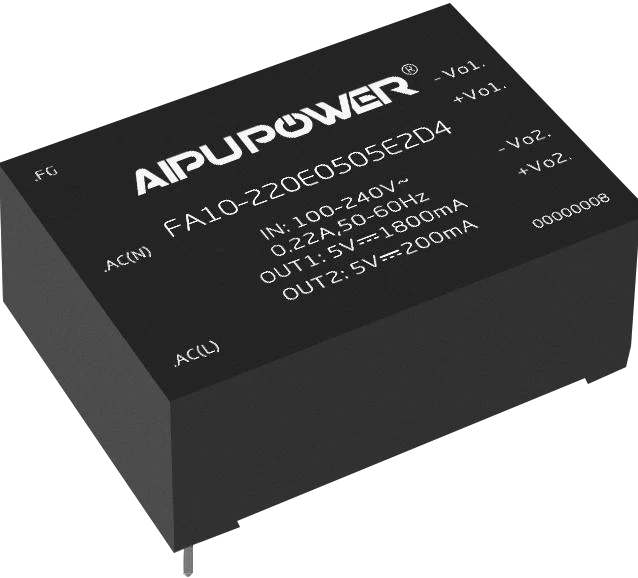

FA10-220E05XXE2D4
FA10-220E05XXE2D4 series AC-DC enclosed power module, 3 model(s).
The FA10-220E05XXE2D4 series is a family of AC-DC enclosed power modules rated 10w with wide input 85-265vac /120-380vdc.
- FA10-220E0505E2D4: 5*5V / 1800*200mA output (10wW)
- FA10-220E0512E2D4: 5*12V / 1500*200mA output
- FA10-220E0524E2D4: 5*24V / 1000*200mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA10-220E0505E2D4 | 10W | 85-265vac /120-380vdc | 5*5V | 1800*200mA | 4000 | 55*45*21.5 | DIP | 2 |
| FA10-220E0512E2D4 | 10W | 85-265vac /120-380vdc | 5*12V | 1500*200mA | 4000 | 55*45*21.5 | DIP | 2 |
| FA10-220E0524E2D4 | 10W | 85-265vac /120-380vdc | 5*24V | 1000*200mA | 4000 | 55*45*21.5 | DIP | 2 |
| Total | 3 models in this series | |||||||
Loading preview…
The preview is loaded when this tab is opened. Use the buttons above to open the file in a new tab or save it.
|
Related products
Add to Quote
This product has multiple variants. The options may be chosen on the product page

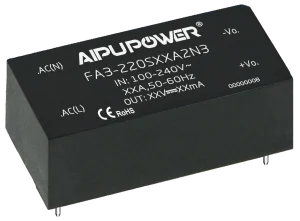

FA3-220SXXA2N3
