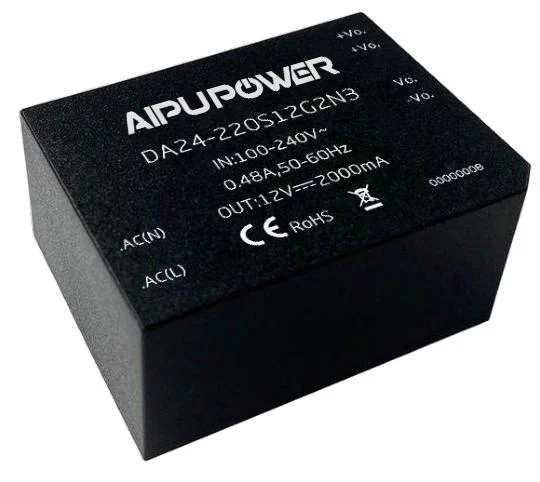

DA24-220SXXG2N3
DA24-220SXXG2N3 series AC-DC enclosed power module, 5 model(s).
The DA24-220SXXG2N3 series is a family of AC-DC enclosed power modules rated 9.9w / 15w / 24w with wide input 85-265vac /120-380vdc.
- DA24-220S3V3G2N3: 3.3V / 3000mA output (9.9wW)
- DA24-220S05G2N3: 5V / 3000mA output (15wW)
- DA24-220S7V5G2N3: 7.5V / 3200mA output (24wW)
- DA24-220S12G2N3: 12V / 2000mA output
- DA24-220S24G2N3: 24V / 1000mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| DA24-220S3V3G2N3 | 9.9W | 85-265vac /120-380vdc | 3.3V | 3000mA | 3000vac | 50.8*39*22.8 | DIP | 1 |
| DA24-220S05G2N3 | 15W | 85-265vac /120-380vdc | 5V | 3000mA | 3000vac | 50.8*39*22.8 | DIP | 1 |
| DA24-220S7V5G2N3 | 24W | 85-265vac /120-380vdc | 7.5V | 3200mA | 3000vac | 50.8*39*22.8 | DIP | 1 |
| DA24-220S12G2N3 | 24W | 85-265vac /120-380vdc | 12V | 2000mA | 3000vac | 50.8*39*22.8 | DIP | 1 |
| DA24-220S24G2N3 | 24W | 85-265vac /120-380vdc | 24V | 1000mA | 3000vac | 50.8*39*22.8 | DIP | 1 |
| Total | 5 models in this series | |||||||
