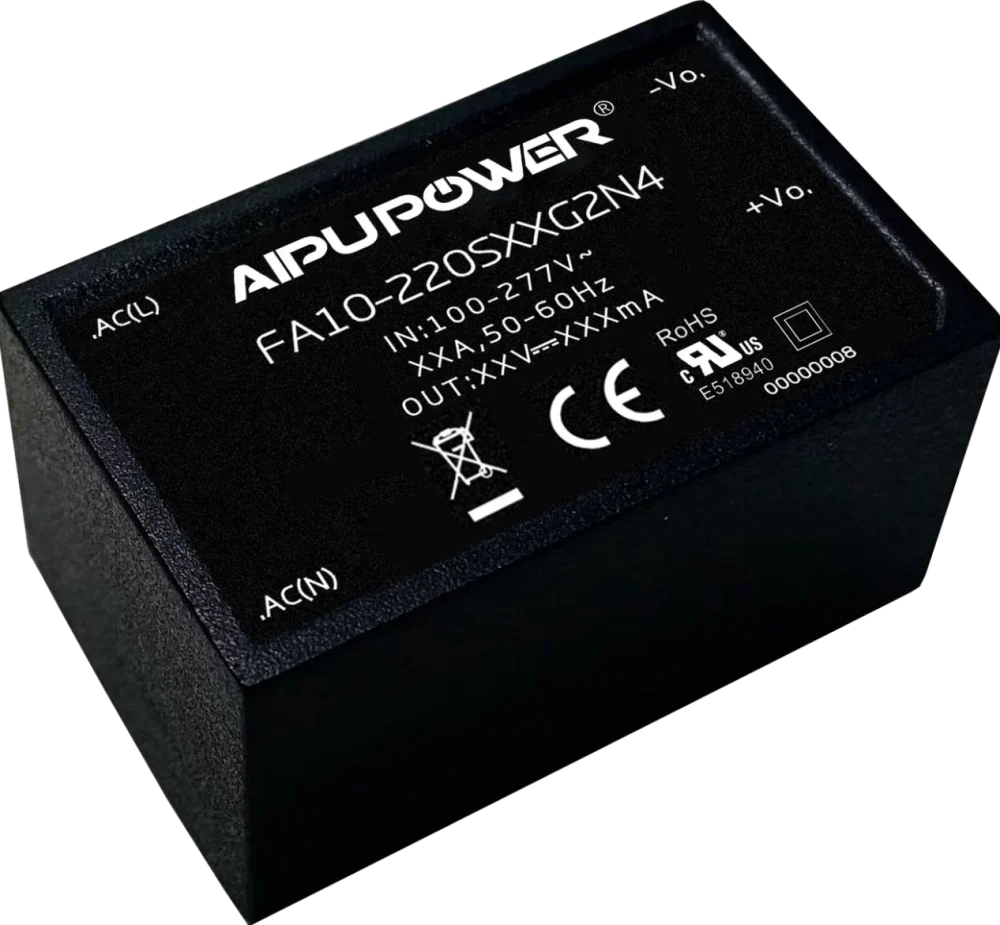

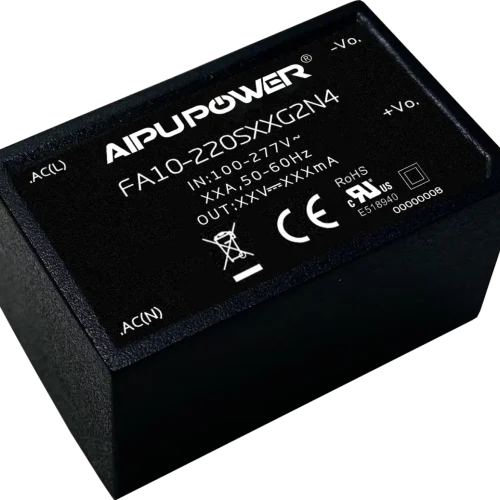

FA10-220SXXG2N4
FA10-220SXXG2N4 series AC-DC enclosed power module, 6 model(s).
The FA10-220SXXG2N4 series is a family of AC-DC enclosed power modules rated 8.6w / 10w with wide input 85-305vac /120-430vdc.
- FA10-220S3V3G2N4: 3.3V / 2600mA output (8.6wW)
- FA10-220S05G2N4: 5V / 2000mA output (10wW)
- FA10-220S12G2N4: 12V / 833mA output
- FA10-220S12V5G2N4: 12.5V / 800mA output
- FA10-220S15G2N4: 15V / 667mA output
- FA10-220S24G2N4: 24V / 416mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA10-220S3V3G2N4 | 8.6W | 85-305vac /120-430vdc | 3.3V | 2600mA | 4000 | 40*25.4*21 | DIP | 1 |
| FA10-220S05G2N4 | 10W | 85-305vac /120-430vdc | 5V | 2000mA | 4000 | 40*25.4*21 | DIP | 1 |
| FA10-220S12G2N4 | 10W | 85-305vac /120-430vdc | 12V | 833mA | 4000 | 40*25.4*21 | DIP | 1 |
| FA10-220S12V5G2N4 | 10W | 85-305vac /120-430vdc | 12.5V | 800mA | 4000 | 40*25.4*21 | DIP | 1 |
| FA10-220S15G2N4 | 10W | 85-305vac /120-430vdc | 15V | 667mA | 4000 | 40*25.4*21 | DIP | 1 |
| FA10-220S24G2N4 | 10W | 85-305vac /120-430vdc | 24V | 416mA | 4000 | 40*25.4*21 | DIP | 1 |
| Total | 6 models in this series | |||||||
