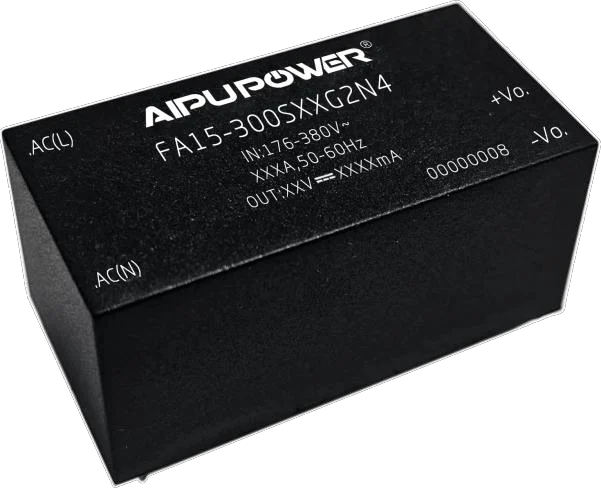

FA15-300SXXG2N4
FA15-300SXXG2N4 series AC-DC enclosed power module, 4 model(s).
The FA15-300SXXG2N4 series is a family of AC-DC enclosed power modules rated 15w with wide input 176-418 VAC / 248-591 VDC.
- FA15-300S05G2N4: 5V / 3000mA output (15wW)
- FA15-300S12G2N4: 12V / 1250mA output
- FA15-300S12V3G2N4: 12.3V / 1220mA output
- FA15-300S24G2N4: 24V / 625mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA15-300S05G2N4 | 15W | 176-418 VAC / 248-591 VDC | 5V | 3000mA | 4000 | 52.4 x 27.2 x 24.0 mm | DIP | 1 |
| FA15-300S12G2N4 | 15W | 176-418 VAC / 248-591 VDC | 12V | 1250mA | 4000 | 52.4 x 27.2 x 24.0 mm | DIP | 1 |
| FA15-300S12V3G2N4 | 15W | 176-418 VAC / 248-591 VDC | 12.3V | 1220mA | 4000 | 52.4 x 27.2 x 24.0 mm | DIP | 1 |
| FA15-300S24G2N4 | 15W | 176-418 VAC / 248-591 VDC | 24V | 625mA | 4000 | 52.4 x 27.2 x 24.0 mm | DIP | 1 |
| Total | 4 models in this series | |||||||
