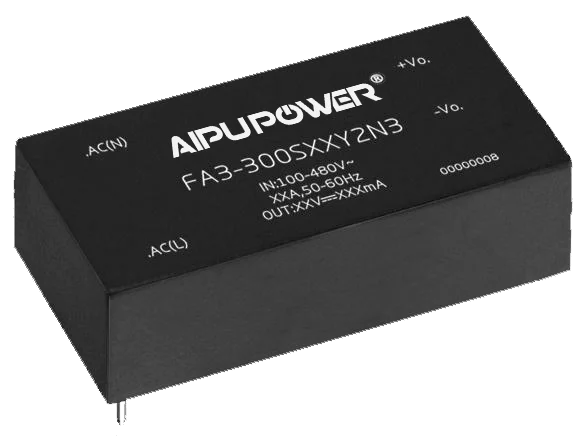

FA3-300SXXY2N3
FA3-300SXXY2N3 series AC-DC enclosed power module, 4 model(s).
The FA3-300SXXY2N3 series is a family of AC-DC enclosed power modules rated 3w with wide input 90-528vac /100-745vdc.
- FA3-300S05Y2N3: 5V / 600mA output (3wW)
- FA3-300S12Y2N3: 12V / 250mA output
- FA3-300S15Y2N3: 15V / 200mA output
- FA3-300S24Y2N3: 24V / 125mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA3-300S05Y2N3 | 3W | 90-528vac /100-745vdc | 5V | 600mA | 3600vac | 50.8*25.4*15.6 | DIP | 1 |
| FA3-300S12Y2N3 | 3W | 90-528vac /100-745vdc | 12V | 250mA | 3600vac | 50.8*25.4*15.6 | DIP | 1 |
| FA3-300S15Y2N3 | 3W | 90-528vac /100-745vdc | 15V | 200mA | 3600vac | 50.8*25.4*15.6 | DIP | 1 |
| FA3-300S24Y2N3 | 3W | 90-528vac /100-745vdc | 24V | 125mA | 3600vac | 50.8*25.4*15.6 | DIP | 1 |
| Total | 4 models in this series | |||||||
