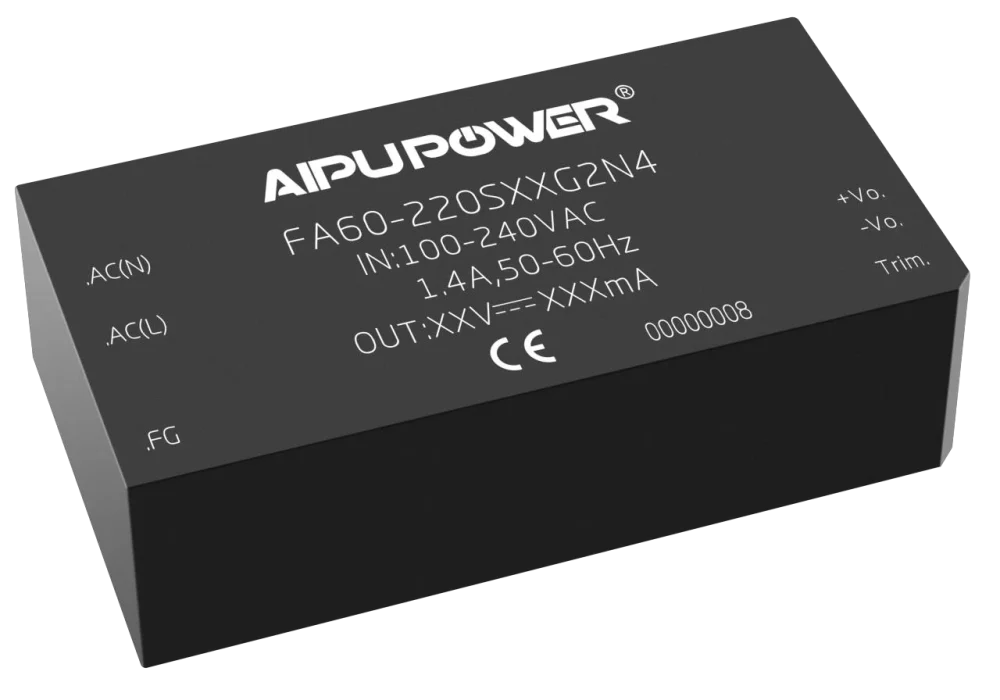

FA60-220SXXG2N4
FA60-220SXXG2N4 series AC-DC enclosed power module, 4 model(s).
The FA60-220SXXG2N4 series is a family of AC-DC enclosed power modules rated 60W with wide input 90-264VAC/122-370VDC.
- FA60-220S12G2N4: 12V / 5000mA output (60WW)
- FA60-220S24G2N4: 24V / 2500mA output
- FA60-220S36G2N4: 36V / 1666mA output
- FA60-220S37G2N4: 37V / 1622mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA60-220S12G2N4 | 60W | 90-264VAC/122-370VDC | 12V | 5000mA | 4000 | 109.00x58.50x30.00 mm | DIP | 1 |
| FA60-220S24G2N4 | 60W | 90-264VAC/122-370VDC | 24V | 2500mA | 4000 | 109.00x58.50x30.00 mm | DIP | 1 |
| FA60-220S36G2N4 | 60W | 90-264VAC/122-370VDC | 36V | 1666mA | 4000 | 109.00x58.50x30.00 mm | DIP | 1 |
| FA60-220S37G2N4 | 60W | 90-264VAC/122-370VDC | 37V | 1622mA | 4000 | 109.00x58.50x30.00 mm | DIP | 1 |
| Total | 4 models in this series | |||||||
