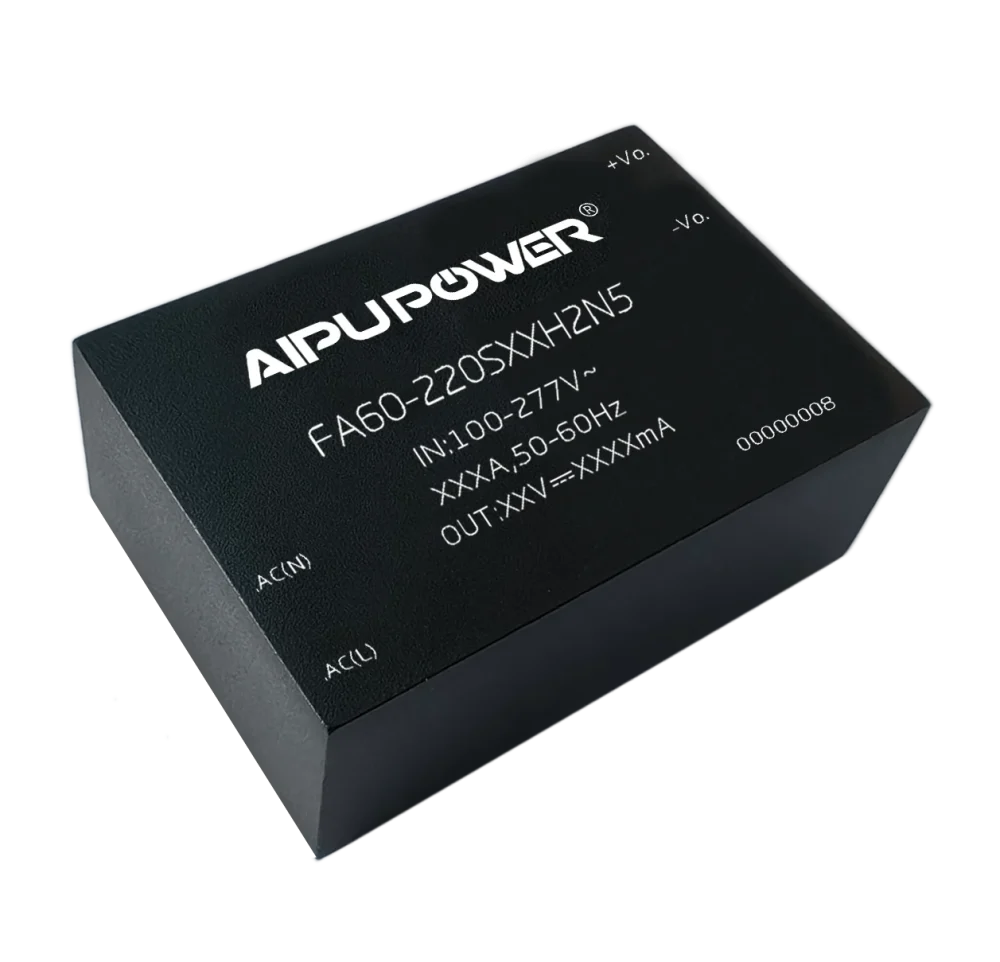

FA60-220SXXH2N5
FA60-220SXXH2N5 series AC-DC enclosed power module, 4 model(s).
The FA60-220SXXH2N5 series is a family of AC-DC enclosed power modules rated 50W / 60W with wide input 85-305VAC/120-430VDC.
- FA60-220S05H2N5: 5V / 10000mA output (50WW)
- FA60-220S12H2N5: 12V / 5000mA output (60WW)
- FA60-220S15H2N5: 15V / 4000mA output
- FA60-220S24H2N5: 24V / 2500mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA60-220S05H2N5 | 50W | 85-305VAC/120-430VDC | 5V | 10000mA | 4200 | 70.00 X 48.00 X 27.00 mm | DIP | 1 |
| FA60-220S12H2N5 | 60W | 85-305VAC/120-430VDC | 12V | 5000mA | 4200 | 70.00 X 48.00 X 27.00 mm | DIP | 1 |
| FA60-220S15H2N5 | 60W | 85-305VAC/120-430VDC | 15V | 4000mA | 4200 | 70.00 X 48.00 X 27.00 mm | DIP | 1 |
| FA60-220S24H2N5 | 60W | 85-305VAC/120-430VDC | 24V | 2500mA | 4200 | 70.00 X 48.00 X 27.00 mm | DIP | 1 |
| Total | 4 models in this series | |||||||
