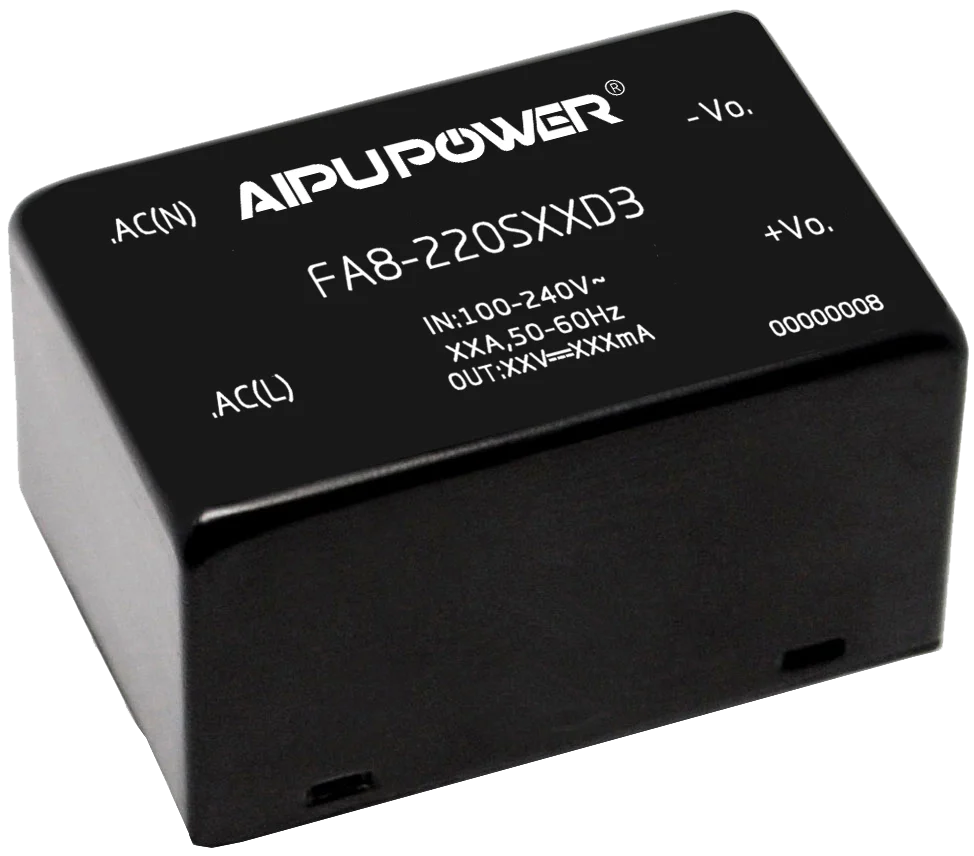

FA8-220SXXD3
FA8-220SXXD3 series AC-DC enclosed power module, 3 model(s).
The FA8-220SXXD3 series is a family of AC-DC enclosed power modules rated 6.6w / 6.5w with wide input 85-265vac /120-380vdc.
- FA8-220S3V3D3: 3.3V / 2000mA output (6.6wW)
- FA8-220S3V6D3: 3.6V / 1800mA output (6.5wW)
- FA8-220S3V8D3: 3.8V / 1700mA output
Datasheet, samples and OEM/ODM support available on request.
| Part Number | Power | Input Voltage | Output Voltage | Output Current | Isolation Voltage | Size | Package | No. of Outputs |
|---|---|---|---|---|---|---|---|---|
| FA8-220S3V3D3 | 6.6W | 85-265vac /120-380vdc | 3.3V | 2000mA | 3000 | 39*25*22 | DIP | 1 |
| FA8-220S3V6D3 | 6.5W | 85-265vac /120-380vdc | 3.6V | 1800mA | 3000 | 39*25*22 | DIP | 1 |
| FA8-220S3V8D3 | 6.5W | 85-265vac /120-380vdc | 3.8V | 1700mA | 3000 | 39*25*22 | DIP | 1 |
| Total | 3 models in this series | |||||||
